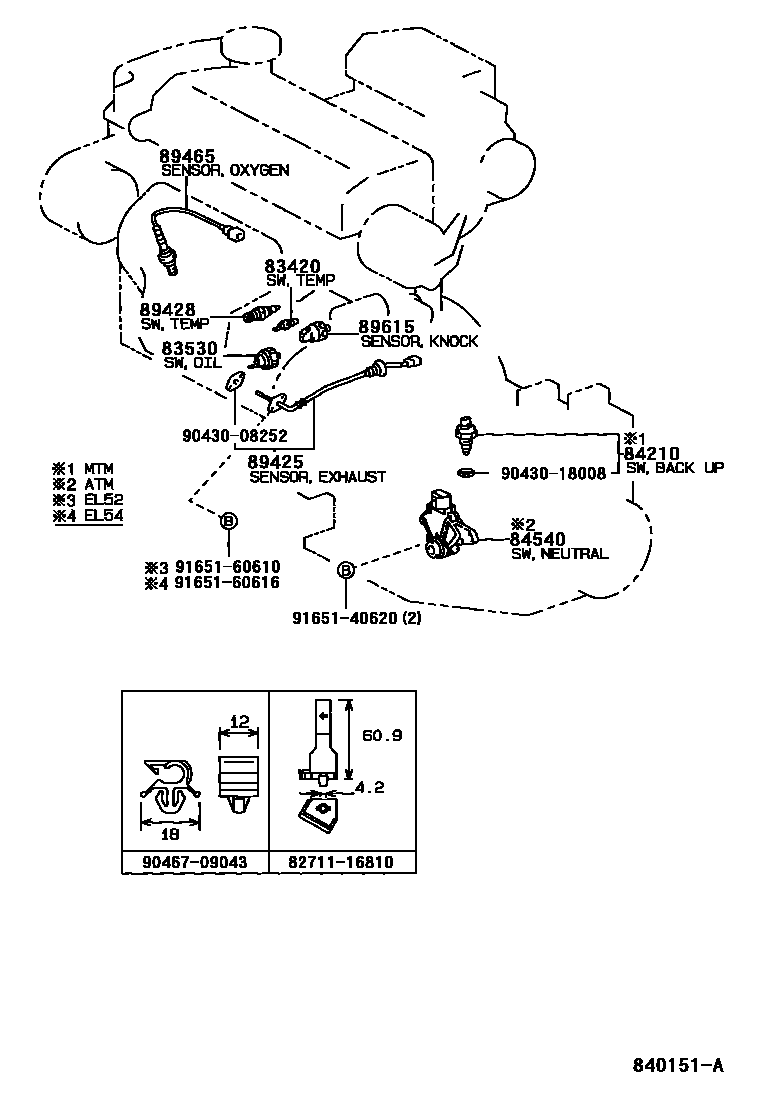

Toyota CYNOS — SWITCH & RELAY & COMPUTER

0001 1����� 0002 1������-� 0003 1���-�,��� ���� 0004 1���-�,��� ���� 0005 1��(�������)��������,�-������ 0006 1��(�������)��������,�-������ 0007 1W/O(�������)��������,�-������0008 1����� ��-,���� 0009 1���-���-� 0010 1���,���,����-��

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL5#199508-199705

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iEL5#199803

main83530-30090iEL5#199508-199803

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL5#..MTM199508

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iEL5#..ATM199508

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-19495iEL54199508-199708

main89425-19545iEL52199508-199708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL5#199508

89465SENSOR, OXYGEN

main89465-10060iEL52199608

main89465-16040iEL52199508-199608

main89465-16090iEL54199508

89615SENSOR, KNOCK CONTROL

main89615-22030iEL5#199508

main89615-22040iEL5#199508

8271116810WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16810

9043008252

main90430-08252

9043018008

main90430-18008

9046709043

main90467-09043

9165140620

main91651-40620

9165160610

main91651-60610

9165160616

main91651-60616

15 parts on this diagram · 10 diagrams in section
