Toyota CYNOS — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

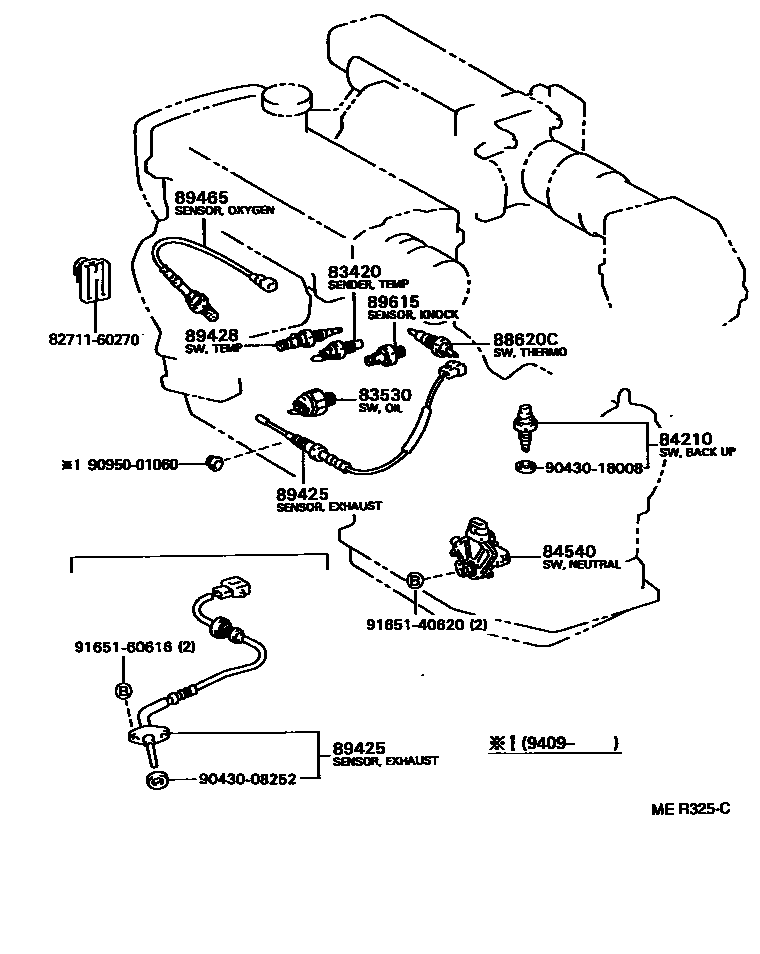

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL44199101-199508

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEL44199208-199411

sub83530-30090

main83530-30080iEL44199101-199208

sub83530-60040

main83530-30090iEL44199411-199508

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL44..MTM199101-199508

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16040iEL44..ATM199101-199409

main84540-16050iEL44..ATM199409-199508

88620CTHERMO SWITCH ASSY

main88620-16021iEL44..ATM199102-199508

main89428-28060iEL44..ATM199101-199102

sub88620-28030

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12210iEL44..ALPHA199105-199109

sub89425-32090

main89425-12250iEL44..ALPHA199101-199105

main89425-12250iEL44..ALPHA199105-199208

main89425-12280iEL44..ALPHA199208-199212

main89425-19435iEL44..BETA199101-199208

main89425-19495iEL44199208-199508

main89425-20190iEL44..ALPHA199208-199212

sub89425-43010

main89425-32090iEL44..ALPHA199109-199208

sub89425-32110

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12150iEL44199208-199212

sub89428-12160

main89428-12160iEL44199208-199212

main89428-12160iEL44199212-199508

main89428-20060iEL44199101-199208

89465SENSOR, OXYGEN

main89465-10020iEL44199101-199508

89615SENSOR, KNOCK CONTROL

main89615-22030iEL44..BETA199106-199508

MATSUSHITA

main89615-22040iEL44..BETA199106-199508

NIPPON DENSO

main89615-35040iEL44..BETA199101-199106

8271160270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60270

9043008252

main90430-08252

9043018008

main90430-18008

9095001060

main90950-01060

9165140620

main91651-40620

9165160616

main91651-60616
