Toyota CYNOS — SPEAKER

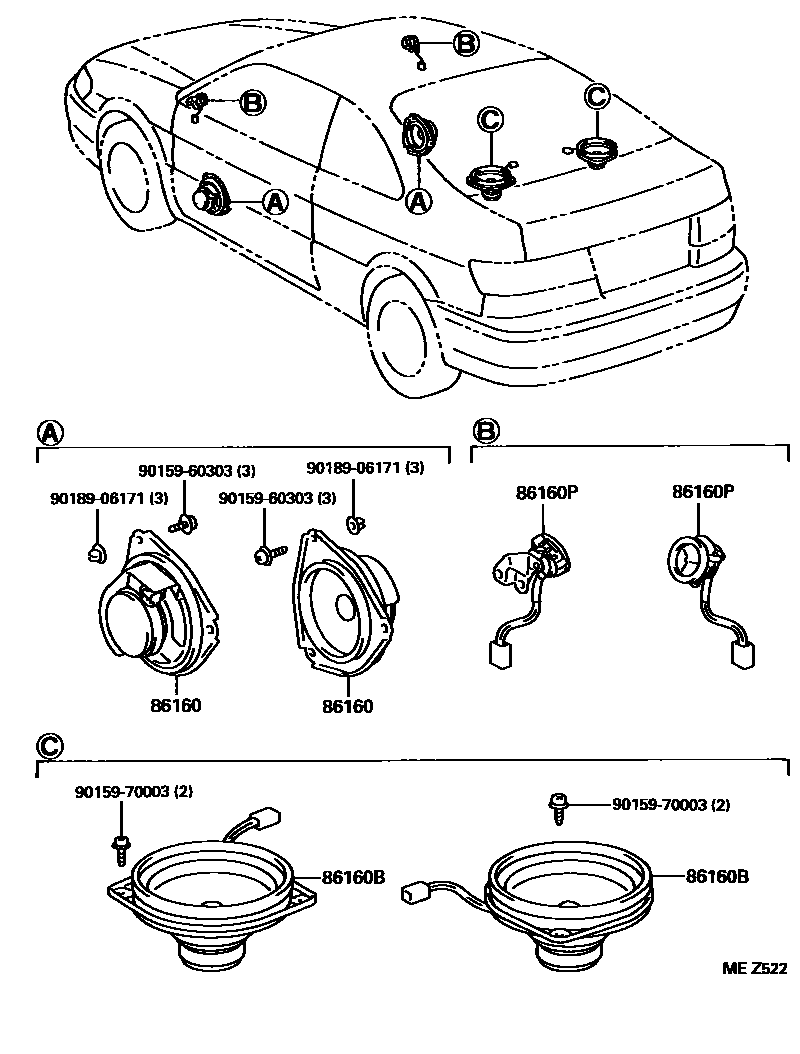

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-16290×2i199508

86160BSPEAKER ASSY, REAR

main86160-16301×2i199508

main86160-2B230×2i199610

86160PSPEAKER ASSY, FRONT NO.2

main86160-16310i199508-199608

main86160-16320i199508-199608

9015960303

main90159-60303

9015970003

main90159-70003

9018906171

main90189-06171

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CYNOS

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota CYNOS. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
