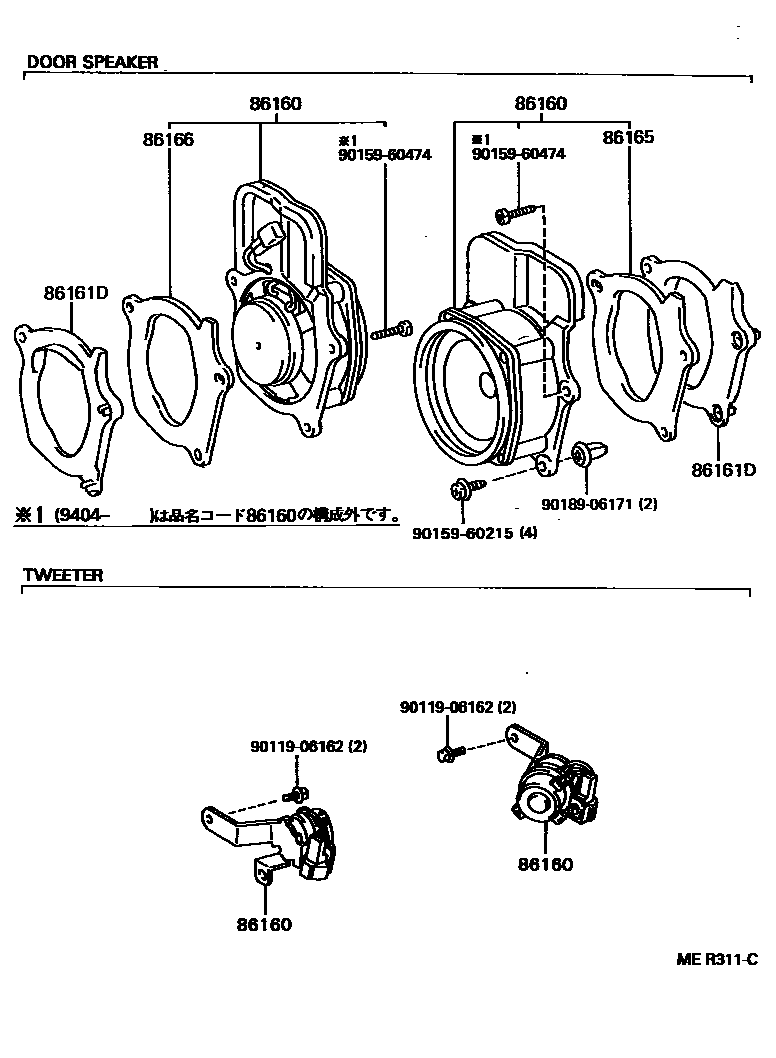

Toyota CYNOS — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-16390i199101-199212

TWEETER,RH

main86160-16400i199212-199508

TWEETER,LH

main86160-16470i199101-199404

main86160-16471i199404-199508

main86160-16480i199101-199404

main86160-16481i199404-199508

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-16010i199101-199508

main86161-16020i199101-199508

86165SEAL, SPEAKER, NO.1

main86165-16020i199101-199508

86166SEAL, SPEAKER, NO.2

main86166-16010i199101-199508

9011906162

main90119-06162

9015960215

main90159-60215

9015960474

main90159-60474

9018906171

main90189-06171

8 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota CYNOS

This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota CYNOS. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, BRACKET, SPEAKER MOUNTING, NO.1, SEAL, SPEAKER, NO.1.
