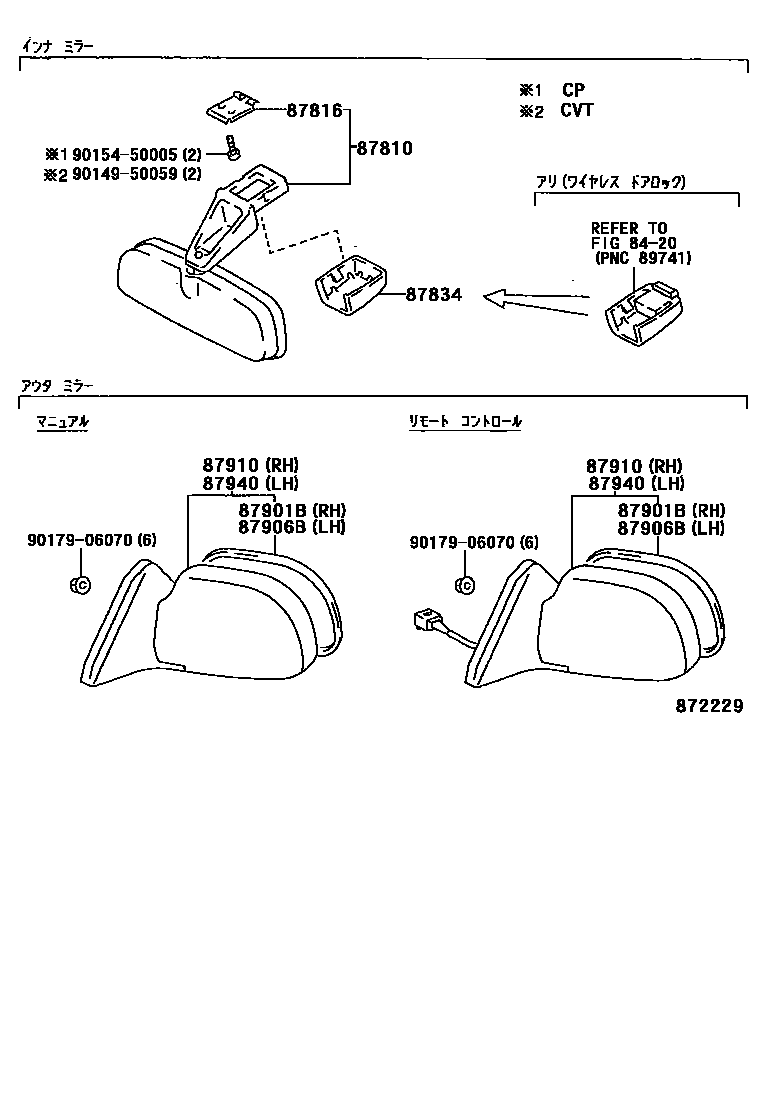

Toyota CYNOS — MIRROR

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

87810MIRROR ASSY, INNER REAR VIEW

main87810-16050-B0i199508

LT.BLUISH GRAY,TRIM1#

main87810-16060-B0i199508

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199508

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B2i199610

SHADOW GRAY,TRIM1#

main87834-16010-B0i199508

LT.BLUISH GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-16750i199508-199712

main87931-1E720i199712-199802

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-16750i199508-199712

main87961-1H050i199712-199802

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16590i199508-199601

main87910-16591i199601-199712

main87910-16700-A0i199508-199601

SUPER WHITE 2,040

main87910-16700-B0i199508-199601

BLUISH SILVER ME.,1A0

main87910-16700-B1i199508-199601

SILVER PEARL ME.,2BR

main87910-16700-C0i199508-199601

BLACK ME,205

main87910-16700-D0i199508-199601

SUPER RED 2,3E5

main87910-16700-H0i199508-199601

TURQUOISE M.M.,756

main87910-16700-J0i199508-199601

PURPLISH BLUE M.M.,8K9

main87910-16701-A0i199601-199712

SUPER WHITE 2,040

main87910-16701-B0i199601-199712

BLUISH SILVER ME.,1A0

main87910-16701-B1i199601-199712

SILVER PEARL ME.,2BR

main87910-16701-C0i199601-199712

BLACK ME,205

main87910-16701-D0i199601-199712

SUPER RED II,3E5

main87910-16701-H0i199601-199712

TURQUOISE M.M.,756

main87910-16701-J0i199601-199712

PURPLISH BLUE M.M.,8K9

main87910-16840-A0i199508-199601

SUPER WHITE 2,040

main87910-16840-B0i199508-199601

BLUISH SILVER ME.,1A0

main87910-16840-B1i199508-199601

SILVER PEARL ME.,2BR

main87910-16840-C0i199508-199601

BLACK ME,205

main87910-16840-D0i199508-199601

SUPER RED 2,3E5

main87910-16840-H0i199508-199601

TURQUOISE M.M.,756

main87910-16840-J0i199508-199601

PURPLISH BLUE M.M.,8K9

main87910-16841-A0i199601-199712

SUPER WHITE 2,040

main87910-16841-B0i199601-199712

BLUISH SILVER ME.,1A0

main87910-16841-B1i199601-199712

SILVER PEARL ME.,2BR

main87910-16841-C0i199601-199712

BLACK ME,205

main87910-16841-D0i199601-199712

SUPER RED II,3E5

main87910-16841-H0i199601-199712

TURQUOISE M.M.,756

main87910-16841-J0i199601-199712

PURPLISH BLUE M.M.,8K9

main87910-16890-C0i199610-199802

BLACK ME,205

main87910-16890-D0i199610-199802

SUPER RED 2,3E5

main87910-1G030-C0i199610-199802

BLACK ME,205

main87910-1G030-D0i199610-199802

SUPER RED 2,3E5

main87910-1G030-F0i199610

main87910-1G090i199712

main87910-1G100-A0i199712

SUPER WHITE 2,040

main87910-1G100-B0i199712

BLUISH SILVER ME.,1A0

main87910-1G100-B1i199712

CRYSTAL SILVER PEARL,1C1 ,2EH

main87910-1G100-C0i199712

BLACK ME,205

main87910-1G100-D0i199712

SUPER RED II,3E5

main87910-1G100-G0i199712

GREEN M.M.,6P6

main87910-1G100-J0i199712

BLUE M.M.,8L5

main87910-1G110-A0i199712

SUPER WHITE 2,040

main87910-1G110-B0i199712

BLUISH SILVER ME.,1A0

main87910-1G110-B1i199712

CRYSTAL SILVER PEARL,1C1 ,2EH

main87910-1G110-C0i199712

BLACK ME,205

main87910-1G110-D0i199712

SUPER RED II,3E5

main87910-1G110-G0i199712

GREEN M.M.,6P6

main87910-1G110-J0i199712

BLUE M.M.,8L5

main87910-1G140-C0i199802

BLACK ME,205

main87910-1G140-D0i199802

SUPER RED II,3E5

main87910-1G150-C0i199802

BLACK ME,205

main87910-1G150-D0i199802

SUPER RED II,3E5

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16830i199508-199601

main87940-16831i199601-199712

main87940-16840-A0i199508-199601

SUPER WHITE 2,040

main87940-16840-B0i199508-199601

BLUISH SILVER ME.,1A0

main87940-16840-B1i199508-199601

SILVER PEARL ME.,2BR

main87940-16840-C0i199508-199601

BLACK ME,205

main87940-16840-D0i199508-199601

SUPER RED 2,3E5

main87940-16840-H0i199508-199601

TURQUOISE M.M.,756

main87940-16840-J0i199508-199601

PURPLISH BLUE M.M.,8K9

main87940-16841-A0i199601-199712

SUPER WHITE 2,040

main87940-16841-B0i199601-199712

BLUISH SILVER ME.,1A0

main87940-16841-B1i199601-199712

SILVER PEARL ME.,2BR

main87940-16841-C0i199601-199712

BLACK ME,205

main87940-16841-D0i199601-199712

SUPER RED II,3E5

main87940-16841-H0i199601-199712

TURQUOISE M.M.,756

main87940-16841-J0i199601-199712

PURPLISH BLUE M.M.,8K9

main87940-16890-A0i199508-199601

SUPER WHITE 2,040

main87940-16890-B0i199508-199601

BLUISH SILVER ME.,1A0

main87940-16890-B1i199508-199601

SILVER PEARL ME.,2BR

main87940-16890-C0i199508-199601

BLACK ME,205

main87940-16890-D0i199508-199601

SUPER RED 2,3E5

main87940-16890-H0i199508-199601

TURQUOISE M.M.,756

main87940-16890-J0i199508-199601

PURPLISH BLUE M.M.,8K9

main87940-16891-A0i199601-199712

SUPER WHITE 2,040

main87940-16891-B0i199601-199712

BLUISH SILVER ME.,1A0

main87940-16891-B1i199601-199712

SILVER PEARL ME.,2BR

main87940-16891-C0i199601-199712

BLACK ME,205

main87940-16891-D0i199601-199712

SUPER RED II,3E5

main87940-16891-H0i199601-199712

TURQUOISE M.M.,756

main87940-16891-J0i199601-199712

PURPLISH BLUE M.M.,8K9

main87940-1G050-C0i199610-199802

BLACK ME,205

main87940-1G050-D0i199610-199802

SUPER RED 2,3E5

main87940-1G080-C0i199610-199802

BLACK ME,205

main87940-1G080-D0i199610-199802

SUPER RED 2,3E5

main87940-1G080-F0i199610

main87940-1G140i199712

main87940-1G150-A0i199712

SUPER WHITE 2,040

main87940-1G150-B0i199712

BLUISH SILVER ME.,1A0

main87940-1G150-B1i199712

CRYSTAL SILVER PEARL,1C1 ,2EH

main87940-1G150-C0i199712

BLACK ME,205

main87940-1G150-D0i199712

SUPER RED II,3E5

main87940-1G150-G0i199712

GREEN M.M.,6P6

main87940-1G150-J0i199712

BLUE M.M.,8L5

main87940-1G160-A0i199712

SUPER WHITE 2,040

main87940-1G160-B0i199712

BLUISH SILVER ME.,1A0

main87940-1G160-B1i199712

CRYSTAL SILVER PEARL,1C1 ,2EH

main87940-1G160-C0i199712

BLACK ME,205

main87940-1G160-D0i199712

SUPER RED II,3E5

main87940-1G160-G0i199712

GREEN M.M.,6P6

main87940-1G160-J0i199712

BLUE M.M.,8L5

main87940-1G190-C0i199802

BLACK ME,205

main87940-1G190-D0i199802

SUPER RED II,3E5

main87940-1G200-C0i199802

BLACK ME,205

main87940-1G200-D0i199802

SUPER RED II,3E5

9014950059

main90149-50059

9015450005

main90154-50005

9017906070

main90179-06070

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota CYNOS

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota CYNOS. Key components include: WIRELESS DOOR LOCK, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
