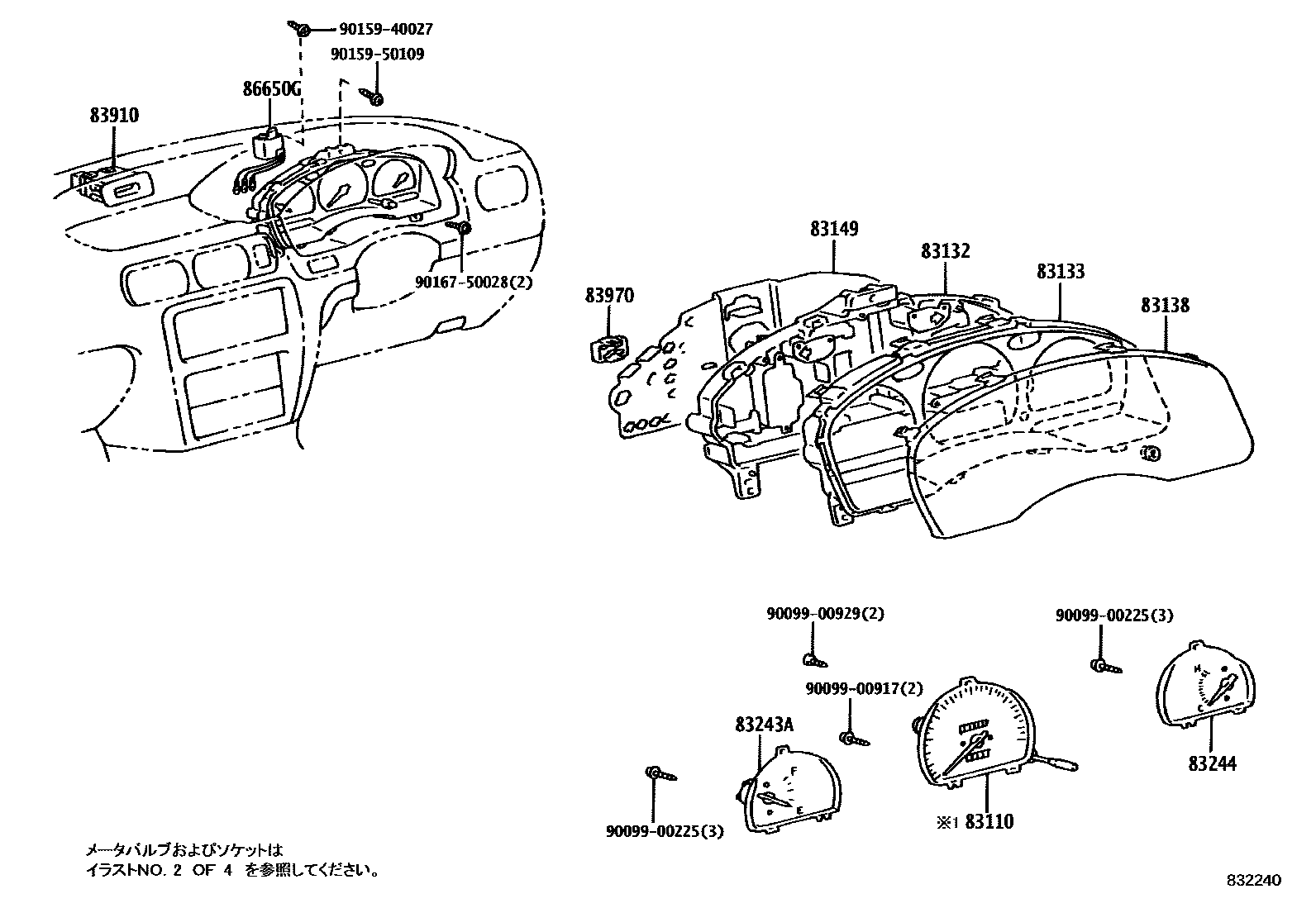

Toyota CYNOS — METER
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83149PLATE, METER CIRCUIT
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83910CLOCK ASSY
GRAY,TRIM1#
83970BUZZER ASSY, REVERSE WARNING
86650GBUZZER ASSY
9009900225
main90099-00225
9009900917
main90099-00917
9009900929
main90099-00929
9015940027
main90159-40027
9015950109
main90159-50109
9016750028
main90167-50028
16 parts on this diagram · 6 diagrams in section
METER for Toyota CYNOS
This section contains 34 genuine Toyota parts for the METER system of the Toyota CYNOS. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
