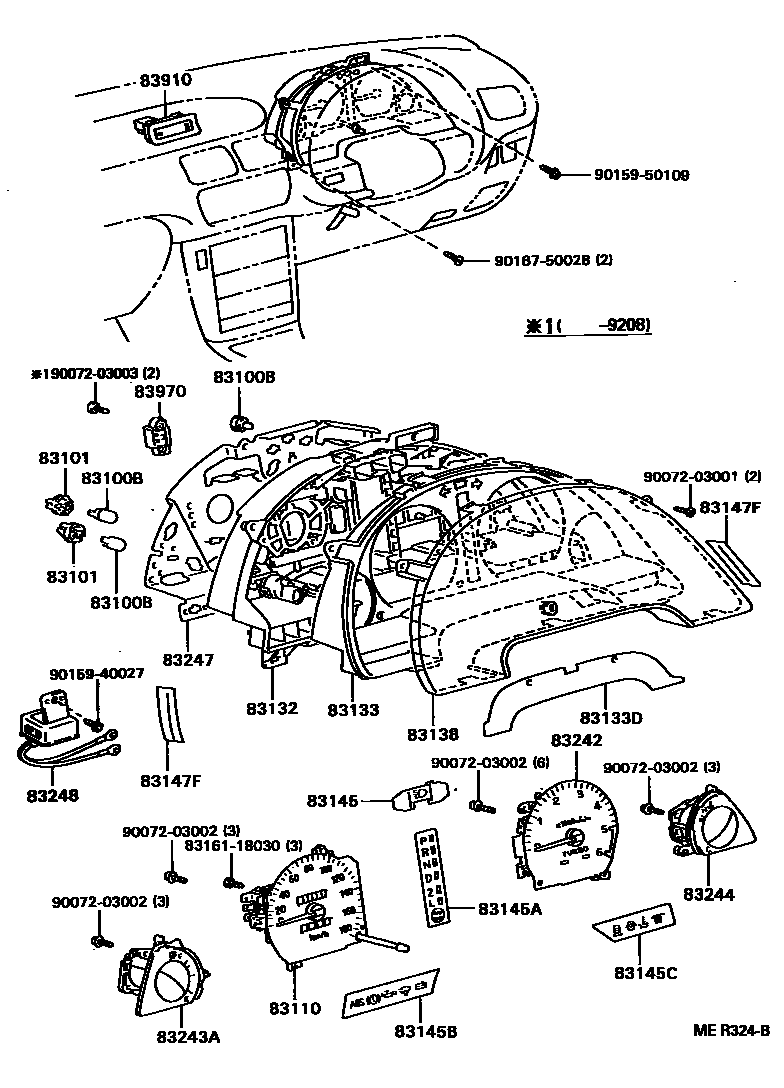

Toyota CYNOS — METER
83100BBULB, COMBINATION METER, NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W,GREEN CAP
83110SPEEDOMETER ASSY
83133PLATE, COMBINATION METER, NO.1
83133DPLATE, DECORATION
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
83145CLENS, METER, NO.4
83147FPACKING, METER
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83910CLOCK ASSY
BLACK,TRIM2#
BLACK,TRIM2#
83970BUZZER ASSY, REVERSE WARNING
8316118030CASE, COMBINATION METER MIRROR, NO.1
main83161-18030
9007203001
main90072-03001
9007203002
main90072-03002
9007203003
main90072-03003
9015940027
main90159-40027
9015950109
main90159-50109
9016750028
main90167-50028
26 parts on this diagram · 2 diagrams in section
METER for Toyota CYNOS
This section contains 30 genuine Toyota parts for the METER system of the Toyota CYNOS. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
