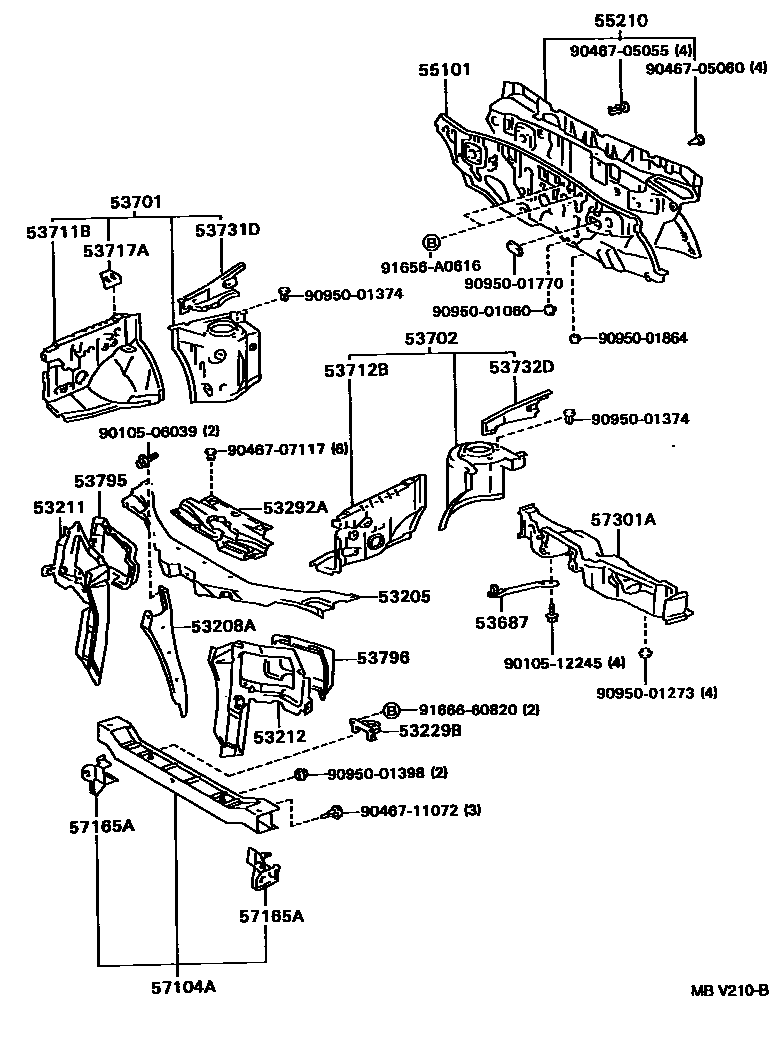

Toyota CYNOS — FRONT FENDER APRON & DASH PANEL

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-16100iEL44199101-199205

sub53205-16101

main53205-16101iEL44199205-199508

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-16080iEL44199101-199508

53211SUPPORT, RADIATOR, RH

main53211-16110iEL44199101-199508

53212SUPPORT, RADIATOR, LH

main53212-16110iEL44199101-199508

53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-16040iEL44199101-199508

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-16010iEL44199101-199508

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-10030iEL44199101-199508

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16170iEL44199101-199212

sub53701-16190

main53701-16190iEL44199212-199408

sub53701-16191

main53701-16191iEL44199408-199508

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16100iEL44199101-199212

sub53702-16130

main53702-16120iEL44199212-199408

sub53702-16121

main53702-16121iEL44199408-199508

53711BAPRON, FRONT FENDER, FRONT RH

main53711-16130iEL44199101-199205

sub53711-16140

main53711-16140iEL44199205-199408

sub53711-16141

main53711-16141iEL44199408-199508

53712BAPRON, FRONT FENDER, FRONT LH

main53712-16060iEL44199101-199205

sub53712-16080

main53712-16070iEL44199205-199408

sub53712-16071

main53712-16071iEL44199408-199508

53717APLATE, FENDER APRON

main53717-10040iEL44199101-199508

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-16030iEL44199101-199508

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-16030iEL44199101-199508

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-16010iEL44199101-199508

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-16010iEL44199101-199508

55101PANEL SUB-ASSY, DASH

main55101-16370iEL44..MTM199101-199508

main55101-16380iEL44..ATM199101-199508

sub55101-16370

sub90333-40001

sub90950-01409

55210INSULATOR ASSY, DASH PANEL

main55210-16100iEL44199101-199508

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-16900iEL44199101-199508

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-16030iEL44199101-199508

main57166-16020iEL44199101-199508

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-10070iEL44199101-199404

sub57301-10071

main57301-10071iEL44199404-199508

9010506039

main90105-06039

9010512245

main90105-12245

9046705055

main90467-05055

9046705060

main90467-05060

9046707117

main90467-07117

9046711072

main90467-11072

9095001060

main90950-01060

9095001273

main90950-01273

9095001374

main90950-01374

9095001398

main90950-01398

9095001770

main90950-01770

9095001864

main90950-01864

91656A0616

main91656-A0616

9166660820

main91666-60820

35 parts on this diagram · 1 diagram in section
