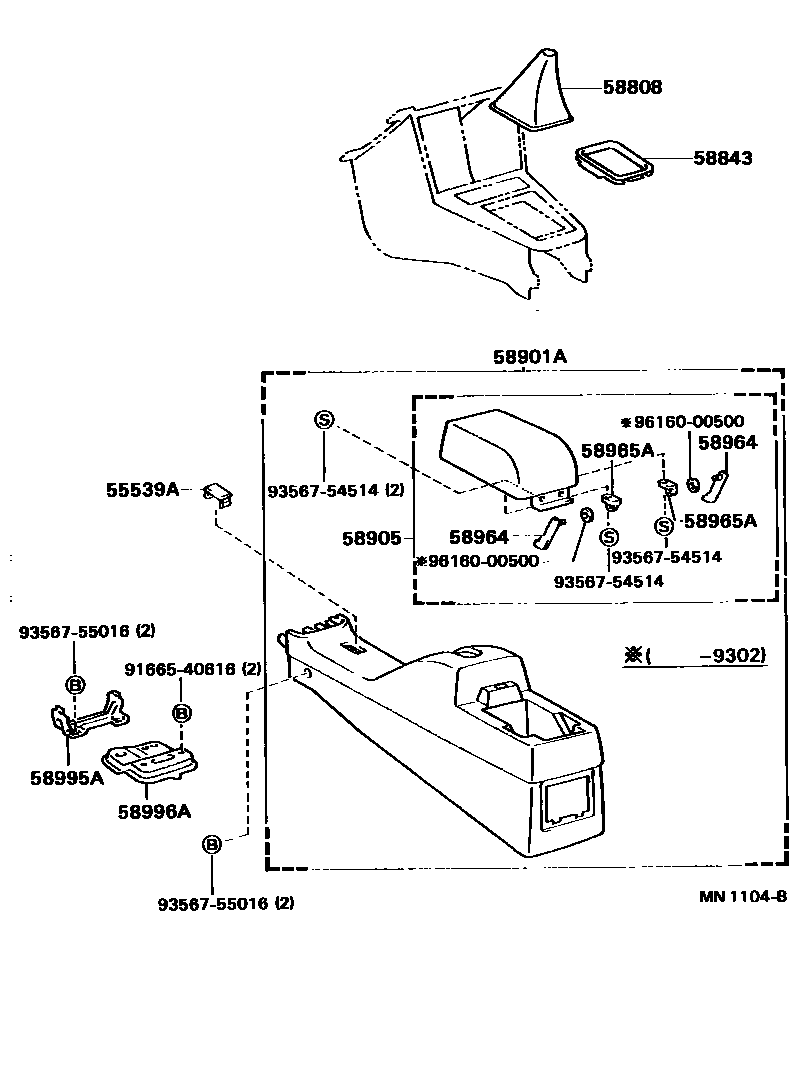

Toyota CYNOS — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-16040-01iEL44..ALPHA;EL44..MTM..BETA199101-199212

BLACK,TRIM2#

sub55539-16040

main55539-16040-22iEL44..ALPHA;EL44..MTM..BETA199212-199508

BLACK,TRIM2#

sub55539-16040

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16090-01iEL44..MTM199101-199212

BLACK,TRIM2#

sub58808-16090

main58808-16090-22iEL44..MTM199212-199508

BLACK,TRIM2#

sub58808-16090

58843BEZEL, SHIFTING HOLE

main58843-16030-01iEL44..ATM199101-199212

BLACK,TRIM2#

sub58843-16030

main58843-16030-22iEL44..ATM199212-199508

BLACK,TRIM2#

sub58843-16030

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16090-01iEL44199101-199212

BLACK,TRIM2#

sub58901-16090

main58901-16090-22iEL44199212-199508

BLACK,TRIM2#

sub58901-16090

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-16030-01iEL44199101-199212

BLACK,TRIM2#

sub58905-16030

main58905-16030-C0iEL44199212-199508

BLACK,TRIM2#

sub58905-16030

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iEL44199302-199305

RH

main58964-16010iEL44199305-199508

RH

main58964-30040iEL44199101-199302

main58964-32040iEL44199101-199302

main58965-12040iEL44199302-199305

LH

main58965-16010iEL44199305-199508

LH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iEL44199101-199508

main58965-20020iEL44199101-199508

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16060iEL44199101-199508

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-16060iEL44199101-199508

9166540616

main91665-40616

9356754514

main93567-54514

9356755016

main93567-55016

9616000500

main96160-00500

13 parts on this diagram · 1 diagram in section
