Toyota CURREN — WINDSHIELD WASHER

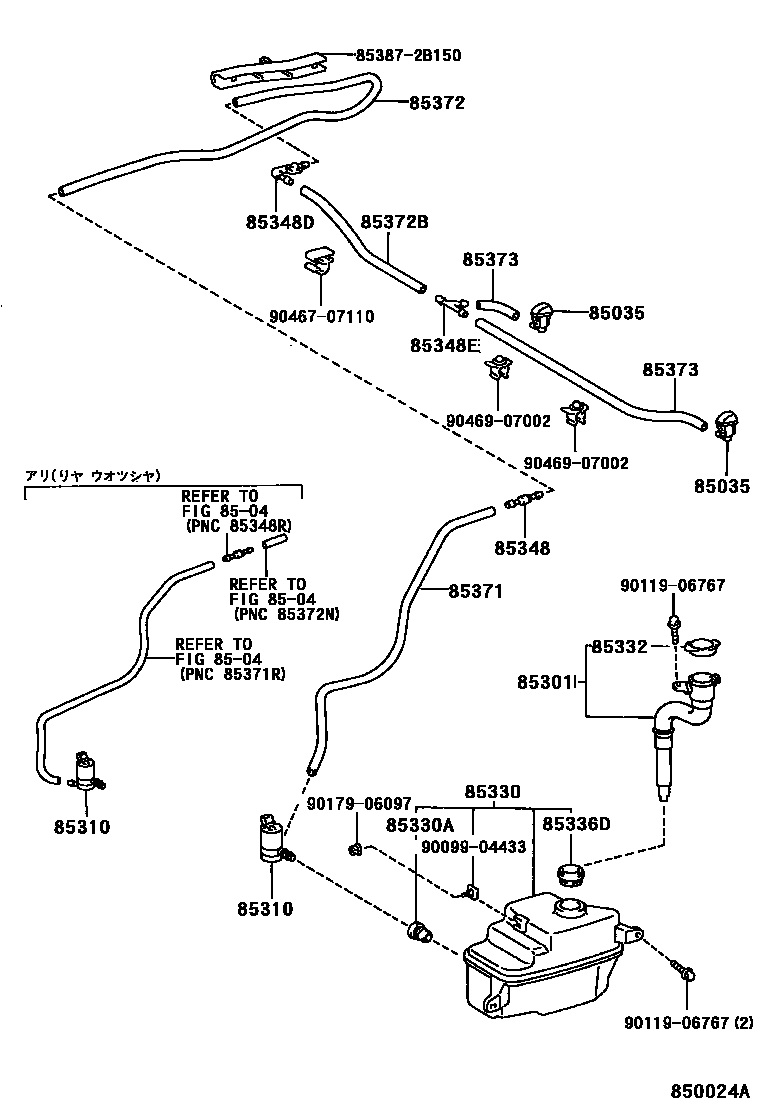

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2i199408-199509

main85381-20060×2i199402-199408

main85381-20110-A1×2i199509

WHITE PM,049

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-20020i199402-199606

main85301-20021i199606

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210i199402

main85330-12280i199509

85330JAR ASSY, WINDSHIELD WASHER

main85315-20520i199402

main85315-20560i199402

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199402

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i199402-199606

main85316-33050i199606

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i199402

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i199402

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160i199402

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85348-14390i199402

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001i199402

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i199402

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199402

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i199402

853872B150CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-2B150

9009904433

main90099-04433

9011906767

main90119-06767

9017906097

main90179-06097

9046707110

main90467-07110

9046907002

main90469-07002

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CURREN

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CURREN. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
