Toyota CURREN — STANDARD TOOL

09110JACK ASSY

main09111-20110i199402-199410

main09111-20140i199410-199712

09113HANDLE, JACK

main09113-20030i199402-199712

09120BAG, TOOL

main09120-12040i199402-199712

main09120-16030i199712

09130PLIERS

main99913-11500i199712

09135DRIVER, SCREW

main99915-10700i199402-199712

09141SPANNER

main99914-10810i199402-199712

main99914-11214i199402-199712

09150WRENCH, HUB NUT BOX

main09150-40010i199712

09153WRENCH, REAR COMBINATION LAMP

main09153-74030i199402-199712

09184STOPPER, WHEEL

main09184-00010i199402-199712

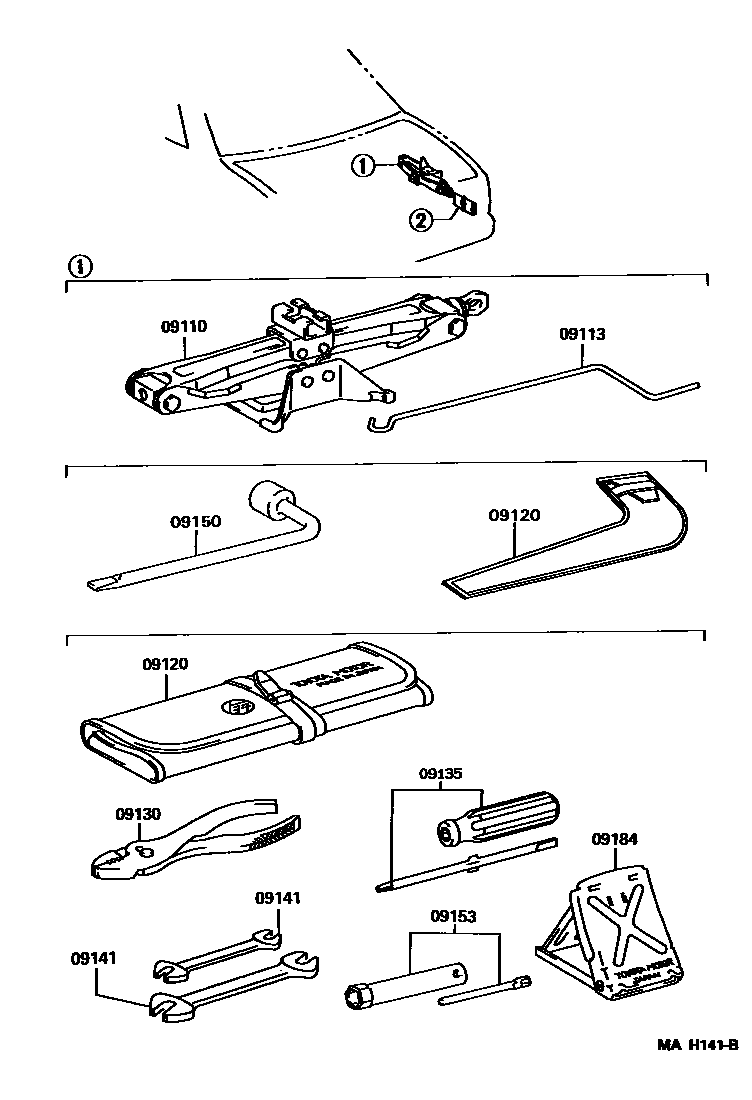

9 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota CURREN

This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota CURREN. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
