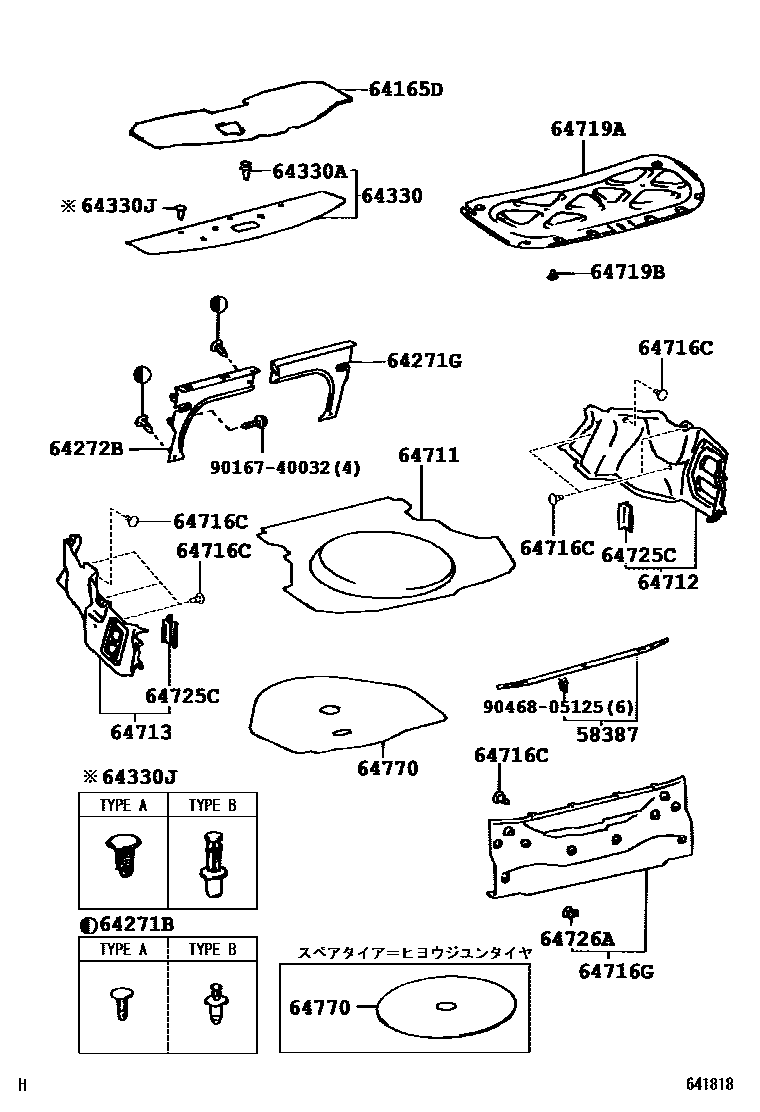

Toyota CURREN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20050-C0i199402

BLACK,TRIM1#

64165DCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20070i199509

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-06016-C0×2i199402

main90467-08182-C0i199402

64271GBOARD, ROOM PARTITION, RH

main64271-20260-C0i199402

BLACK,TRIM1#

64272BBOARD, ROOM PARTITION, LH

main64272-20260-C0i199402

BLACK,TRIM1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2B830-B0i199402-199509

main64330-2B840-B0i199402-199509

SHADOW GRAY,TRIM1#

main64330-2D040-B0i199509

main64330-2D050-B0i199509

main64330-2D060-B0i199509

main64330-2D070-B0i199509

SHADOW GRAY,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-09153×2i199402

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07042-C0×2i199509

main90467-07073-C0×5i199402-199509

BLACK,TRIM1#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-2B020-C0i199402

main64711-2B030-C0i199402

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20210-C0i199402

BLACK,TRIM1#

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20210-C0i199402

BLACK,TRIM1#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07146×12i199402

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20510-C0i199402

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20060-C0i199402

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07146×13i199402

64725CRETAINER, LUGGAGE COMPARTMENT COVER

main64725-20050-C1×2i199402

BLACK,TRIM1#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-C0×6i199402

BLACK,TRIM1#

64770COVER ASSY, SPARE WHEEL

main64770-20230i199402

main64770-20240i199402

9016740032

main90167-40032

9046805125

main90468-05125

20 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CURREN

This section contains 20 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CURREN. Key components include: PLATE, REAR FLOOR FINISH, COVER, UPPER BACK PANEL HOLE, NO.1, CLIP(FOR ROOM PARTITION BOARD), BOARD, ROOM PARTITION, RH, BOARD, ROOM PARTITION, LH.
