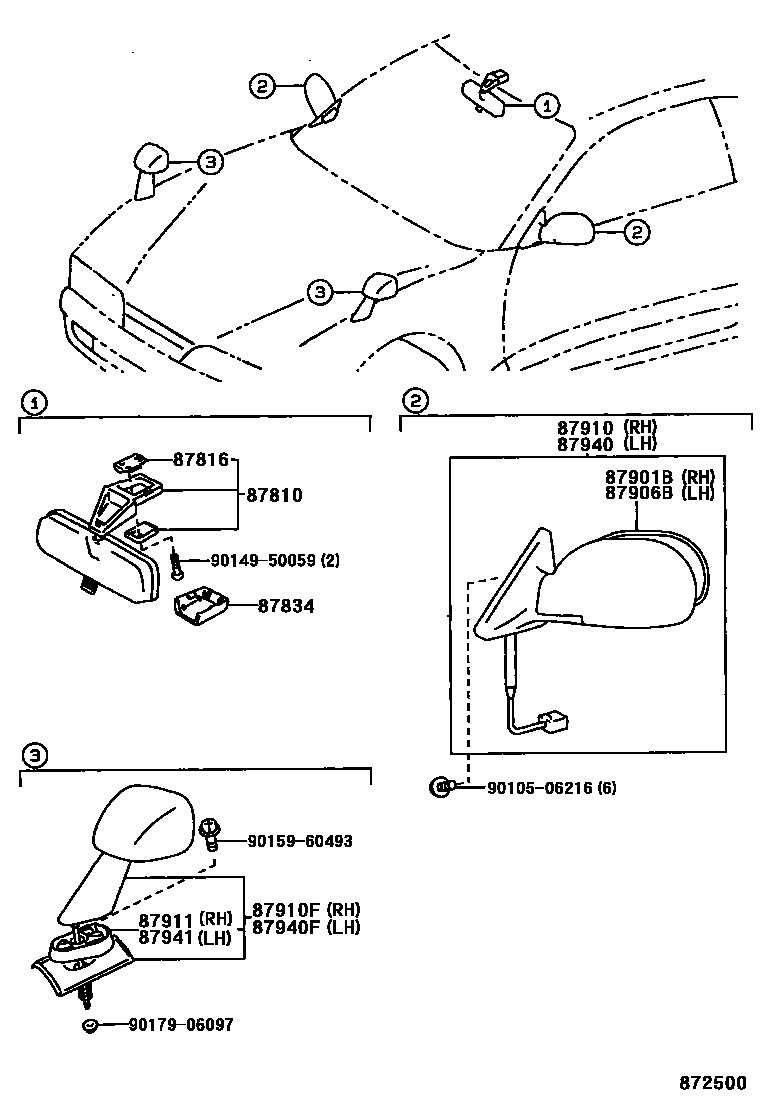

Toyota CURREN — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.GRAY,TRIM1#
GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
WHITE PM,049
SILVER ME,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 4,3L2
DK.GREEN MICA,6M1
GRAISH TURQUOISE M.M,753
DK.BLUE M.M.,8L2
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
DK.GREEN MICA,6M1
GRAISH TURQUOISE M.M,753
87910FMIRROR ASSY, FENDER, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
DK.GREEN MICA,6M1
GRAISH TURQUOISE M.M,753
SUPER WHITE 2,040
WHITE PM,049
SILVER ME,199
DK.BL.GRAY ME,183
BLACK,202
SUPER RED 4,3L2
DK.GREEN MICA,6M1
GRAISH TURQUOISE M.M,753
DK.BLUE M.M.,8L2
87940FMIRROR ASSY, FENDER, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9010506216
main90105-06216
9014950059
main90149-50059
9015960493
main90159-60493
9017906097
main90179-06097
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota CURREN
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota CURREN. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
