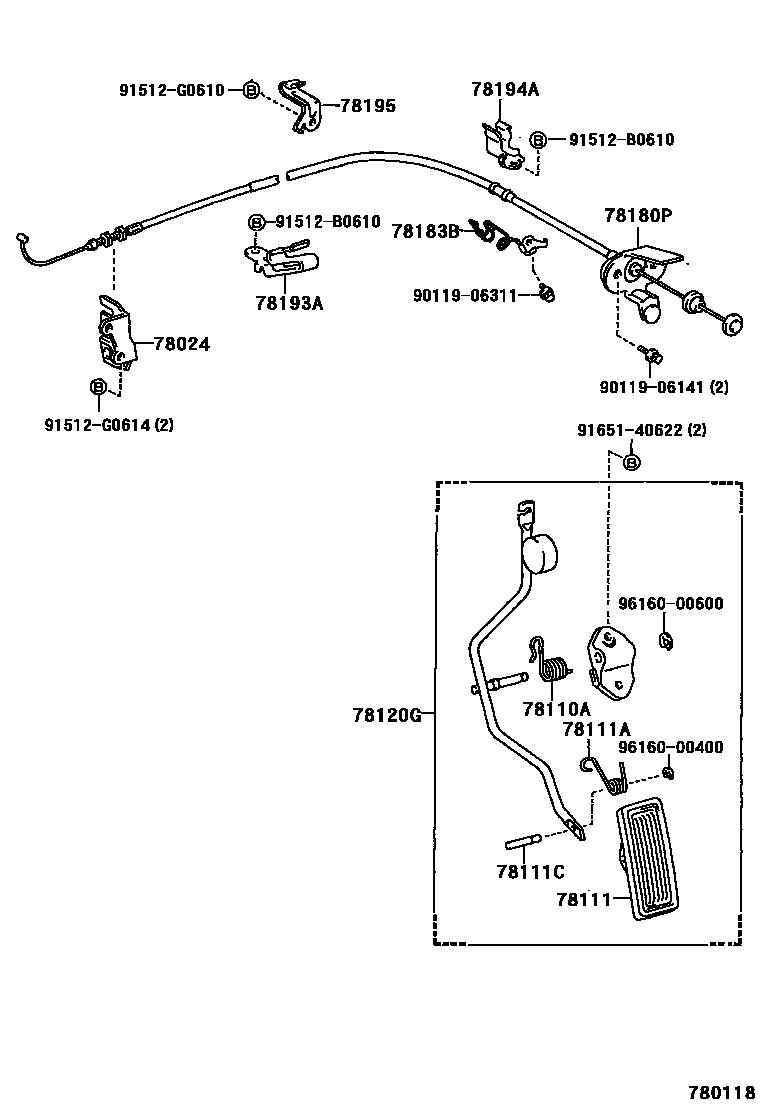

Toyota CURREN — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78195BRACKET, ACCELERATOR LINK
9011906141
main90119-06141
9011906311
main90119-06311
91512B0610
main91512-B0610
91512G0610
main91512-G0610
91512G0614
main91512-G0614
9165140622
main91651-40622
9616000400
main96160-00400
9616000600
main96160-00600
19 parts on this diagram · 6 diagrams in section
ACCELERATOR LINK for Toyota CURREN
This section contains 28 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CURREN. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
