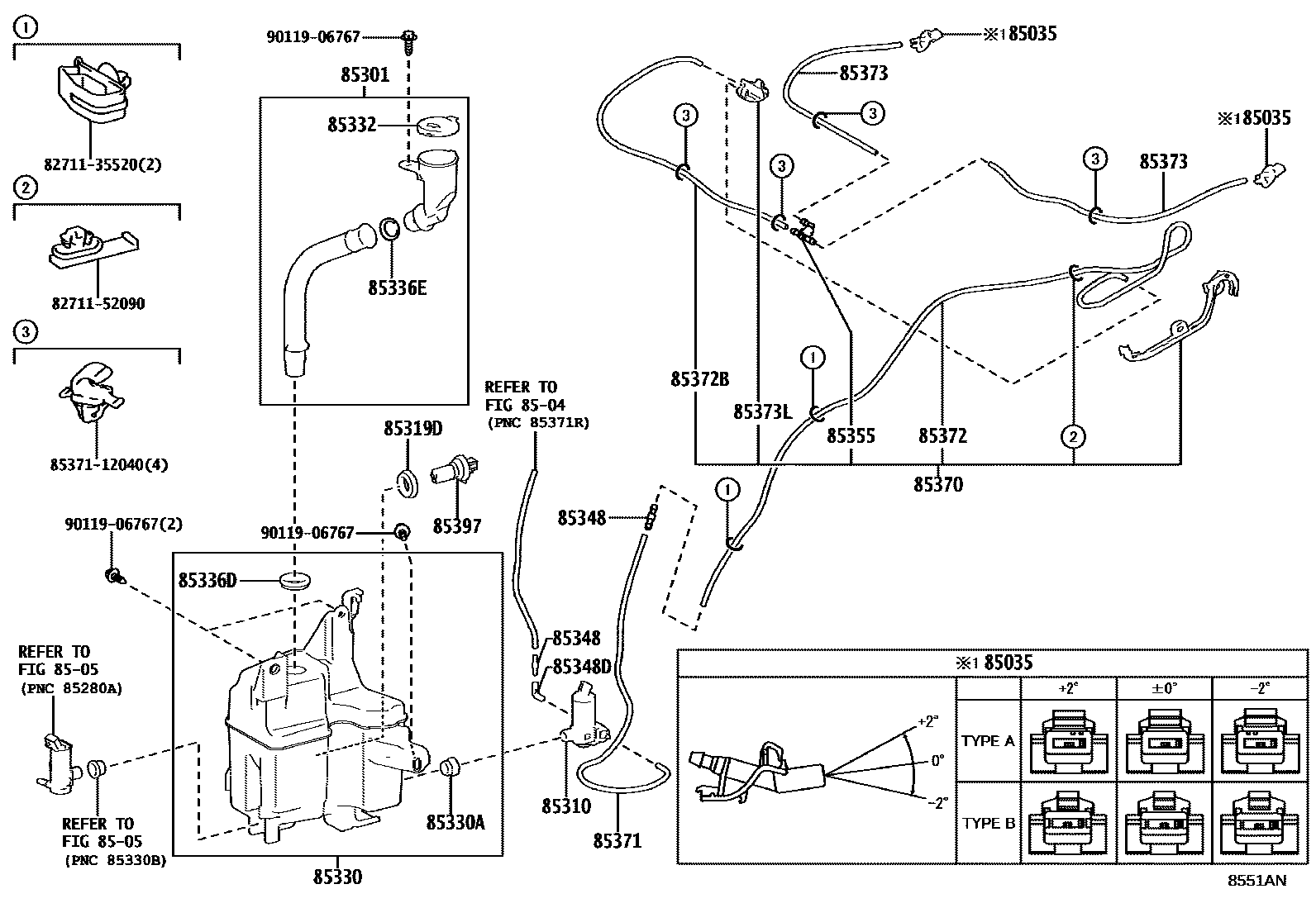

Toyota CROWN — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47090×2iAZSH38202406

ANGLE 0,TYPE A

main85381-47100×2iAZSH38202406

ANGLE -2,TYPE A

main85381-47110×2iAZSH38202406

ANGLE +2,TYPE A

main85381-78030×2iAZSH38202406

ANGLE 0,TYPE B

main85381-78040×2iAZSH38202406

ANGLE -2,TYPE B

main85381-78050×2iAZSH38202406

ANGLE +2,TYPE B

8504

8505

85301INLET SUB-ASSY, WASHER

main85301-30190iAZSH38202406

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040iAZSH38202406

85319DPACKING, FRONT WASHER

main85319-33230iAZSH38202406

85330JAR ASSY, WINDSHIELD WASHER

main85355-30170iAZSH38202406

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iAZSH38202406

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iAZSH38202406

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160×2iAZSH38202406

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iAZSH38202406

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2iAZSH38202406

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAZSH38202406

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAZSH38202406

85370HOSE ASSY, WINDSHIELD WASHER

main85370-30490iAZSH38202406

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH38202406

L=1450(*H,L=630)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAZSH38202406

L=1450(*H,L=1390)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAZSH38202406

L=1450(*H,L=780)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iAZSH38202406

L=1450(*H,L=510)

85373LGROMMET, WASHER

main85373-30030iAZSH38202406

85397SWITCH ASSY,LEVEL WARNING

main85397-52100iAZSH38202406

8271135520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35520

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

25 parts on this diagram · 1 diagram in section
