Toyota CROWN — SPEAKER

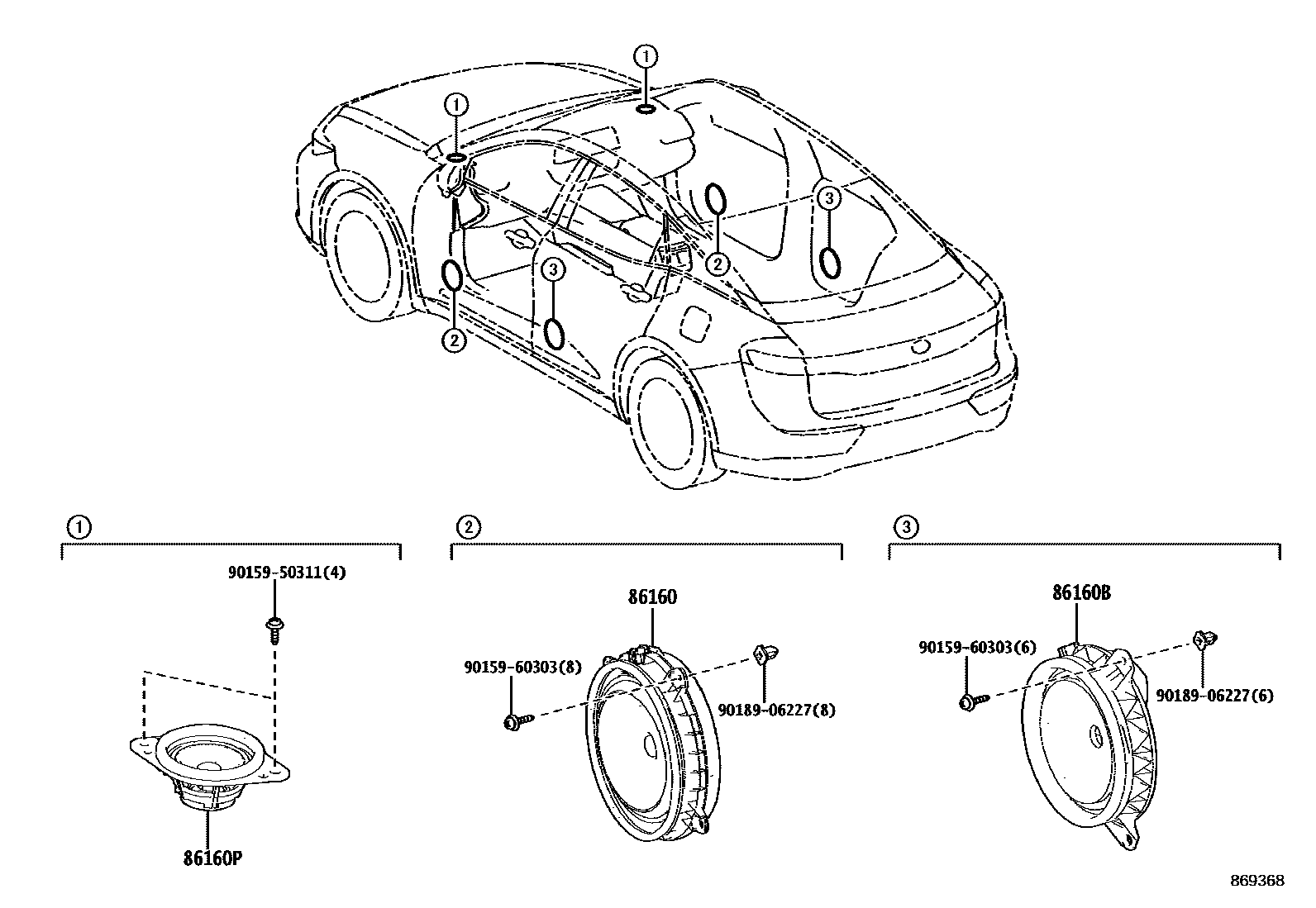

0001 16SPEAKER 0002 111SPEAKER 0003 1EQUALIZER & MICROPHONE

86160SPEAKER ASSY, FRONT NO.1

main86160-30F70×2iAZSH35202301

main86160-33A10×2iTZSH35202301

86160BSPEAKER ASSY, REAR

main86160-30E00×2iAZSH35202301

main86160-62020×2iTZSH35202301

86160PSPEAKER ASSY, FRONT NO.2

main86160-28830×2iAZSH35202301

main86160-42200×2iTZSH35202301

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

6 parts on this diagram · 3 diagrams in section
