Toyota CROWN — HEATING & AIR CONDITIONING - COMPRESSOR

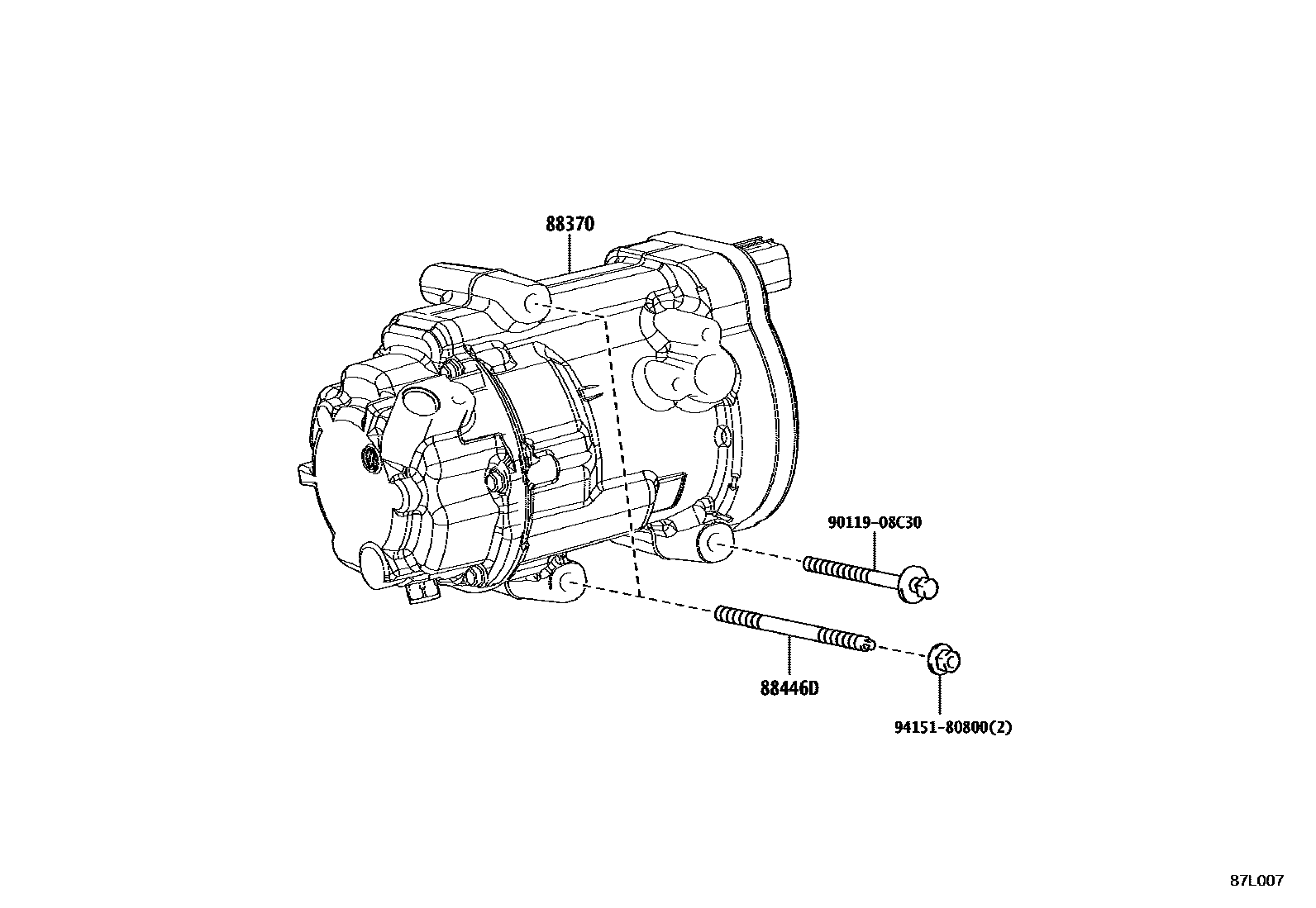

Parts diagram

88370COMPRESSOR ASSY, W/MOTOR

main88370-33051i202301-202406

main88370-42081i202406

main88370-48210i202301

88446DBOLT, COOLER

main88899-44010×2i202301

9011908C30

main90119-08C30

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section
