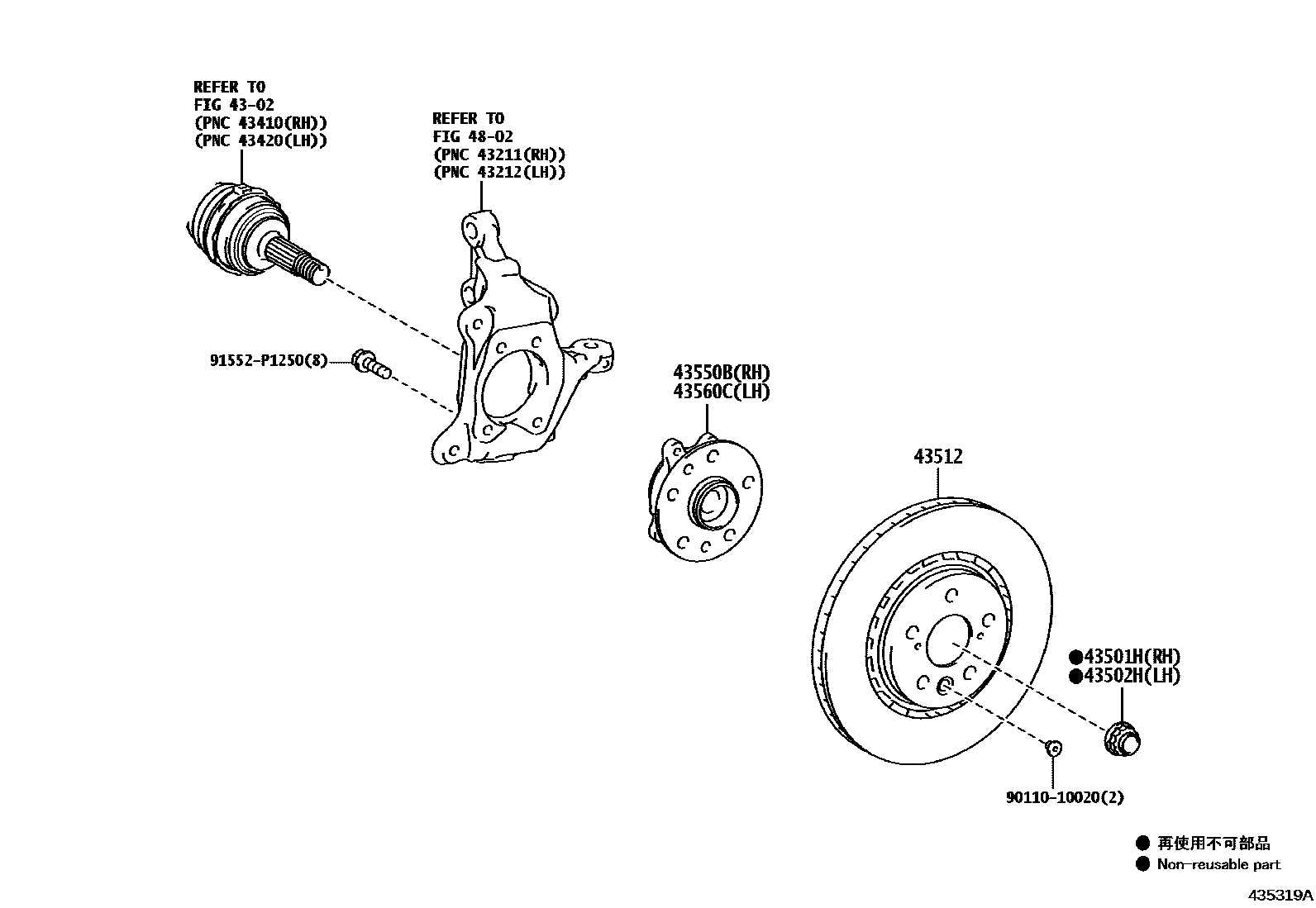

Toyota CROWN — FRONT AXLE HUB

4302

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAZSH35,TZSH35202301

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAZSH35,TZSH35202301

43512DISC, FRONT

main43512-78010×2iAZSH35202301

main43512-78020×2iTZSH35202301

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-48040iAZSH35,TZSH35202301

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-48040iAZSH35,TZSH35202301

4802

9011010020

main90110-10020

91552P1250

main91552-P1250

9 parts on this diagram · 1 diagram in section
