Toyota CROWN — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-30420iAZSH38..M202406-202409

main74230-30420-B1iAZSH38..G202406-202409

DARK GRAY METAL,TRIM0#,2#,4#

main74230-30421-B1iAZSH38202410

DARK GRAY METAL,TRIM2#,4#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-30410iAZSH38..M202406-202409

main74240-30410-B1iAZSH38..G202406-202409

DARK GRAY METAL,TRIM0#,2#,4#

main74240-30411-B1iAZSH38202406

DARK GRAY METAL,TRIM2#,4#

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-30220iAZSH38..M202406-202409

main74270-30220-B1iAZSH38..G202406-202409

DARK GRAY METAL,TRIM0#,2#,4#

main74270-30221-B1iAZSH38202410

DARK GRAY METAL,TRIM2#,4#

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-30220iAZSH38..M202406-202409

main74280-30220-B1iAZSH38..G202406-202409

DARK GRAY METAL,TRIM0#,2#,4#

main74280-30221-B1iAZSH38202410

DARK GRAY METAL,TRIM2#,4#

9046705172

main90467-05172

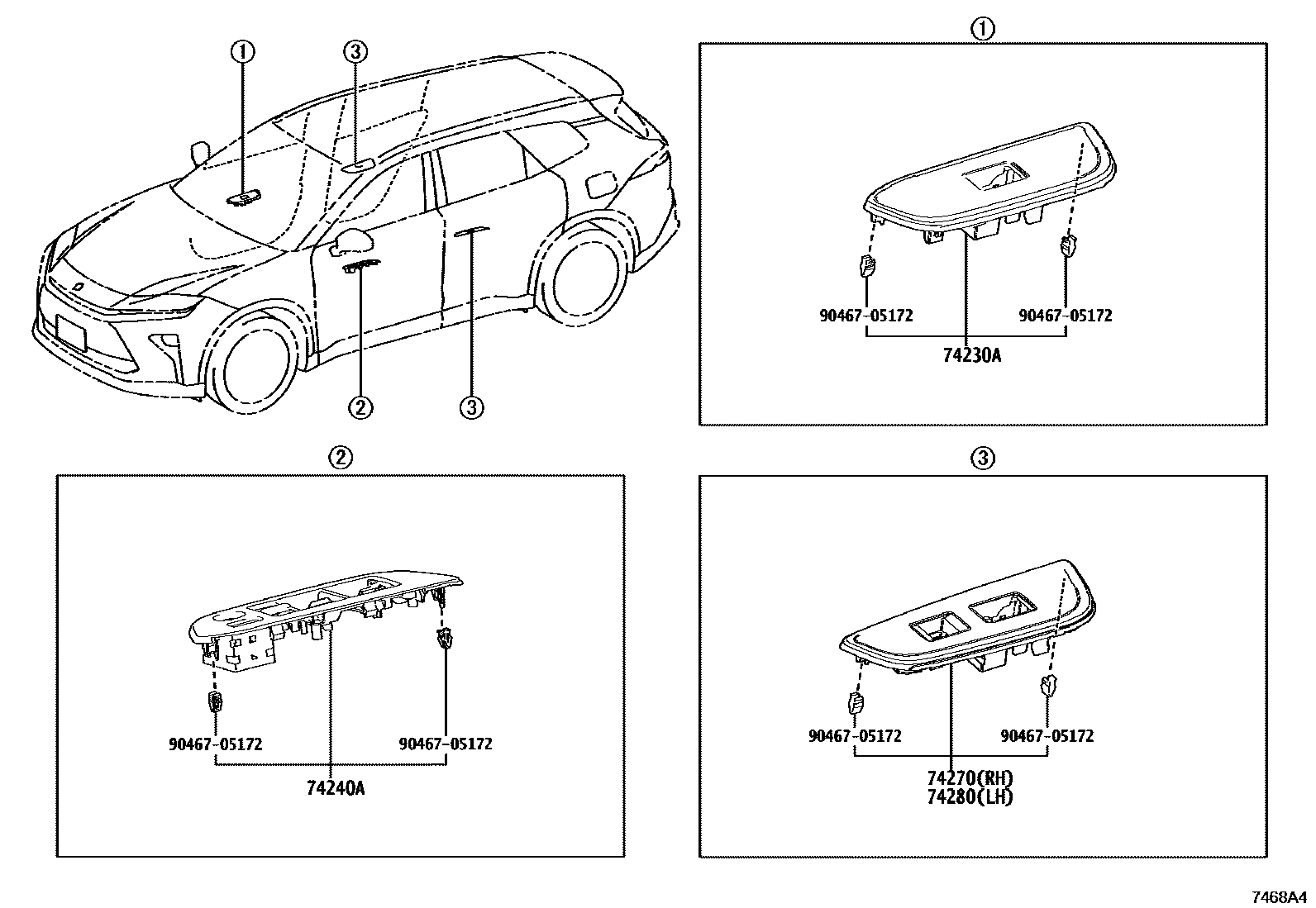

5 parts on this diagram · 2 diagrams in section
