Toyota CROWN — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30260iGS13#,LS13#,MS13#,YS130198709-198908

main85110-30261iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

85160LINK ASSY, WINDSHIELD WIPER

main85160-30180iGS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,HTWC,SPC)198709-199110

main85160-30200iGS130,136,LS130,136,YS130..STD198709-199110

main85160-30220iGS130,MS130,YS130..(DLX,SDX)..(LPEFI,LPG,TWLPG)198709-199110

main85160-30240iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

85164ROD, WINDSHIELD WIPER LINK, NO.1

main85164-30180iLS136..DLX198709-199110

main85164-30200iGS130,136,LS130,136,YS130..STD198709-199110

85165AROD, W/CASE

main85165-30180iLS136..DLX198709-199110

main85165-30200iGS130,MS130,YS130..(DLX,SDX)..(LPEFI,LPG,TWLPG)198709-199110

main85165-30240iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iGS13#,LS13#,MS13#,YS130198709-198808

main90176-08040×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198808-199110

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-30370iGS131..SPC198709-198802

main85190-30371iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(HT,WG)..(ROY,ROYG,SALEX,SPE,SSL)198911-199110

main85190-30390iGS13#,LS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)198709-198911

main85190-30391iGS130,136,LS130,136,YS130..STD198911-199110

main85190-30440iGS130,131,LS130,131,MS135,137,UZS131..(HT,WG)..(ROY,ROYG,SALEX,SPE,SSL)198802-198911

main85190-30441iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(HT,WG)..(ROY,ROYG,SALEX,SPE,SSL)198911-199110

main85190-30450iGS130..WG..SDX;GS13#,LS13#,MS13#,UZS131,YS130..(SED,V)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC)198802-198911

main85190-30451iGS131,LS131..SED;GS130,136,JZS131,LS130,136,MS13#,UZS131,YS130..(DLX,ROY,ROYG,SDX)..(DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG)..NOB198911-199110

main85190-30460iGS130..WG..SDX;GS13#,LS13#,MS13#,UZS131,YS130..(SED,V)..(DLX,ROY,ROYG,SAL,SALEX,SDX)198802-198911

main85190-30461iGS131,LS131..SED;GS130,136,JZS131,LS130,136,MS13#,UZS131,YS130..(DLX,ROY,ROYG,SDX)..(DSL,HTWC,LPEFI,TD,TDE,TWC,TWLPG)..NOB198911-199110

main85210-30170iGS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-198911

main85210-30171iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198911-199110

main85210-30190iGS13#,LS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)198709-198911

main85210-30191iGS130,136,LS130,136,YS130..STD198911-199110

main85210-30230iGS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-198911

main85210-30231iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198911-199110

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16580iGS13#198709-198809

main85220-16650iGS130,MS130,YS130..(DLX,SDX)..(LPEFI,LPG,TWLPG)198709-198911

main85220-16700iGS13#,LS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)198709-198911

main85220-16701iGS13#,JZS13#,LS13#,MS13#,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)198911-199110

main85220-16770iGS130,MS130,YS130..(DLX,SDX)..(LPEFI,LPG,TWLPG)198709-198911

main85220-16771iGS130,YS130..(DLX,SDX)..(LPEFI,TWLPG)198911-199110

sub85222-23060

main85220-1A080iGS130,136,LS130,136,YS130..STD198911-199110

sub85220-16461

main85220-22680iGS130,MS130,YS130..LPEFI,LPG,TWLPG198809-199003

main85220-24040×2iGS130,MS130,YS130..LPEFI,LPG,TWLPG198809-199003

main85220-32560iYS130..DLX;GS13#,LS13#,MS13#198809-198908

main85220-32610iGS130,136,LS130,136..STD;GS130,MS130,YS130..LPEFI,LPG,TWLPG198709-198911

main85220-32670iGS13#,LS13#,MS135,137,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC)198709-198911

main85220-32671iGS13#,JZS13#,LS13#,MS13#,UZS131..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)198911-199110

main85220-3A010iGS130,MS130,YS130..LPEFI,LPG,TWLPG198809-199003

main85220-3A080iGS130,136,LS130,136..STD;GS130,YS130..LPEFI,TWLPG198911-199110

sub85212-23040

main85220-40040×2iMS130,YS130..LPG198809-198909

main85291-16010iYS130..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131199003-199110

main85291-22020×2iGS130,YS130..LPEFI,TWLPG199003-199110

main85291-24010iGS130,YS130..LPEFI,TWLPG199003-199110

main85291-30010iGS130,YS130..LPEFI,TWLPG199003-199110

sub85291-43020

main85291-32020iYS130..DLX;GS13#,JZS13#,LS13#,MS13#,UZS131199003-199110

main85291-40010×2iGS130,YS130..LPEFI,TWLPG199003-199110

sub85291-43020

85221BLADE, WINDSHIELD WIPER

main85221-22110iGS130,136,LS130,136..STD;GS130,YS130..LPEFI,TWLPG198908-199110

main85221-22120iMS130,YS130..DLX,SDX198709-198908

sub85221-30120

main85221-30130iMS130,YS130..DLX,SDX198709-198908

sub85214-24H90

main85221-30140iGS130,MS130,YS130..(DLX,SDX)..(LPEFI,LPG,TWLPG)198709-199110

sub85223-3H011

main85221-30160iGS130,MS130,YS130..(DLX,SDX)..(LPEFI,LPG,TWLPG)198709-199110

sub85223-22730

main85221-40040iGS130,136,LS13#,YS130..STD198709-198908

sub85214-24H90

8519730370

main85197-30370

9011906369

main90119-06369

9011906370

main90119-06370

9338516012

main93385-16012

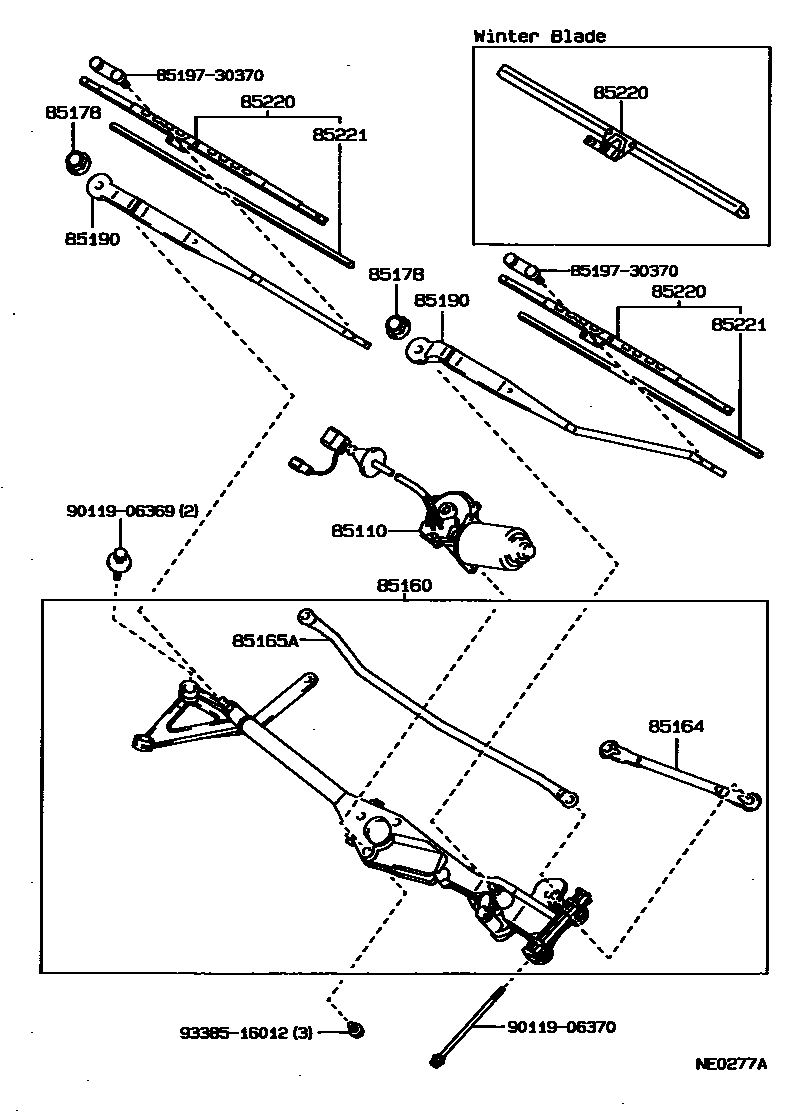

12 parts on this diagram · 1 diagram in section
