Toyota CROWN — WINDSHIELD WIPER

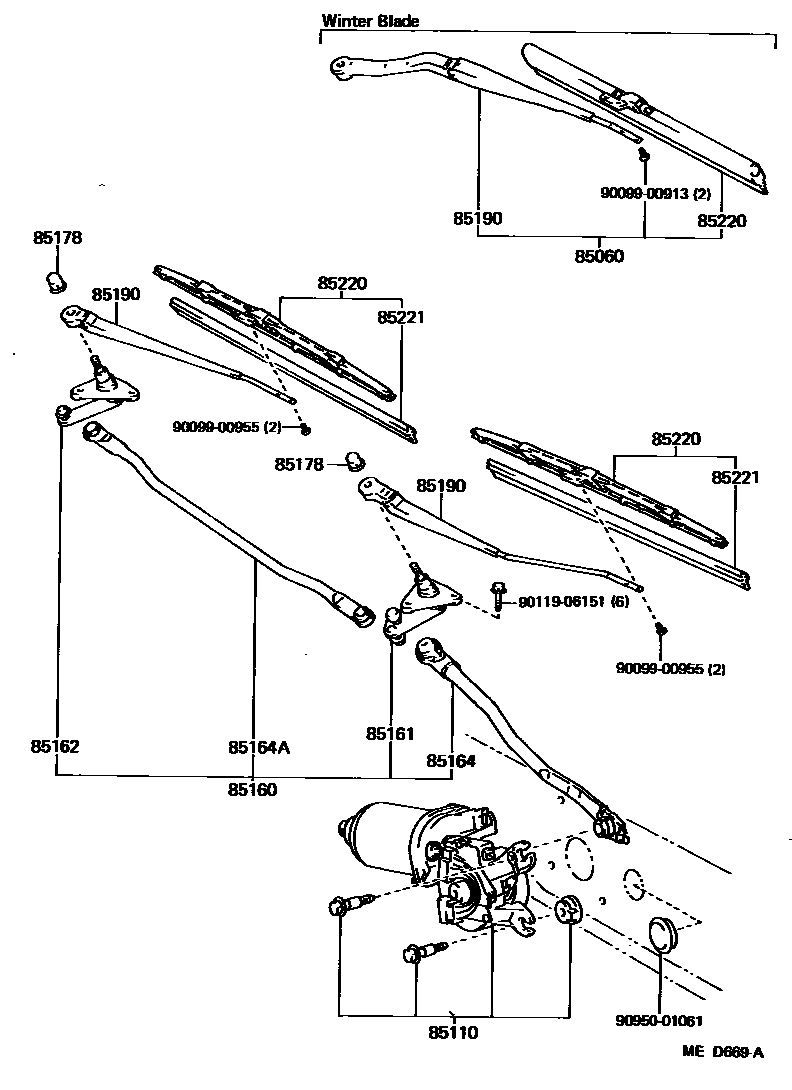

Parts diagram
85060ARM AND BLADE ASSY, WINDSHIELD WIPER
main85060-30360i198308-198708
RH,WINTER BLADE,LOCK BACK
main85070-30150i198308-198708
LH,WINTER BLADE,LOCK BACK
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-30210i198509-198708
SEMI-CONCEALED
main85110-30220i198308-198708
FULL-CONCEALED
85160LINK ASSY, WINDSHIELD WIPER
main85160-30130i198308-198509
SEMI-CONCEALED
main85160-30140i198308-198708
FULL-CONCEALED
main85160-30150i198308-198708
FULL-CONCEALED
85161PIVOT, WINDSHIELD WIPER LINK, NO.1
main85161-30130i198308-198509
SEMI-CONCEALED
main85161-30150i198308-198708
FULL-CONCEALED
85162PIVOT, WINDSHIELD WIPER LINK, NO.2
main85162-30130i198308-198708
FULL-CONCEALED
85164ROD, WINDSHIELD WIPER LINK, NO.1
main85164-30130i198509-198708
SEMI-CONCEALED
main85164-30150i198308-198708
FULL-CONCEALED
85164AROD, WINDSHIELD WIPER LINK, NO.2
main85165-30130i198509-198708
SEMI-CONCEALED
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-08029×2i198308-198505
main90176-08033×2i198505-198708
85190ARM ASSY, WINDSHIELD WIPER
main85190-30310i198308-198708
RH,SEMI-CONCE.,(LOCK BACK)
main85190-30320i198308-198708
RH,FULL-CONCEALED
main85210-30110i198308-198708
LH,SEMI-CONCE.,(LOCK BACK)
main85210-30120i198308-198708
LH,FULL-CONCEALED
85220BLADE ASSY, WINDSHIELD WIPER
main85220-12620i198607-198708
LH,WINTER BLADE
main85220-16320i198308-198408
LH,SEMI-CONCEALED
main85220-16330i198308-198506
LH,FULL-CONCEALED
main85220-16460i198408-198506
LH,SEMI-CONCEALED
main85220-16500i198506-198708
LH,FULL-CONCEALED
main85220-16520i198506-198708
LH,SEMI-CONCEALED
main85220-16580i198607-198708
RH,WINTER BLADE
main85220-30360i198308-198607
RH,WINTER BLADE
main85220-30370i198308-198607
LH,WINTER BLADE
main85220-32310i198411-198506
RH,FULL-CONCEALED
main85220-32400i198411-198506
RH,SEMI-CONCEALED
main85220-32440i198506-198708
RH,FULL-CONCEALED
main85220-32470i198506-198708
RH,SEMI-CONCEALED
85221BLADE, WINDSHIELD WIPER
main85221-30110i198308-198506
RH
main85221-30120i198308-198506
LH
main85221-30130i198506-198708
RH
main85221-40040i198506-198708
LH
9009900913
main90099-00913
9009900955
main90099-00955
9011906151
main90119-06151
9095001061
main90950-01061

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CROWN

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CROWN. Key components include: ARM AND BLADE ASSY, WINDSHIELD WIPER, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, PIVOT, WINDSHIELD WIPER LINK, NO.1, PIVOT, WINDSHIELD WIPER LINK, NO.2.
