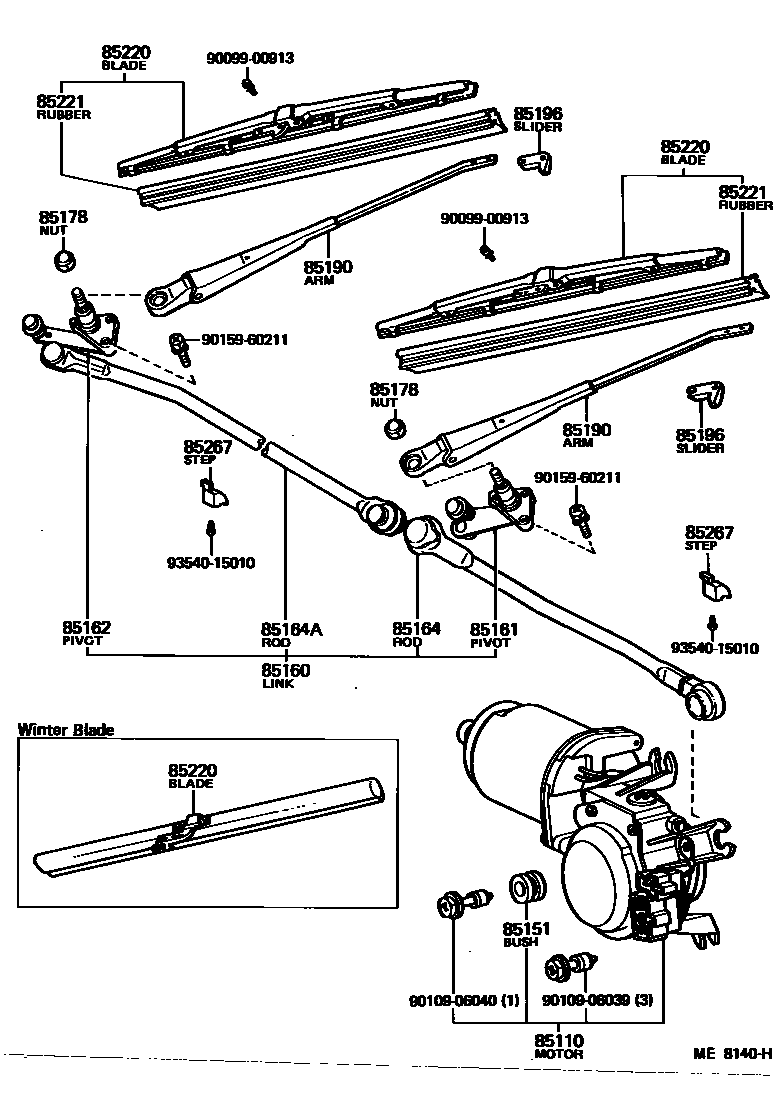

Toyota CROWN — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30130iMS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX197909-198008

main85110-30131iMS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX198008-198108

sub85110-22191

main85110-30140iLS110,MS110,112..ROY,SAL,SDX,SPE197909-198008

main85110-30142iLS110,MS110,112..ROY,SAL,SDX,SPE198008-198108

main85110-30170iGS117,LS117,MS117198108-198307

main85110-30180iGS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198108-198307

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-22070×4iGS11#,LS11#,MS11#,RS110197909-198307

85160LINK ASSY, WINDSHIELD WIPER

main85160-30100iLS11#,MS11#,RS110197909-198006

main85160-30101iGS11#,LS11#,MS11#..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD)..(CBR,DSL,EFI,TBO,TD,TDE,TWC)198108-198307

main85160-30120iLS110,MS110..(3HC,4H,4HC)..(BTP,DLX,STD)198006-198108

TAXI

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

main85161-30100iLS11#,MS11#,RS110197909-198006

main85161-30101iGS11#,LS11#,MS11#..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD)..(CBR,DSL,EFI,TBO,TD,TDE,TWC)198108-198307

main85161-30120iMS110..4H..(BTP,DLX)..CBR198108-198307

TAXI

85162PIVOT, WINDSHIELD WIPER LINK, NO.2

main85162-30100iLS11#,MS11#,RS110197909-198006

main85162-30101iGS11#,LS11#,MS11#..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD)..(CBR,DSL,EFI,TBO,TD,TDE,TWC)198108-198307

main85162-30120iLS110,MS110..(3HC,4H,4HC)..(BTP,DLX,STD)198006-198108

TAXI

85164ROD, WINDSHIELD WIPER LINK, NO.1

main85164-30100iLS11#,MS11#,RS110197909-198006

main85164-30120iLS110,MS110..(3HC,4H,4HC)..(BTP,DLX,STD)198006-198108

TAXI

85164AROD, WINDSHIELD WIPER LINK, NO.2

main85165-30100iLS11#,MS11#,RS110197909-198006

main85165-30120iLS110,MS110..(3HC,4H,4HC)..(BTP,DLX,STD)198006-198108

TAXI

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08017×2iLS11#,MS11#,RS110197909-198108

main90176-08025×2iGS110,LS11#,MS11#,RS110198108-198110

main90176-08029×2iGS11#,LS11#,MS11#,RS110198110-198307

85190ARM ASSY, WINDSHIELD WIPER

main85190-30180iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198002

DRIVER SIDE

main85190-30181iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198002-198108

DRIVER SIDE

main85190-30190iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

ASSIST SIDE

main85190-30200iLS110,RS110..TAX197909-198002

DRIVER SIDE,COLD SPEC

main85190-30201iLS110,RS110..TAX198002-198108

DRIVER SIDE,COLD SPEC

main85190-30210iLS110,RS110..TAX197909-198108

ASSIST SIDE,COLD SPEC

main85190-30270iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

DRIVER SIDE

main85190-30280iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198307

ASSIST SIDE

main85190-30290iLS110,RS110..TAX198108-198307

DRIVER SIDE,COLD SPEC

main85190-30300iLS110,RS110..TAX198108-198307

ASSIST SIDE,COLD SPEC

85196SLIDER, WIPER ARM

main85196-30010iLS110,MS110,112..ROY,SAL,SDX,SPE197909-198108

DRIVER SIDE

main85196-30020iLS110,MS110,112..ROY,SAL,SDX,SPE197909-198108

ASSIST SIDE

main85196-30030iGS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198108-198301

DRIVER SIDE

main85196-30031iGS110,LS110,111,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198301-198307

DRIVER SIDE

main85196-30040iGS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198108-198301

ASSIST SIDE

main85196-30041iGS110,LS110,111,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198301-198307

ASSIST SIDE

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16180iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198301-198306

DRIVER SIDE

main85220-16190iLS110,RS110..TAX198301-198306

ASSIST SIDE

main85220-16220iGS110,LS110,111,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198301-198307

ASSIST SIDE

sub85220-16330

main85220-16230iLS110,RS110..TAX198301-198307

DRIVER SIDE

main85220-16320iLS110,RS110..TAX198306-198307

ASSIST SIDE

sub85220-16321

main85220-16350iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198306-198307

DRIVER SIDE

main85220-24040×2iGS11#,LS11#,MS11#,RS110198108-198307

WINTER BLADE(COLD SPEC)

sub85291-24010

main85220-30110×2iLS11#,MS11#,RS110197909-198108

WINTER BLADE(COLD SPEC)

sub85220-20080

main85220-30171iLS110,RS110..TAX197909-198108

ASSIST SIDE

sub85220-14280

main85220-30181iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

DRIVER SIDE

main85220-30220iGS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198108-198207

DRIVER SIDE

main85220-30230iLS110,RS110..TAX198108-198301

ASSIST SIDE

sub85220-16321

main85220-30240iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD198207-198301

DRIVER SIDE

85221BLADE, WINDSHIELD WIPER

main85221-12190×2iGS11#,LS11#,MS11#,RS110198207-198301

sub85223-12690

main85221-14170×2iLS11#,MS11#,RS110197909-198108

sub85221-14H90

main85221-30080×2iGS110,LS11#,MS11#,RS110198108-198207

sub85223-12690

main85221-30100×2iGS11#,LS11#,MS11#,RS110198301-198306

main85221-30120×2iGS11#,LS11#,MS11#,RS110198306-198307

sub85221-40040

85267STEP, LINEAR WIPER

main85267-30010×2iGS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198108-198307

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9015960211

main90159-60211

9354015010

main93540-15010

18 parts on this diagram · 1 diagram in section
