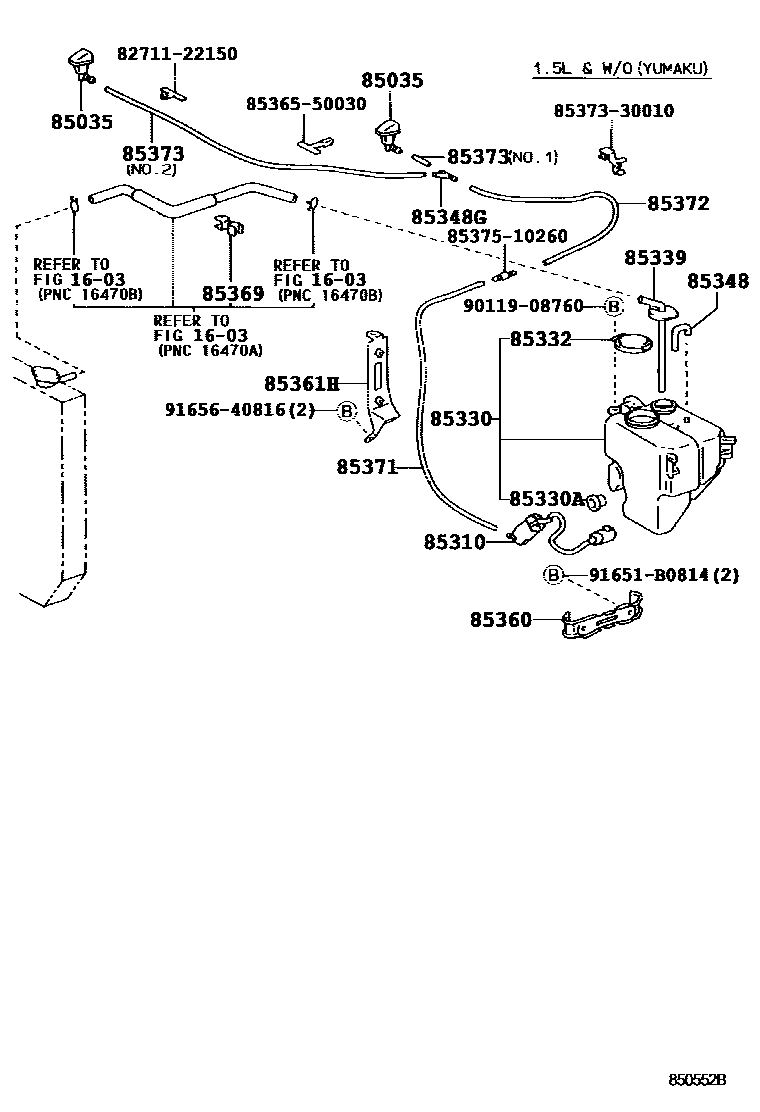

Toyota CROWN — WINDSHIELD WASHER

0001 1��(��� �� ���) 0002 1��(��� �� ���) 0003 1����� OR ����� ���,��(��� �� 0004 1����� OR ����� ���,��(��� �� 0005 1����� OR ����� ���,��(��� �� 0006 1����� OR ����� ���,��(��� �� 0007 1����� OR ����� ���,��(��� ��

1603

85035NOZZLE SUB-ASSY, WASHER

main85381-30020-A0×2iJZS130,LS130..WG199110-199512

WARM GRAY PEARL MICA,29T

sub85381-30030

main85381-30020-A1×2iGS13#,JZS13#,LS13#199110-199112

SUPER WHITE 4,050

sub85381-30030

main85381-30020-A2×2iGS13#,JZS13#,LS13#,YS130199308-199512

SUPER WHITE 2,040

sub85381-30030

main85381-30020-A4×2iGS130,JZS130,LS130..ROY,SALEX199512

WHITE PM,2BU

sub85381-30030

main85381-30020-B0×2iGS136..DLX,SDX;GS130,131,JZS13#,LS13#199110-199112

SUPER SILVER 3 M,176

sub85381-30030

main85381-30020-B2×2iGS13#,JZS13#,LS13#,YS130199308-199512

SILVER ME,199

sub85381-30030

main85381-30020-C1×2iGS130..WG199110-199308

BLACK,8J5

sub85381-30030

main85381-30020-E0×2iGS130,136,JZS130,LS130..(V,WG)..(ROY,SALEX,SDX)199110-199308

MEDIUM BEIGE M,4H6

sub85381-30030

main85381-30020-E1×2iGS130,136,JZS130,LS130..(V,WG)..(ROY,SALEX,SDX)199308-199512

BEIGE MM,4K9

sub85381-30030

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iGS130..WG..SDX;GS131,JZS13#,LS130,131;GS130..SED..(ROY,SALEX,SDX)199110-199704

sub85330-10280

main85330-30190iGS13#,JZS13#,LS13#199110-199112

main85330-30200iGS136;GS130,LS136..DLX,STD199110-199112

85330JAR ASSY, WINDSHIELD WASHER

main85315-30150iJZS13#..4FC..(ROY,ROYG)199110-199512

main85315-30190iGS130..WG..SDX;GS130..SED..(SALEX,SDX);LS130,YS130..DLX,DLXA,SDX199110-199904

main85315-30200iYS130..DLX,DLXA199112-199512

main85315-30220iGS136;GS130,JZS130,LS130..ROY,SALEX199704-199904

main85331-30280iGS13#,JZS13#,LS13#,YS130199110-199904

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iJZS13#..4HC;GS13#,JZS130,131,LS13#..(4FC,4H,5F)..(DLX,SALEX,SDX,STD)199110-199112

85332CAP, WINDSHIELD WASHER JAR

main85316-30140iGS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD199110-199112

main85316-34050iGS13#,JZS13#,LS13#,YS130199307-199402

main85332-12650iGS13#,JZS13#,LS13#,YS130199112-199307

85339CAP SUB-ASSY, RESERVE TANK

main85339-30280iGS13#,JZS13#,LS13#199110-199112

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-30280iGS13#,JZS13#,LS13#199110-199112

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iGS13#,JZS13#,LS13#199110-199112

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-30270iYS130..STD;GS13#,JZS13#,LS13#199402

main85361-30330iGS130..WG..SDX;LS130,YS130..DLX,DLXA,SDX;GS130..SED..(ROY,SALEX,SDX)199110

85361HBRACKET, WASHER

main88688-3A100iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

85369CLAMP

main85369-30270iGS13#,JZS13#,LS13#,YS130199112

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iGS130..WG..SDX;LS130,YS130..DLX,DLXA,SDX;GS130..SED..(ROY,SALEX,SDX)199110

main90099-33080iJZS13#..4FC..(ROY,ROYG)199110-199308

main90099-33299iGS130,JZS13#..4FC..(ROY,ROYG)199110-199308

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iGS13#,JZS13#,LS13#,YS130199112-199512

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGS13#,JZS13#,LS13#199110-199112

8271122150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22150

8536550030INSULATOR, WINDSHIELD WASHER JAR

main85365-50030

8537330010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-30010

8537510260HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-10260

9011908760

main90119-08760

91651B0814

main91651-B0814

9165640816

main91656-40816

22 parts on this diagram · 7 diagrams in section
