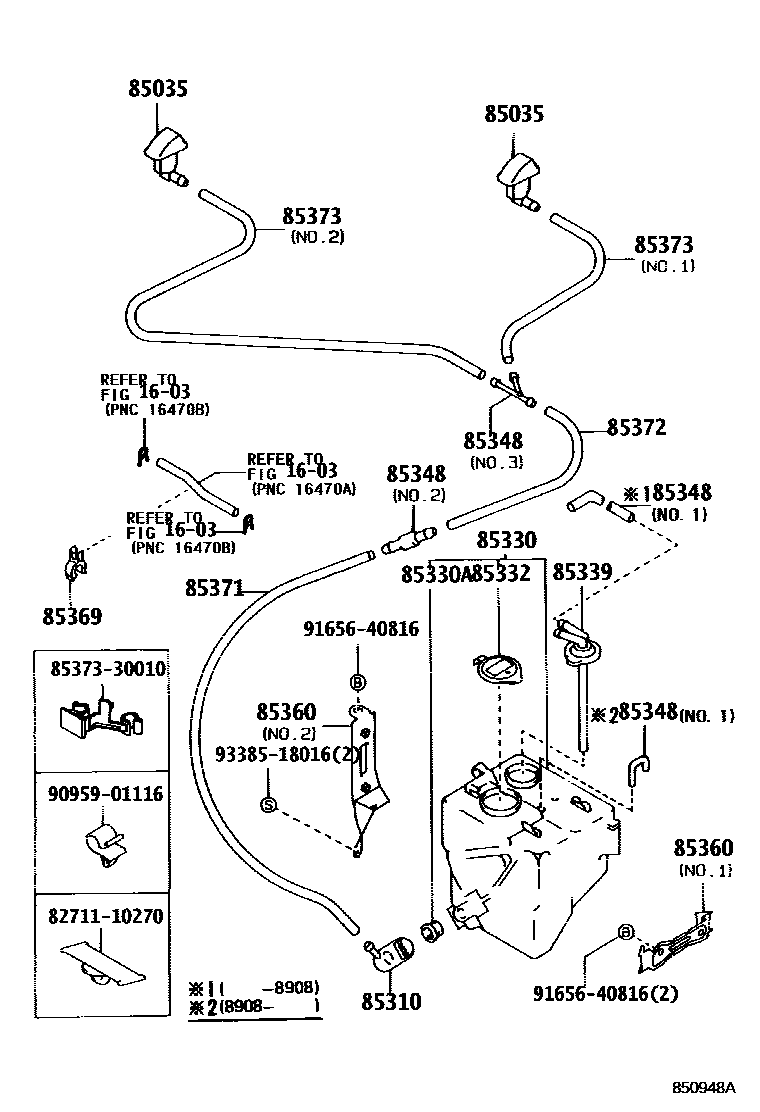

Toyota CROWN — WINDSHIELD WASHER

1603

85035NOZZLE SUB-ASSY, WASHER

main85035-30040-01×2iGS130,136,LS136..(V,WG)..(DLX,SDX)198809-198908

BLACK,103 ,166 ,167 ,202 ,3H3 ,606 ,869

sub85381-30020

main85035-30040-08×2iGS13#,LS13#,MS13#,YS130..SED,V,WG198709-198908

WHITE,040

sub85381-30020

main85035-30050-01×2iGS130,131,LS130,MS135,137..HT198709-198908

BLACK,167 ,170 ,202 ,3H3 ,869

sub85381-30020

main85035-30050-08×2iGS130,131,LS130,MS135,137..HT198709-198908

WHITE,040

sub85381-30020

main85035-30050-18×2iGS130,131,LS130,MS135,137..HT198709-198908

WHITE,24G

sub85381-30020

main85035-30130-01×2iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)198908-199110

BLACK,103 ,182 ,202 ,3H3 ,606 ,869

sub85381-30020

main85035-30130-03×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)198908-199110

SUPER SILVER 2 M,166

sub85381-30020

main85035-30130-08×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198908-199110

SUPER WHITE,050

sub85381-30020

main85035-30130-13×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)198908-199110

GRAY MICA METALLIC,170

sub85381-30020

main85035-30130-18×2iGS130,JZS130,LS130..ROY,SALEX198908-199110

WRM GRAY P/MC TONING,24G

sub85381-30020

main85035-30140-01×2iGS131,JZS131,LS131,MS13#..HT198908-199110

BLACK,182 ,202 ,26N ,3H3 ,869

sub85381-30020

sub85381-30010

main85035-30140-03×2iGS131,JZS131,LS131,MS13#,UZS131..HT198908-199110

GRAY MICA M TONING,170

sub85381-30020

sub85381-30010

main85035-30140-05×2iUZS131..WIB199004-199005

sub85381-30020

sub85381-30010

main85035-30140-08×2iGS131,JZS131,LS131,MS13#..HT198908-199110

WRM GRAY P/M TONING,046

sub85381-30020

sub85381-30010

main85035-30140-18×2iGS131,JZS131,LS131,MS13#..HT198908-199110

SUPER WHITE,050

sub85381-30020

sub85381-30010

main85035-30140-28×2iUZS131..WIB198908-199110

WHITE P/M TONING G,051

sub85381-30020

sub85381-30010

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-30070iGS13#,LS13#,MS13#,YS130198709-198908

sub85310-89115

main85310-30090iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

85330JAR ASSY, WINDSHIELD WASHER

main85331-30260iGS13#,LS13#,MS13#,YS130198709-198908

main85331-30280iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

85332CAP, WINDSHIELD WASHER JAR

main85332-12320iGS13#,LS13#,MS13#,YS130198709-198811

main85332-12650iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198811-199110

sub85316-34050

85339CAP SUB-ASSY, RESERVE TANK

main85339-30260iGS13#,LS13#,MS13#,YS130198709-198908

main85339-30280iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-30280iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

main85338-16020iGS13#,LS13#,MS13#,YS130198709-198908

sub85338-12010

main85348-12250iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

main85349-89122iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-30270iLS13#198709-198809

NO.1

main88688-3A100iGS131..WIB;GS130..WG..SDX;GS130,LS130..DLX,SALEX,STD;GS136,LS136,MS135,YS130..DLX,SALEX,SDX,STD198908-199002

85369CLAMP

main85369-30270iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iGS13#,LS13#,MS13#,YS130198709-198908

main90445-07078iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iGS130,LS130..WG198908-198909

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGS13#,LS13#,MS13#,UZS131,YS130198908-198909

main90099-33811iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

8271110270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10270

8537330010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-30010

9095901116

main90959-01116

9165640816

main91656-40816

9338518016

main93385-18016

18 parts on this diagram · 1 diagram in section
