Toyota CROWN — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-12320i198308-198708

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198308-198708

85312PACKING, WINDSHIELD WASHER TANK

main85312-32010i198308-198708

85330JAR ASSY, WINDSHIELD WASHER

main85331-30220i198308-198608

main85331-30221i198608-198708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198308-198708

85342HOLDER, WASHER NOZZLE

main85342-30060i198308-198504

85345NOZZLE, WINDSHIELD WASHER

main85035-30060i198308-198504

main85035-30070i198504-198509

main85035-30080i198509-198708

main85035-30100-08i198608-198708

THE 40TH,PEARL MICA

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i198504-198708

3-WAY

main85349-89122i198703-198708

2-WAY,NO.2

main85352-30221i198608-198708

main85355-14010i198308-198504

3-WAY

main85355-87201i198504-198703

2-WAY,NO.2

main85355-87201i198308-198504

2-WAY,NO.1 & NO.2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i198705-198708

main85355-20070i198308-198705

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250i198504-198708

main85031-14080i198308-198504

85356PACKING (FOR WINDSHIELD WASHER JAR)

main85356-30221i198608-198708

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-30220i198308-198708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001i198308-198406

main90446-07001i198406-198708

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299i198308-198708

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33081i198608-198708

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i198308-198708

main90446-07001i198308-198708

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

9011906070

main90119-06070

9095901116

main90959-01116

9165540820

main91655-40820

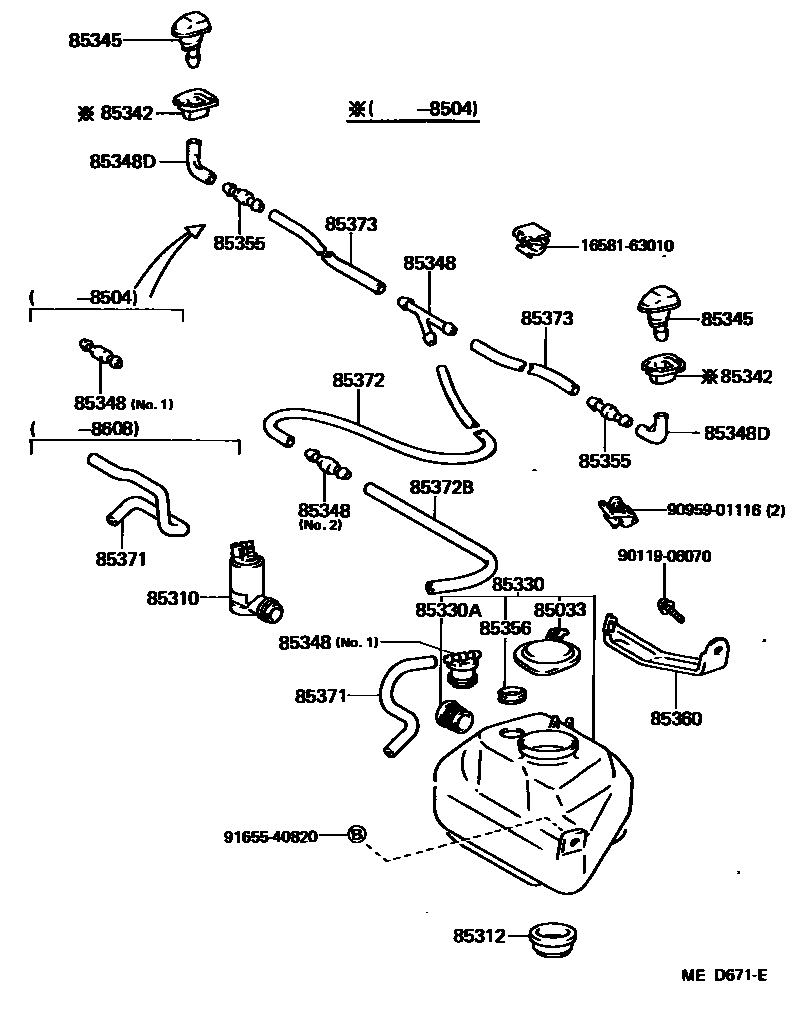

20 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CROWN

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CROWN. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, WINDSHIELD WASHER TANK, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
