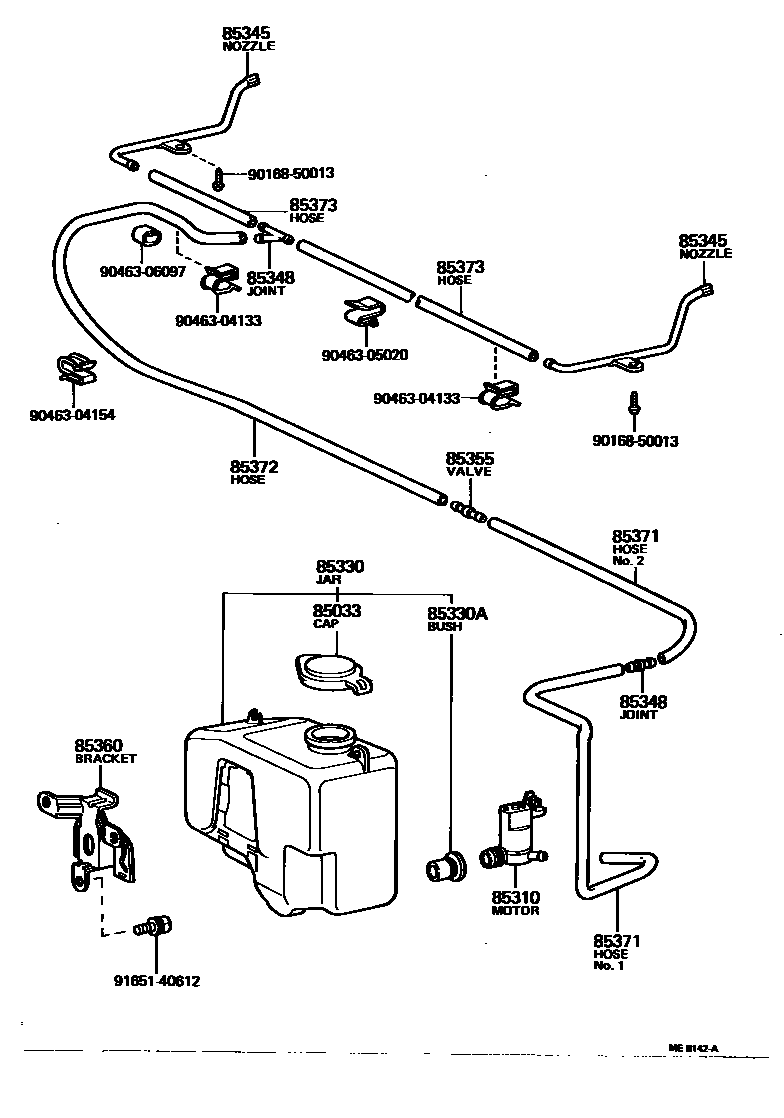

Toyota CROWN — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1 0005 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iLS11#,MS110,112,RS110..CBR,DSL,EFI,LPG197909-198108

main85332-30070iMS110..TBO198010-198108

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iLS11#,MS11#,RS110197909-198108

main85310-22080iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC198208-198307

main85310-30080iMS110,RS110..LPG198208-198307

85330JAR ASSY, WINDSHIELD WASHER

main85330-30110iLS11#,MS11#,RS110..(SED,V,WG)..(CBR,DSL,EFI,LPG)197909-198108

main85330-30120iLS110,MS110,112..HT..(CBR,DSL,EFI)197909-198108

main85330-30140iMS110..TBO198010-198108

main85330-30150iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC198108-198307

main85330-30170iMS110,RS110..LPG198108-198307

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLS11#,MS11#,RS110..CBR,DSL,EFI,LPG197909-198108

85345NOZZLE, WINDSHIELD WASHER

main85345-30060iLS11#,MS11#,RS110197909-198108

RH

main85345-30070iGS11#,LS11#,MS11#,RS110198108-198307

RH

main85346-30060iLS11#,MS11#,RS110197909-198108

LH

main85346-30070iGS11#,LS11#,MS11#,RS110198108-198307

LH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010iGS11#,LS11#,MS11#,RS110197909-198307

3 WAY

sub85348-12250

main85355-87201×2iLS110,117,MS11#,RS110197909-198307

2 WAY

sub85349-89122

85355VALVE, WINDSHIELD WASHER HOSE

main85031-30010iLS11#,MS11#,RS110197909-198108

85360BRACKET ASSY, WINDSHIELD WASHER

main85036-30020iLS110,MS110,112..HT..(CBR,DSL,EFI)197909-198108

main85036-30040iMS110..TBO198010-198108

main85036-30050iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC198108-198307

main85361-30100iLS11#,MS11#,RS110..(SED,V,WG)..(CBR,DSL,EFI,LPG)197909-198108

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iLS11#,MS11#,RS110197909-198108

main90099-33368iMS110,RS110..LPG198108-198307

sub90446-07001

main90446-06013iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC198108-198307

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33368iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC198108-198307

sub90446-07001

main90446-07005iMS110,RS110..LPG198108-198307

sub90446-07001

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iLS11#,MS11#,RS110197909-198108

9016850013

main90168-50013

9046304133

main90463-04133

9046304154

main90463-04154

9046305020

main90463-05020

9046306097

main90463-06097

9165140612

main91651-40612

17 parts on this diagram · 5 diagrams in section
