Toyota CROWN — VENTURI

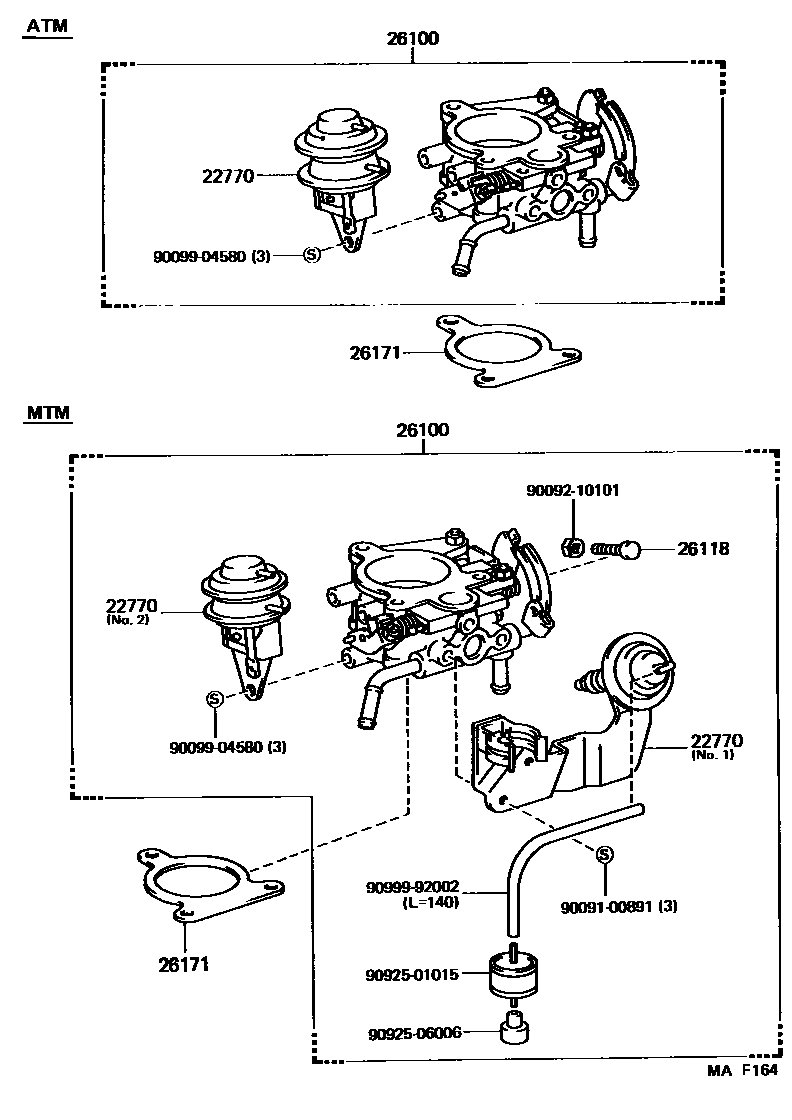

Parts diagram

22770ACTUATOR, IDEL UP

main26133-54040i199110-199409

main26133-54110i199110-199512

main26133-54170i199110-199308

main26133-54220i199512

26100VENTURI ASSY

main26100-54170i199110-199409

main26100-54190i199110-199409

main26100-54200i199110-199210

main26100-54201i199210-199512

main26100-54220i199512-199708

main26100-54221i199708

26118SCREW, STOP PLATE ADJUSTING

main26118-54030i199110-199409

26171GASKET, VENTURI

main17116-54021i199110

9009100891

main90091-00891

9009210101

main90092-10101

9009904580

main90099-04580

9092501015

main90925-01015

9092506006

main90925-06006

9099992002

main90999-92002

10 parts on this diagram · 4 diagrams in section

VENTURI for Toyota CROWN

This section contains 14 genuine Toyota parts for the VENTURI system of the Toyota CROWN. Key components include: MANIFOLD, ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
