Toyota CROWN — VENTURI

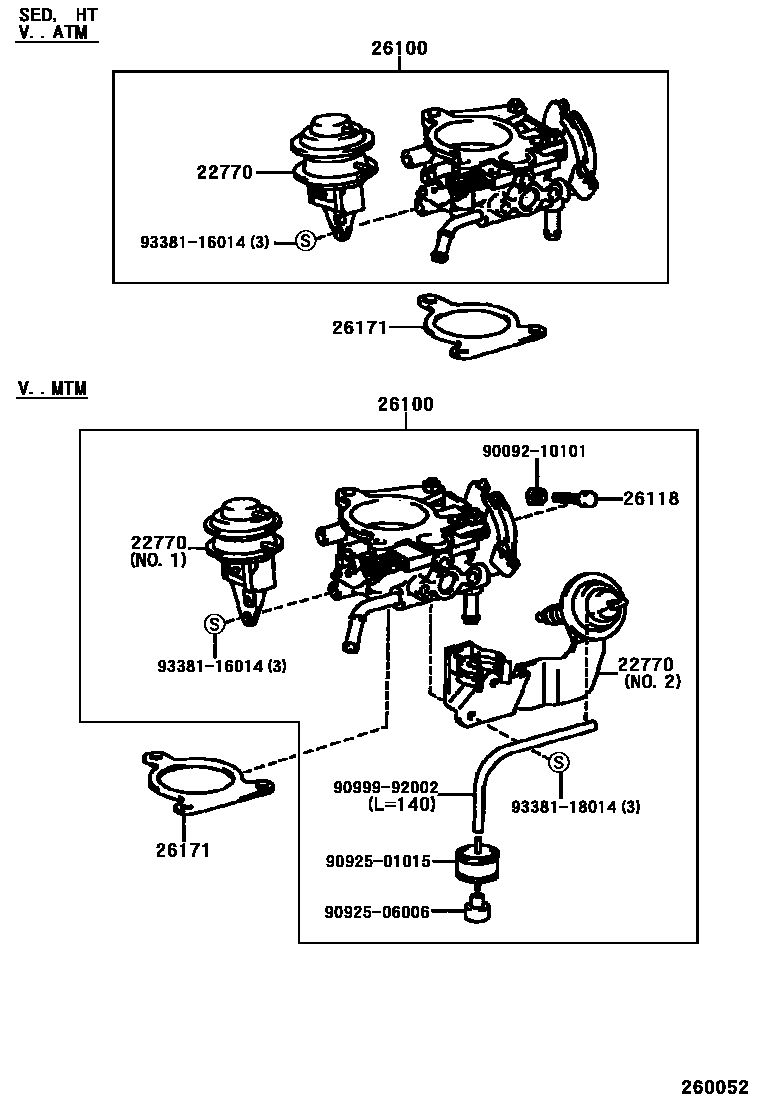

Parts diagram

22770ACTUATOR, IDEL UP

main26133-54040i198908-199110

main26133-54070i198709-198908

main26133-54100i198709-198908

main26133-54110i198709-199110

main26133-54170i198908-199110

26100VENTURI ASSY

main26100-54032i198709-198801

main26100-54033i198801-198908

main26100-54042i198709-198908

main26100-54090i198709-198908

main26100-54100i198709-198908

main26100-54170i198908-199110

main26100-54180i198908-199004

main26100-54190i198908-199110

main26100-54200i199004-199110

26118SCREW, STOP PLATE ADJUSTING

main26118-54030i198709-199110

26171GASKET, VENTURI

main17116-54021i198908-199110

main26171-54010i198709-198908

9009210101

main90092-10101

9092501015

main90925-01015

9092506006

main90925-06006

9099992002

main90999-92002

9338116014

main93381-16014

9338118014

main93381-18014

10 parts on this diagram · 4 diagrams in section

VENTURI for Toyota CROWN

This section contains 16 genuine Toyota parts for the VENTURI system of the Toyota CROWN. Key components include: ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI, ELECTRONIC CONTROLED DIESEL (ECD).
