Toyota CROWN — VENTURI

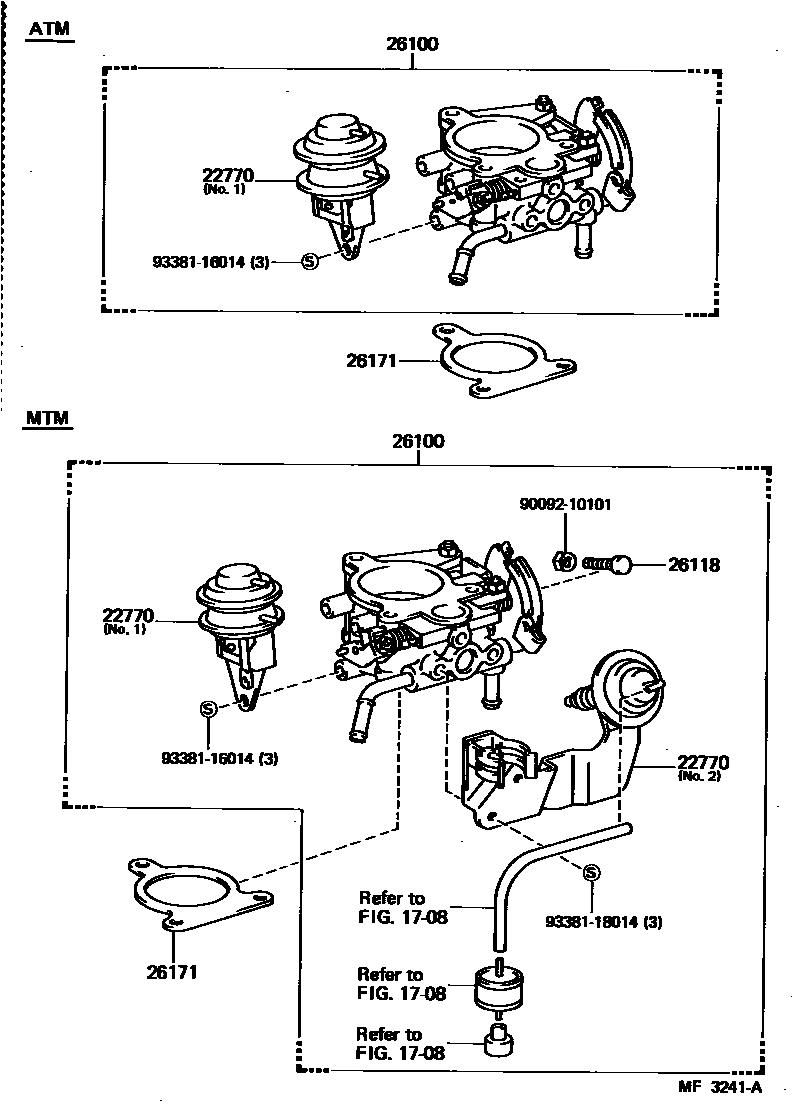

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

22770ACTUATOR, IDEL UP

main26133-54010i198308-198407

main26133-54020i198308-198407

NO.1

main26133-54030i198308-198401

NO.2

main26133-54040i198401-198708

NO.2

main26133-54060i198407-198708

main26133-54070i198407-198708

NO.1

26100VENTURI ASSY

main26100-54031i198308-198401

main26100-54032i198401-198708

main26100-54041i198308-198401

main26100-54042i198401-198708

main26100-54051i198308-198311

main26100-54052i198311-198401

main26100-54053i198401-198605

main26100-54080i198605-198708

26118SCREW, STOP PLATE ADJUSTING

main26118-54030i198308-198708

26171GASKET, VENTURI

main26171-54010i198308-198708

9009210101

main90092-10101

9338116014

main93381-16014

9338118014

main93381-18014

8 parts on this diagram · 2 diagrams in section

VENTURI for Toyota CROWN

This section contains 10 genuine Toyota parts for the VENTURI system of the Toyota CROWN. Key components include: VACUUM PIPING, ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
