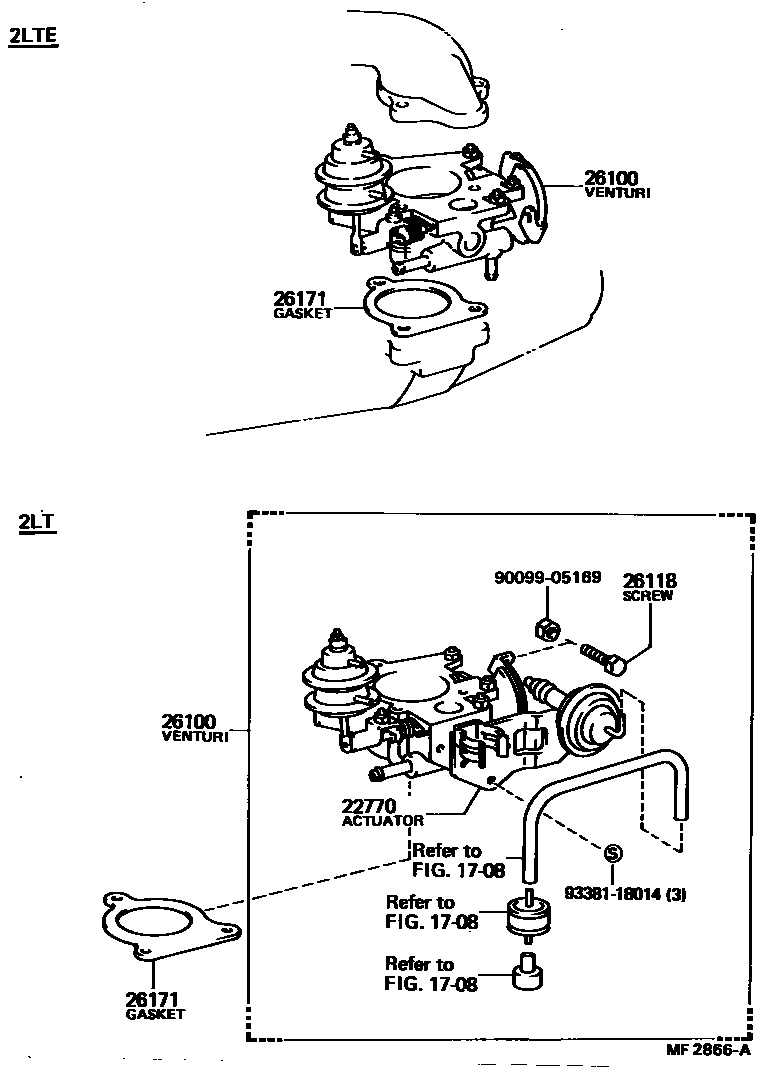

Toyota CROWN — VENTURI

1708VACUUM PIPING

→ Go to FIG 17-08

22770ACTUATOR, IDEL UP

main22770-54021i198208-198307

26100VENTURI ASSY

main26100-54010i198208-198307

main26100-54020i198208-198307

26118SCREW, STOP PLATE ADJUSTING

main22325-54020i198208-198307

26171GASKET, VENTURI

main26171-54010i198208-198307

9009905169

main90099-05169

9338118014

main93381-18014

7 parts on this diagram · 1 diagram in section

VENTURI for Toyota CROWN

This section contains 7 genuine Toyota parts for the VENTURI system of the Toyota CROWN. Key components include: VACUUM PIPING, ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
