Toyota CROWN — V-BELT

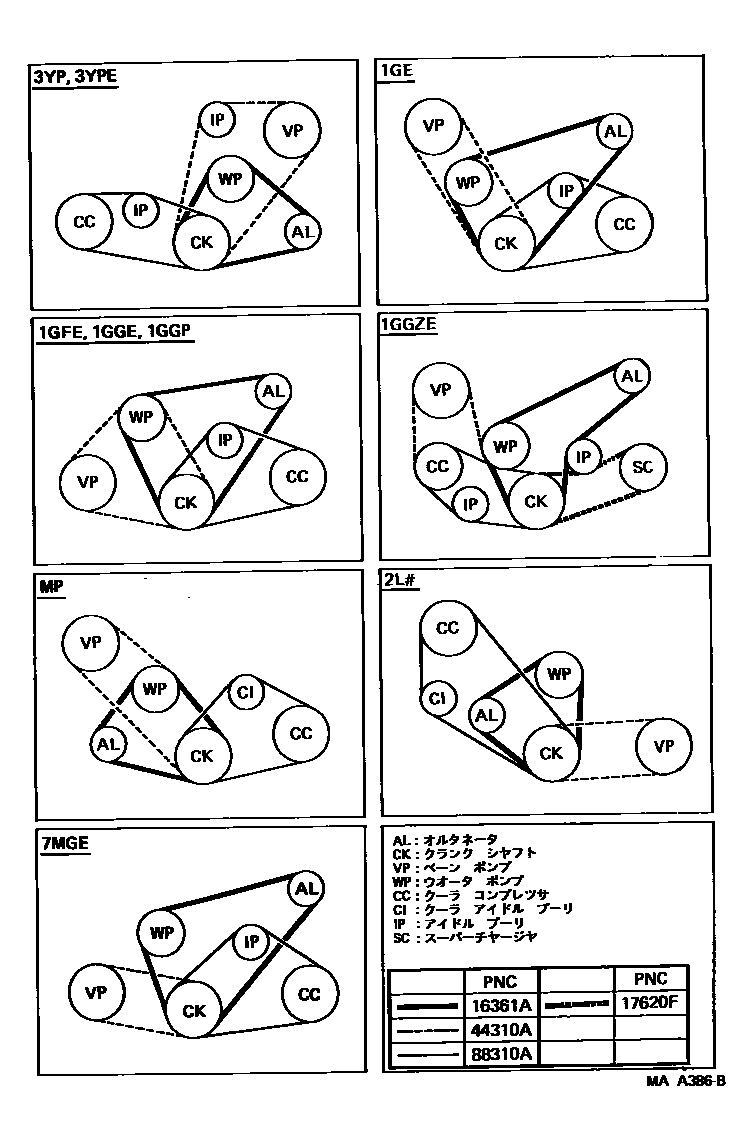

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i198709-198908

main90916-02146i198709-199110

main90916-02209i198908-199110

main90916-02230i198912-199103

main90916-02280i198908-199101

main90916-02291i198908-198912

main90916-02310i199008-199110

main90916-02343i199101-199110

main90916-02360i199103-199110

main99364-01080i198809-199101

main99364-01100i198709-198908

main99364-21080i199101-199110

main99364-50830i198709-199011

main99364-51160i198809-199110

main99364-51200i198709-198809

main99364-70830i199011-199110

main99365-01290i198709-199110

main99367-00920i198709-198908

17620FBELT, V(FOR SUPERCHARGER)

main90916-02147i198709-199110

44310ABELT, V(FOR VANE PUMP)

main90916-02181i198709-199110

main90916-02200i198908-199110

main99322-01100i198709-198908

main99322-01195i198709-198908

main99332-00830i198908-199110

main99332-00850i198709-198908

main99332-01055i198709-199101

main99332-11055i199101-199110

main99363-00890i198809-199110

main99363-00950i198908-199110

main99363-00960i198709-199110

main99364-00850i198709-198908

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00875i198709-199110

main99322-00910i198709-198908

main99322-01230i198908-199110

MITUBOSI

main99322-01240i198908-199110

main99322-51230i198908-199110

main99364-00850i198709-198908

main99364-00860i198908-199110

main99364-00930i198709-199110

main99364-00940i198709-199110

MITUBOSI

main99364-50840i198709-198908

main99364-50940i198709-199110

4 parts on this diagram · 2 diagrams in section

V-BELT for Toyota CROWN

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota CROWN. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR SUPERCHARGER), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
