Toyota CROWN — TRACTION CONTROL

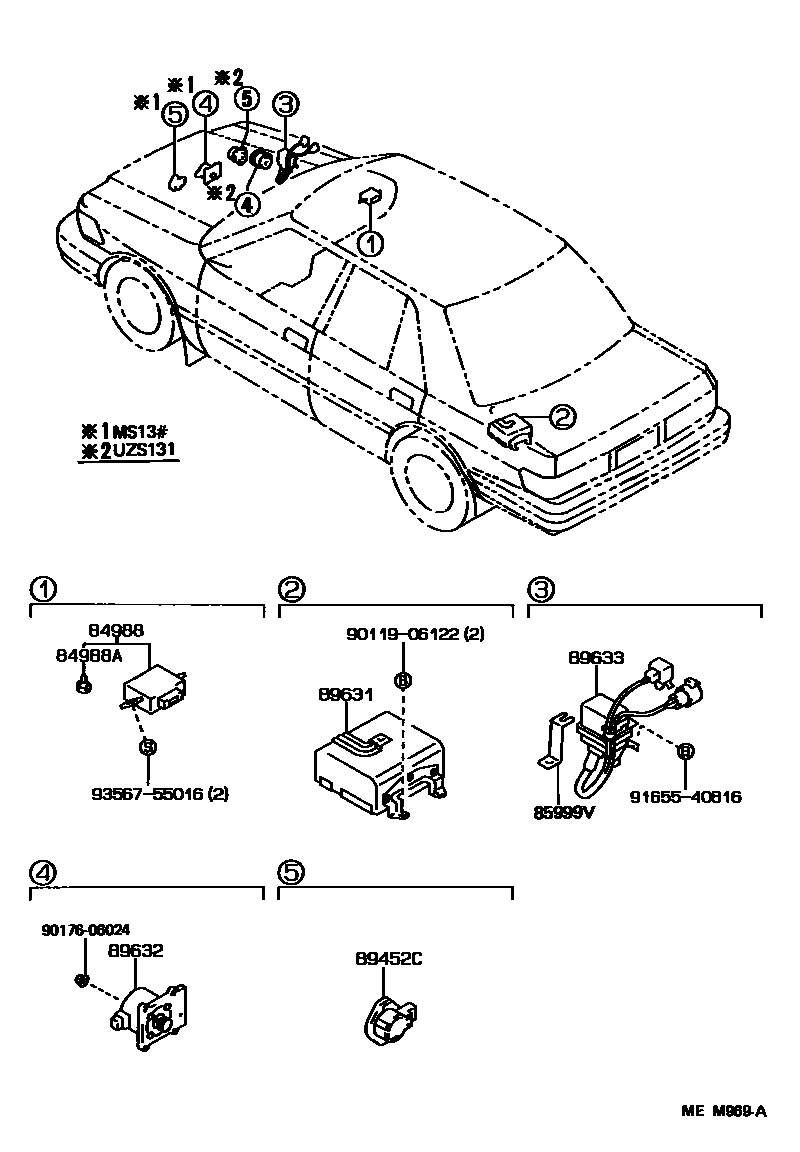

Parts diagram

84988SWITCH, TRACTION CONTROL

main84988-30020i198709-198809

84988ABULB, TRACTION CONTROL SWITCH

main84999-10240i198709-198809

85999VBRACKET, RELAY

main85999-30340i199008-199110

89452CSENSOR, THROTTLE POSITION

main89452-12040i199008-199110

main89452-14050i198709-198908

main89452-22090i199008-199110

main89452-50010i198908-199110

89631COMPUTER, TRACTION CONTROL

main89631-30010i198709-198908

main89631-30020i198908-199009

main89631-30030i198908-199008

main89631-30040i199009-199110

main89631-30050i199009-199110

89632MOTOR, TRACTION THROTTLE VALVE

main89632-22010i199008-199110

main89632-22020i199008-199110

main89632-30010i198709-198908

main89632-30020i198908-199110

main89632-50010i198908-199110

89633RELAY, TRACTION CONTROL

main89633-30010i198709-198908

main89633-30020i198908-199008

9011906122

main90119-06122

9017606024

main90176-06024

9165540816

main91655-40816

9356755016

main93567-55016

11 parts on this diagram · 1 diagram in section

TRACTION CONTROL for Toyota CROWN

This section contains 11 genuine Toyota parts for the TRACTION CONTROL system of the Toyota CROWN. Key components include: SWITCH, TRACTION CONTROL, BULB, TRACTION CONTROL SWITCH, BRACKET, RELAY, SENSOR, THROTTLE POSITION, COMPUTER, TRACTION CONTROL.
