Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1�������� 1/2 0005 1�������� 1/2 0006 1�������� 2/2 0007 1�������� 2/2 0008 1��� 0009 1������������1/2 0010 1������������2/2 0011 1������� 0012 1��� & �� ������ 0013 1���,���,��� & �������

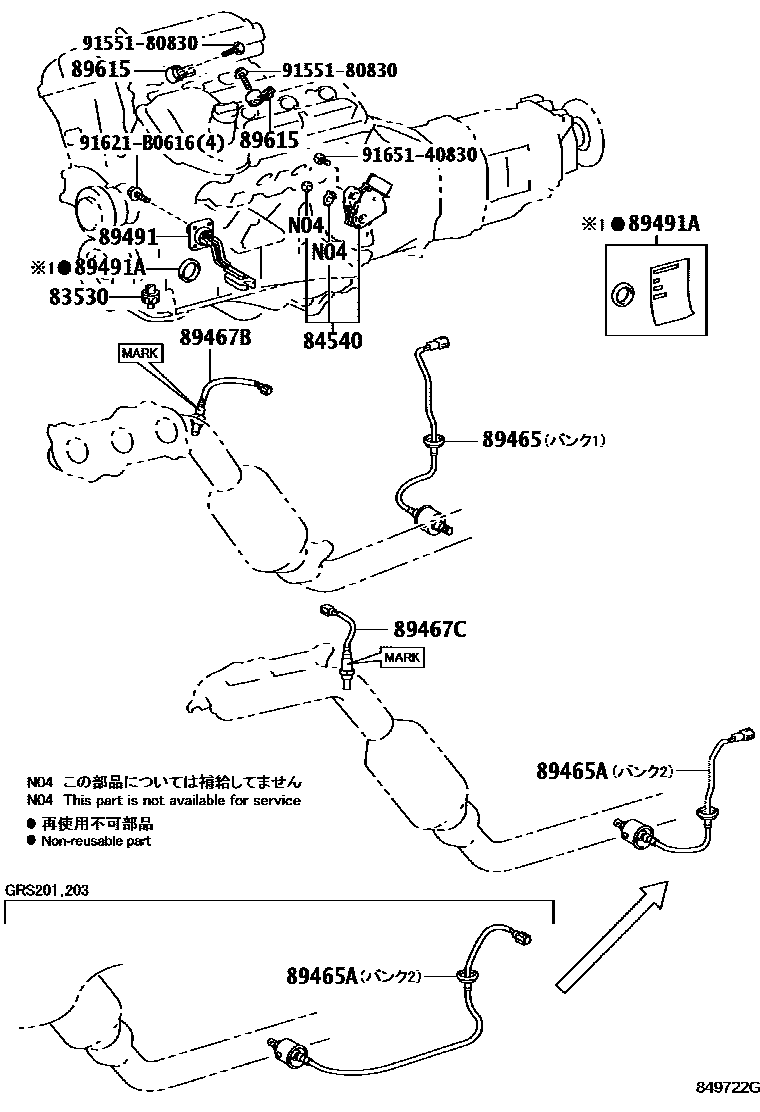

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRS20#,GWS204..CBU201002-201212

84540SWITCH ASSY, NEUTRAL START

main84540-71010iGRS20#..CBU201002-201212

89465SENSOR, OXYGEN

main89465-30730iGRS20#,GWS204..CBU201002-201212

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRS200,202,204,GWS204..CBU200802-201002

main89465-30840iGRS201,203..CBU200802-201002

89467BSENSOR, AIR FUEL RATIO

main89467-22050iGRS20#..CBU201002-201212

main89467-30010iGWS204200805-200807

main89467-30020iGRS201,203200802-200803

main89467-30030iGWS204200807-201002

main89467-30040iGRS201,203..CBU200803-201002

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22030iGRS200,202,204..CBU201002-201212

main89467-22040iGRS201,203..CBU201002-201212

main89467-30010iGRS201,203200802-200803

main89467-30020iGWS204200805-200807

main89467-30030iGRS200,202,204..CBU200802-201002

main89467-30040iGWS204200807-201002

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS200,202,204,GWS204..CBU200802-201002

main89491-30061iGRS200,202,204,GWS204..CBU201109-201212

main89491-30070iGRS201,203..CBU200802-201002

main89491-30071iGRS201,203..CBU201109-201212

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRS20#,GWS204..CBU201002-201212

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRS20#,GWS204..CBU201002-201212

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

12 parts on this diagram · 13 diagrams in section
