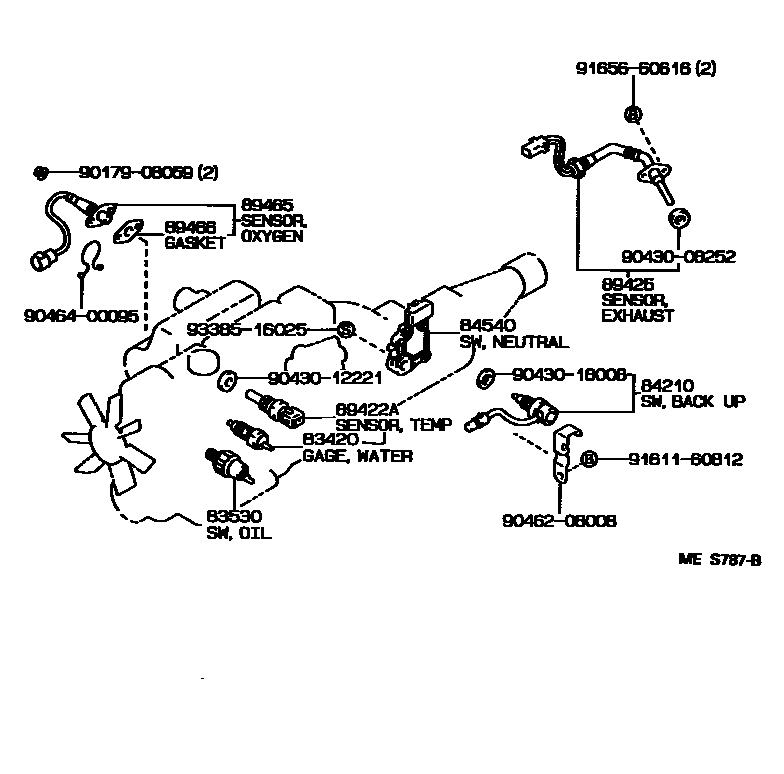

Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� & ��������� 0005 1����� & ��������� 0006 1����� & ��������� 0007 1����� �-� 0008 1������������ ���� 0009 1������������ ���� 0010 1��� RH 0011 1��� LH 0012 1�����-��� ���� 0013 1�-�,��� & �����-� ���� 0014 1�� ��� & ��� ����

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iGS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC199211-199308

main83420-20020iGS13#,JZS13#,LS13#199110-199112

main83420-20030iLS130,136;GS130,LS131..SALEX199208-199211

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYS130199112-199308

sub83530-28030

main83530-14070iYS130199308-199512

sub83530-28010

main83530-28020iGS13#,JZS130199803

main83530-30051iGS13#199110-199211

sub83530-60050

main83530-30060iLS13#199110-199803

main83530-30080iJZS13#199110-199211

sub83530-60040

main83530-30090iGS13#,JZS13#199211-199308

main83530-60020iGS13#,JZS130199803

main83530-60030iLS130199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGS130,136,LS136,YS130..MTM199110

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS13#,LS130,131199110-199308

main84540-30280iJZS13#,LS130,131199110-199308

main84540-30290iGS13#,LS136,YS130..ATM199112

main84540-30300iGS13#,LS136,YS130..ATM199112

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLS136199110-199409

main89422-35010iLS130,131199110

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20190iYS130199112-199308

sub89425-43010

main89425-30190iYS130199308-199512

main89425-39405iGS13#,JZS13#199110-199308

main89425-39445iGS13#,JZS13#199308-199709

89465SENSOR, OXYGEN

main89465-29445iJZS130,131199308-199609

main89465-29815iGS13#199512

main89465-30340iJZS130199609

main89465-39555iJZS133,135199110-199512

REAR

main89465-39565iJZS133,135199110-199512

FRONT

main89465-39575iGS13#..HTWC199110-199512

main89465-39585iGS130..TWLPG199112-199308

main89465-39715iYS130199308-199512

main89465-39725iGS130..TWLPG199308-199503

main89465-80003iGS130..TWLPG199503-199512

89466GASKET, OXYGEN SENSOR

main89466-20020iGS13#,JZS130199512-199609

main89466-30030iGS13#..HTWC199110-199512

9017908059

main90179-08059

9043008252

main90430-08252

9043012221

main90430-12221

9043018008

main90430-18008

9046208008

main90462-08008

9046400095

main90464-00095

9161160812

main91611-60812

9165660616

main91656-60616

9338516025

main93385-16025

17 parts on this diagram · 14 diagrams in section
