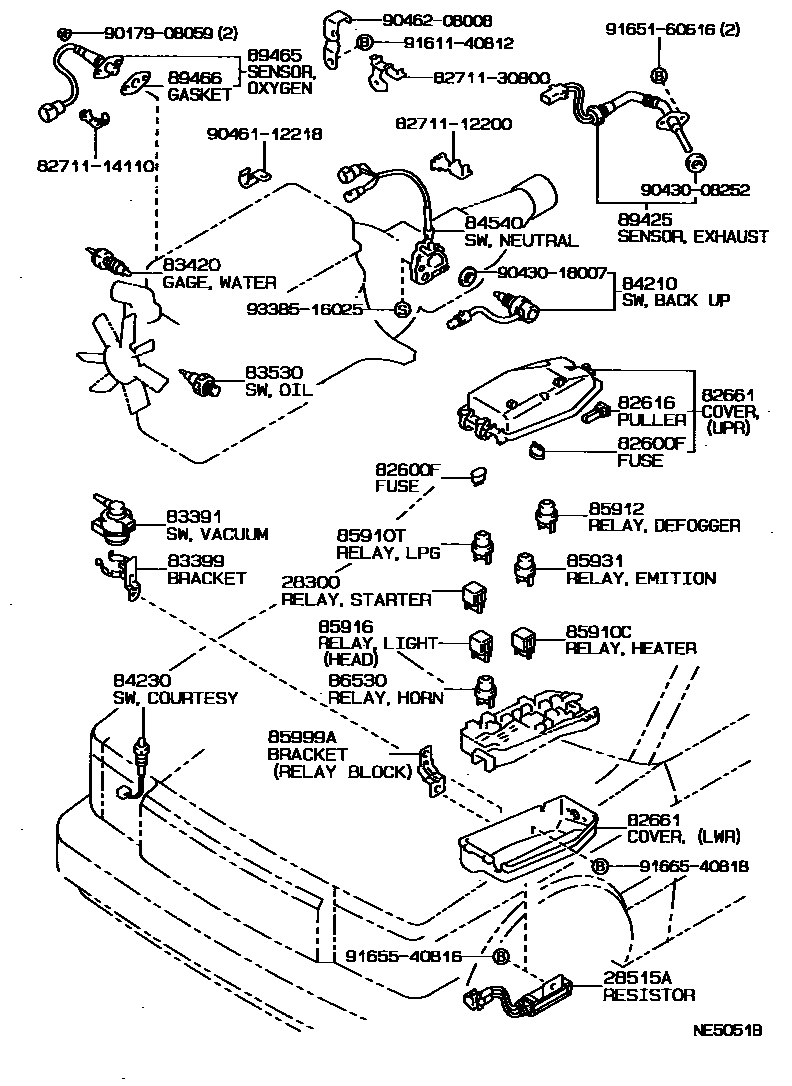

Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1

28300RELAY ASSY, STARTER

main28300-16010i1GE,1GFE..GS131;1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,STD198709-198908

main28300-54080i2L,2LT#..LS13#198709-199110

28515ARESISTOR, SOLENOID

main28515-73010i1GGP,MP,3YP..GS130,MS130,YS130198709-199110

82600FFUSE, FUSE BLOCK

main90982-07011iUZS131198908-199110

main90982-09001iGS130,131..HTWC198809-198908

main90982-09003iGS13#,LS13#,MS13#,UZS131,YS130198908-198912

main90982-09004iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

main90982-09005iGS13#,LS13#,MS13#,UZS131,YS130198709-198912

main90982-09006iMS137,UZS131198709-199110

82616PULLER, FUSE

main82616-12010iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

82661COVER, RELAY BLOCK, NO.1

main82662-30020iLS13#198709-198908

UPPER

main82662-30021iLS13#198908-199110

UPPER

main82662-30030iMS130,YS130198709-198908

UPPER

main82662-30031iGS130,YS130..LPEFI,TWLPG198908-199110

UPPER

main82662-30050iGS13#,MS135,137..EFI,HTWC,TWC198709-198908

UPPER

main82662-30051iUZS131..4HC;GS13#,JZS13#,MS13#..HTWC,TWC198908-199110

UPPER

main82662-30060iGS130,131..SPC198709-198908

UPPER

main82662-30061iGS130,131..SPC198908-199008

UPPER

main82662-30062iGS130,131..SPC199008-199110

UPPER

main82662-30100iUZS131..4FC198908-199110

UPPER

main82663-30010iGS130,MS130,YS130..LPEFI,LPG,TWLPG198709-199110

LOWER

main82663-30020iUZS131..4HC;GS13#,JZS13#,LS13#,MS135,137..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

LOWER

main82663-30040iUZS131..4FC198908-199110

83391SWITCH, VACUUM

main83391-12210iMS130198709-199110

NO.1(80FB)

main83391-27060iGS130..TWLPG198908-199110

NO.2(400FB)

main83391-30020iYS130198709-198908

main83391-32020iLS13#198709-199110

sub83391-35040

83399BRACKET, VACUUM SWITCH

main83399-30040iGS130..TWLPG198908-199110

main83399-30050iMS130,YS130198709-198908

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iUZS131198908-199110

main83420-20020iGS13#,JZS13#,LS13#,MS13#,YS130198709-199110

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYS130198709-199110

sub83530-28030

main83530-30042iGS13#198709-198809

main83530-30050iMS13#198709-198809

main83530-30051iGS13#,MS13#199104-199110

sub83530-60050

main83530-30060iLS13#198709-199110

sub83530-60030

main83530-30080iJZS13#,UZS131198908-199110

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGS13#,LS13#,YS130..5F198709-199110

main84210-60021iGS130,136,LS130,136,MS130,YS130..4H198709-199110

84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)

main84231-30060iLS130..4H..STD198709-199110

84540SWITCH ASSY, NEUTRAL START

main84540-14130iGS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC,TWLPG)198709

sub84540-14131

main84540-22180iYS130..4HC198709

sub84540-22181

main84540-30240iGS130,131..SPC;JZS13#,MS135,137198709

sub84540-30241

main84540-50010iUZS131198908-199110

85910CRELAY ASSY (FOR HEATER BLOWER MOTOR)

main90987-04002iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

85910TRELAY, LPG

main28380-73010iGS130,YS130..LPEFI,TWLPG198908-199110

main90987-02004iMS130,YS130198709-198908

85912RELAY, DEFOGGER

main90987-02004iGS136,LS136..DLX,SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130198709-199110

85916RELAY, LIGHT CONTROL

main90987-02004iGS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198908-198911

CORNERING,NIPPONDENSO

main90987-02006iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

HEADLAMP

main90987-02008iGS130..SED..SDX;GS130..ROY,SALEX;GS131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198908-199110

TAIL LAMP

main90987-04002iYS130;GS130,136,LS130,136..STD198709-199110

HAZARD MAIN

85931RELAY, EMISSION CONTROL

main90987-02004×2iMS130198709-198908

85999ABRACKET, RELAY, NO.2

main85999-30250iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

RH COWL SIDE UPPER

main85999-30260iGS13#,LS13#,MS13#,YS130198709-198908

RH COWL SIDE LOWER

main85999-30261iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

RH COWL SIDE LOWER

main85999-30280iGS13#,LS13#,MS13#,UZS131,YS130198709-199003

CONTROL UNIT

main85999-30281iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130199003-199110

CONTROL UNIT

main85999-30290iGS131..ROY..SPC199008-199110

E/G RELAY BLOCK

main85999-30310iGS130,131,MS135,137..SPC,TWC198709-198808

E/G RELAY BLOCK

86530RELAY ASSY, HORN

main90987-02004iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12210iYS130198908-199107

main89425-32090iYS130199107-199110

sub89425-32110

main89425-39135iGS130,131,MS135,137198709-198908

main89425-39145iGS136,MS130,YS130198709-198908

main89425-39285iGS13#,JZS13#,MS13#,UZS131198908-199110

89465SENSOR, OXYGEN

main89465-19066iMS130198709-198908

sub89465-19067

main89465-19075iGS13#..EFI198709-198907

main89465-19076iGS13#..EFI198907-198908

main89465-19176iGS130..TWLPG198908-199110

main89465-29095iMS135,137198709-198908

main89465-29096iMS13#198908-199110

main89465-29105iYS130198709-198908

sub89465-29106

main89465-29175iGS130,131..HTWC,TWC198709-198907

main89465-29176iGS13#..HTWC,TWC198907-199110

main89465-29445iJZS13#199008-199110

main89465-30100×2iUZS131198908-199110

main89465-39125iGS130,131..SPC198709-198907

main89465-39126iGS130,131..SPC198907-199110

main89465-39385iYS130198908-199110

89466GASKET, OXYGEN SENSOR

main89466-20020iMS13#,YS130198810-198811

main89466-30010iMS13#,YS130198709-198810

main89466-30020iGS130,131..SPC198709-198811

main89466-30030iGS13#..EFI,HTWC,TWC198907-199110

main89466-32010iGS13#..EFI,HTWC,TWC198709-198907

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271130800WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30800

9017908059

main90179-08059

9043008252

main90430-08252

9043018007

main90430-18007

9046112218

main90461-12218

9046208008

main90462-08008

9161140812

main91611-40812

9165160616

main91651-60616

9165540816

main91655-40816

9166540818

main91665-40818

9338516025

main93385-16025

35 parts on this diagram · 21 diagrams in section
