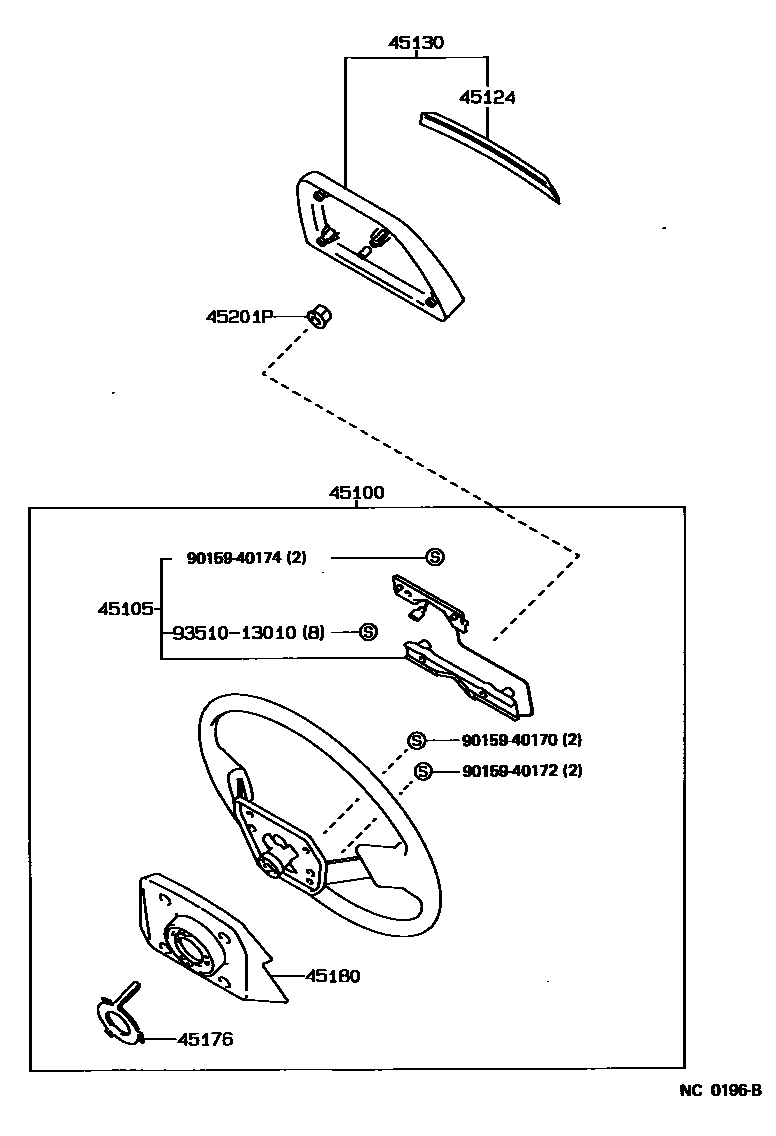

Toyota CROWN — STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-30240-02iGS130..WG..MTM;GS136,LS136,YS130..DLX,SDX;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
main45100-30240-04iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
main45100-30360-02iGS130..WG..MTM;GS130..4H..DLX..TWLPG;GS136,LS136,YS130..DLX,SDX; GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE)198908-199006
main45100-30360-04iGS130..WG..MTM;GS130..4H..DLX..TWLPG;GS136,LS136,YS130..DLX,SDX; GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE)198908-199006
main45100-30361-02iGS130..WG..MTM;GS130..4H..DLX..TWLPG;GS136,LS136,YS130..DLX,SDX; GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE)199006-199110
main45100-30361-04iGS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE); LS136..DLX; YS130..DLX;GS130..4H..DLX..TWLPG;GS130,136..(V,WG)..MTM..SDX199006-199110
main45102-30220-04iGS130,131,LS130..(ROY,SAL,SALEX)..(EFI,HTWC,TDE,TWC); GS131..ROY..SPC;GS130,MS135,137..SPC,TWC198809-198908
main45102-30220-06iGS130,131,LS130..(ROY,SAL,SALEX)..(EFI,HTWC,TDE,TWC); GS131..ROY..SPC;GS130,MS135,137..SPC,TWC198809-198908
main45102-30230-02iGS130,LS130,131,MS135..SALEX;GS131..(ROY,SAL,SALEX)..(HTWC,TWC); GS131..ROY..SPC;GS130,MS135..ROY;MS137,UZS131..4HC198908-199006
main45102-30230-04iGS130,LS130,131,MS135..SALEX;GS131..(ROY,SAL,SALEX)..(HTWC,TWC); GS131..ROY..SPC;GS130,MS135..ROY;MS137,UZS131..4HC198908-199006
main45102-30230-06iGS130,LS130,131,MS135..SALEX;GS131..(ROY,SAL,SALEX)..(HTWC,TWC); GS131..ROY..SPC;GS130,MS135..ROY;MS137,UZS131..4HC198908-199006
main45102-30231-02iGS131..(ROY,SAL,SALEX)..(HTWC,TWC);GS130,JZS131,LS130,131,MS135..SALEX; GS131..ROY..SPC;MS137,UZS131..4HC;GS130,JZS13#,MS135..ROY199006-199110
main45102-30231-04iGS131..(ROY,SAL,SALEX)..(HTWC,TWC);GS130,JZS131,LS130,131,MS135..SALEX; GS131..ROY..SPC;MS137,UZS131..4HC;GS130,JZS13#,MS135..ROY199108-199110
main45102-30231-06iGS131..(ROY,SAL,SALEX)..(HTWC,TWC);GS130,JZS131,LS130,131,MS135..SALEX; GS131..ROY..SPC;MS137,UZS131..4HC;GS130,JZS13#,MS135..ROY199006-199110
main45102-30240-02iMS135..4FC..ROY;GS131..4FC..ROY..SPC;JZS131..4FC..(ROY,SALEX); MS135..SALEX; MS137,UZS131..4FC198908-199110
main45102-30240-04iMS135..4FC..ROY;GS131..4FC..ROY..SPC;JZS131..4FC..(ROY,SALEX); MS135..SALEX; MS137,UZS131..4FC198908-199110
main45102-30240-06iMS135..4FC..ROY;GS131..4FC..ROY..SPC;JZS131..4FC..(ROY,SALEX); MS135..SALEX; MS137,UZS131..4FC198908-199110
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-30100iMS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC)198709-198809
main45105-30120iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
main45105-30140iMS135..4FC..ROY;GS131..4FC..ROY..SPC;JZS131..4FC..(ROY,SALEX); MS135..SALEX; MS137..4FC198908-199110
45124ORNAMENT, STEERING WHEEL MARK
main45124-30010-02iGS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS13#,YS130..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL198709-198908
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
main45124-30020-02iGS131,MS135,137..4HC..(SPC,TWC); MS135..4FC;GS131..4FC..ROY..SPC; MS137..4FC198709-198908
main45124-30020-04iGS131,MS135,137..4HC..(SPC,TWC); MS135..4FC;GS131..4FC..ROY..SPC; MS137..4FC198709-198908
main45124-30020-06iGS131,MS135,137..4HC..(SPC,TWC); MS135..4FC;GS131..4FC..ROY..SPC; MS137..4FC198709-198908
main45124-30030-02iMS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198908-199110
MAROON,TRIM3#
main45124-30030-04iMS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198908-199110
BLUE,TRIM8#
main45124-30030-06iMS137,UZS131..4HC;GS130,131,JZS13#,LS130,131,MS135..ROY,SAL,SALEX,SPE,SSL198908-199110
SABLE,TRIM4#
45130BUTTON ASSY, HORN
main45130-30230-02iGS130..WG..MTM;GS136,LS136,YS130..DLX,SDX;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
MAROON,TRIM3#
main45130-30230-04iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
BLUE,TRIM8#
main45130-30240-02iMS130..4H..SDX;GS131..SSL..SPC;GS130..4H..DLX..HTWC;GS130..4FC..(DLX,SDX)..HTWC;GS130,MS130..ATM..(EFI,LPG);GS130..(SAL,SALEX,SPE)..HTWC;GS130..SED..(4HC,5F)..SDX..HTWC;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)198809-198908
MAROON,TRIM3#
main45130-30240-04iMS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,HTWC,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)198809-198908
BLUE,TRIM8#
main45130-30240-06iMS135..4FC;GS131..EFI,TWC;GS131..4FC..SPC;GS130,LS130..ROY,SAL,SALEX,SPE,SSL198709-198809
SABLE,TRIM4#
main45130-30250-02iGS130,131,LS130..(ROY,SAL,SALEX)..(EFI,HTWC,TDE,TWC); GS131..ROY..SPC;GS130,MS135,137..SPC,TWC198809-198908
main45130-30250-04iGS130,131,LS130..(ROY,SAL,SALEX)..(EFI,HTWC,TDE,TWC); GS131..ROY..SPC;GS130,MS135,137..SPC,TWC198809-198908
main45130-30280-02iGS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL; GS130..WG..MTM;GS130..4H..DLX..TWLPG;GS136,LS136,YS130..DLX,SDX198908-199110
main45130-30280-04iGS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL; GS130..WG..MTM;GS130..4H..DLX..TWLPG;GS136,LS136,YS130..DLX,SDX198908-199110
main45130-30280-06iMS137,UZS131..4HC;GS130,131,JZS13#,LS130,131,MS135..ROY,SAL,SALEX,SPE,SSL198908-199110
SABLE,TRIM4#
45176RING, HORN CONTACT
main45176-30050iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
45180COVER SUB-ASSY, STEERING WHEEL
main45180-30010-02iGS130..WG..MTM;GS136,LS136,YS130..DLX,SDX;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
MAROON,TRIM3#
main45180-30010-04iGS130..WG..MTM;GS130,LS130..STD;GS136,LS136,YS130;GS130,MS130..4H..DLX..(LPG,TWLPG)198709-199110
BLUE,TRIM8#
main45180-30020-04iMS130..ATM;MS130..4H..SDX;LS130..DLX,SDX,SPE;GS130..4FC..(DLX,SDX,SPE);GS130,131..4HC..(EFI,HTWC);GS130,LS130..WG..4FC..SALEX;GS130..(HT,SED)..MTM..(DLX,SDX,SPE)198809-198908
BLUE,TRIM8#
main45180-30020-06iLS130..WG;LS130..SPE;GS130,131..4HC..(SAL,SALEX);GS130..(HT,WG)..(4FC,5F)..(SALEX,SPE)198809-198908
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
main45180-30030-06iGS130,131,LS130..(HT,SED)..(4FC,5F)..(SAL,SALEX,SSL)..(EFI,HTWC,TD,TDE); GS131..SSL..SPC198902-198908
SABLE,TRIM4#; SABLE,TRIM4#,8#
main45180-30040-02iGS130..WG..MTM;GS130..4H..DLX..TWLPG;GS136,LS136,YS130..DLX,SDX; GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE)198908-199110
main45180-30040-04iGS130..WG..MTM;GS130..4H..DLX..TWLPG;GS136,LS136,YS130..DLX,SDX; GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE)198908-199110
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
45201PNUT, STEERING WHEEL SET
main90179-12071iLS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC198709-199110
main90179-14034iGS130,LS130..(4FC,5F)..DLX;GS130,136..(V,WG)..(4FC,5F)..(DLX,SDX); LS136..DLX198908-199110
9015940170
main90159-40170
9015940172
main90159-40172
9015940174
main90159-40174
9351013010
main93510-13010
11 parts on this diagram · 9 diagrams in section
STEERING WHEEL for Toyota CROWN
This section contains 36 genuine Toyota parts for the STEERING WHEEL system of the Toyota CROWN. Key components include: STEERING COLUMN & SHAFT, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2, WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, SPACER(FOR HORN BUTTON CONTACT PLATE).
