Toyota CROWN — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU201002-201212

28100STARTER ASSY

main28100-31070supersedes 28100-31081i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-200909

main28100-31071supersedes 28100-31081i2GRFSE,3GRFSE,4GRFSE..GRS20#200910-201002

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

28120YOKE ASSY, STARTER

main28120-28040supersedes 28120-28080i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-200808

main28120-28060supersedes 28120-28080i2GRFSE,3GRFSE,4GRFSE..GRS20#200808-201002

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31070supersedes 28130-31080i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU201002-201212

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

28160ARMATURE ASSY, STARTER

main28160-21060i2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU201002-201212

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

28255GEAR, PLANET

main28255-20020×3supersedes 28255-28040i2GRFSE,3GRFSE,4GRFSE..GRS20#200802-201002

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9164281065

main91642-81065

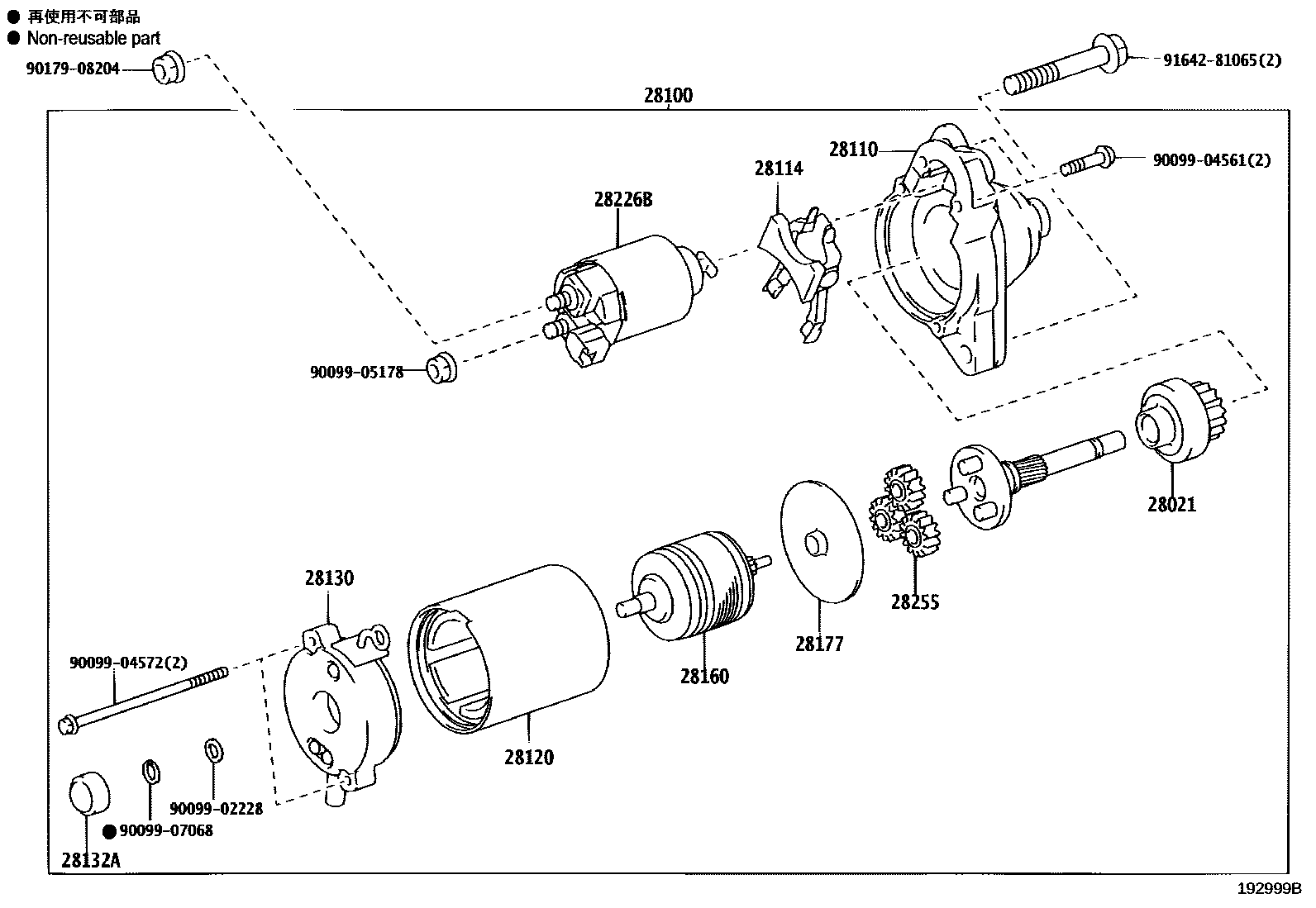

18 parts on this diagram · 1 diagram in section
