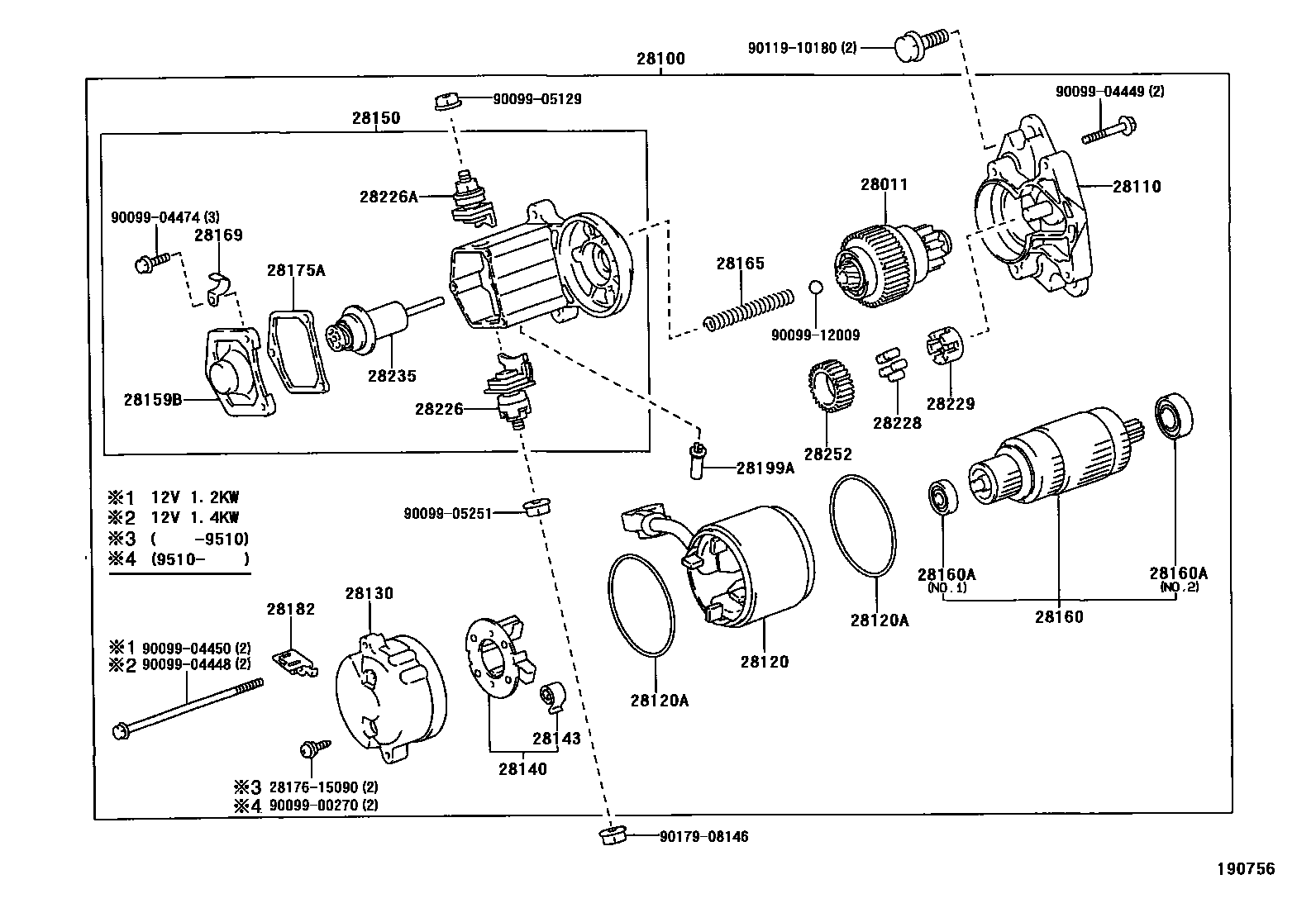

Toyota CROWN — STARTER

0001 112V 1.2KW,1.4KW 0002 112V 0.8KW 0003 112V 1.0KW 0004 112V 1.0KW 0005 112V 2.0KW 0006 112V 2.7KW 0007 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1GGP,3YPE..GS130,YS130199112-199512

main28011-54010i2LT#,2L..LS13#..4FC199110-199904

main28011-54070i2L..LS136..5F199110-199409

main28011-70020i1GFE,1JZGE..GS13#,JZS130,131199110-199904

main28011-76070i2JZGE..JZS133,135199110-199512

28100STARTER ASSY

main28100-46080i1JZGE..JZS130,131199110-199308

main28100-46100i1JZGE,2JZGE..JZS13#199110-199308

main28100-46120i2JZGE..JZS133,135199110-199308

main28100-46130i1JZGE..JZS130,131199308-199904

main28100-46180i2JZGE..JZS133,135199308-199512

main28100-46190i1JZGE,2JZGE..JZS13#199308-199904

main28100-54310i2L..LS136..5F199110-199409

sub28100-54380

main28100-54320i2L..LS136..5F199110-199409

main28100-54470i2LTE..LS130199903-199904

sub28100-54480

main28100-70030i1GFE..GS13#199110-199904

sub28100-70050

main28100-70040i1GFE..GS13#199110-199904

main28100-72030i3YPE..YS130199112-199512

main28100-72040i3YPE..YS130199112-199512

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GGP..GS130199112-199512

main28110-46080i1JZGE..JZS130,131199110-199308

main28110-46090i1JZGE..JZS130,131199110-199904

main28110-46130i1JZGE..JZS130,131199308-199904

main28110-70020i1GFE..GS13#199110-199904

main28110-72030i3YPE..YS130199112-199512

main28110-72040i3YPE..YS130199112-199512

main28115-54011i2L..LS136..5F199110-199409

main28115-54070i2L..LS136..5F199110-199409

28120YOKE ASSY, STARTER

main28120-15090i3YPE..YS130199112-199512

main28120-26071i1GGP,3YPE..GS130,YS130199112-199512

main28120-54070i2L..LS136..5F199110-199409

main28120-56081i2LT#,2L..LS13#..4FC199110-199904

main28120-66040i1JZGE..JZS130199612-199904

main28120-70020i1GFE,1JZGE..GS13#,JZS130,131199110-199904

main28120-74070i1JZGE,2JZGE..JZS13#199110-199612

main28120-76061i2JZGE..JZS133,135199110-199512

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i1JZGE,3YPE..JZS130,131,YS130199112

main90099-14092×2i1GFE,1JZGE..GS13#,JZS130,131199110

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15040i1GFE..GS13#199110-199904

main28130-15190i1JZGE..JZS130,131199110-199904

main28130-46090i1JZGE,2JZGE..JZS13#199110-199904

main28130-46120i2JZGE..JZS133,135199110-199512

main28130-54190i2L..LS136..5F199110-199306

sub90099-04207

main28130-54430i2L..LS136..5F199306-199409

main28130-70020i1GFE..GS13#199110-199904

main28130-72030i3YPE..YS130199112-199512

main28130-72040i3YPE..YS130199112-199512

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i3YPE..YS130199112-199512

main28140-26070i1GFE..GS13#199110-199904

main28140-54070i2L..LS136..5F199110-199409

main28140-70020i1GFE,1JZGE..GS13#,JZS130,131199110-199904

main28140-76060i2JZGE..JZS133,135199110-199512

main28140-76070i1JZGE,2JZGE..JZS13#199110-199904

main28140-77090i2L..LS136..5F199110-199409

28143SPRING, STARTER BRUSH

main28143-70020×4i1GFE,1JZGE..GS13#,JZS130,131199110

main28143-76060×4i1JZGE..JZS130,131199308

main90099-17112×4i1GGP,3YPE..GS130,YS130199112-199512

main90099-17115×4i2L..LS136..5F199110-199308

28150SWITCH ASSY, MAGNET STARTER

main28150-46080i1JZGE..JZS130,131199110-199308

main28150-46120i1JZGE..JZS130,131199110-199308

main28150-46140i2JZGE..JZS133,135199308-199512

main28150-46150i1JZGE..JZS130199612-199904

main28150-54310i2L..LS136..5F199110-199409

main28150-54320i2L..LS136..5F199110-199409

main28150-54430i2LTE..LS130199903-199904

main28150-70030i1GFE,1JZGE..GS13#,JZS130,131199308-199904

sub28150-22100

main28150-70040i1GGP..GS130199112-199512

main28150-72030i3YPE..YS130199112-199512

main28150-72040i3YPE..YS130199112-199512

28159COVER, STARTER PROTECTOR

main28159-46080i1GFE,1JZGE..GS13#,JZS130,131199110-199206

28159BCOVER, MAGNET SWITCH

main28159-10040i1GGP..GS130199112-199512

main28159-54170i2L..LS136..5F199110-199409

main28159-55050i2JZGE..JZS133,135199110-199512

main28159-56310i2LT#,2L..LS13#..4FC199110-199904

28160ARMATURE ASSY, STARTER

main28160-15091i3YPE..YS130199112-199512

main28160-26071i1GGP,3YPE..GS130,YS130199112-199512

main28160-54071i2L..LS136..5F199110-199409

main28160-54140i2LT#,2L..LS13#..4FC199110-199904

main28160-70021i1GFE,1JZGE..GS13#,JZS130,131199110-199904

main28160-74070i1JZGE,2JZGE..JZS13#199110-199904

main28160-76060i2JZGE..JZS133,135199110-199512

28160ABEARING, STARTER ARMATURE

main28253-45020i1GGP,3YPE..GS130,YS130199112-199512

main28253-54070i2L..LS136..5F199110-199409

main90099-10107i2LT#,2L..LS13#..4FC199110-199904

main90099-10113i1GGP,3YPE..GS130,YS130199112-199512

main90099-10119i2LT#,2L..LS13#..4FC199110-199904

main90099-10131i2L..LS136..5F199110-199409

main90099-10143i3YPE..YS130199112-199512

main90099-10144i3YPE..YS130199112-199512

main90099-10196i1JZGE..JZS130,131199110-199904

main90099-10197i1JZGE..JZS130,131199110-199904

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L..LS136..5F;1GGP,3YPE..GS130,YS130199112-199512

main28165-76070i2JZGE..JZS133,135199110-199512

main28165-77090i2LT#,2L..LS13#..4FC199110-199904

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i1GGP..GS130199112-199512

main28169-54070i2L..LS136..5F199110-199409

main28169-55050i1JZGE..JZS130,131199110

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i1GGP..GS130;2L..LS136..5F199110-199512

main28175-55050i1JZGE..JZS130,131199110-199904

main28175-56310i2L..LS136..5F199110-199409

28182STAY, STARTER COMMUTATOR END FRAME

main28182-46100i2JZGE..JZS133,135199110-199512

28199APROTECTOR, DUST STARTER

main28199-46080i2L..LS136..5F199110-199308

main28199-54190i2LT#,2L..LS13#..4FC199110-199904

main28199-72020i3YPE..YS130199112-199512

main28199-74110i2JZGE..JZS133,135199110-199512

28226STARTER KIT, BATTERY TERMINAL

main28226-54320i2LTE..LS130199903-199904

main28226-64200i2JZGE..JZS133,135199308-199512

sub28226-22050

main28226-70040i1GFE..GS13#199110-199904

main28226-76070i1JZGE..JZS130,131199110-199308

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i2LTE..LS130199903-199904

main28226-72010i1GGP..GS130;2L..LS136..5F199110-199512

main28226-74070i2JZGE..JZS133,135199110-199512

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i2L..LS136..5F;1GGP,2JZGE,3YPE..GS130,JZS133,135,YS130199112-199512

main28228-56080×5i2LT#,2L..LS13#..4FC199110-199904

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2L..LS136..5F;1GGP,3YPE..GS130,YS130199112-199512

main28229-56080i2LT#,2L..LS13#..4FC199110-199904

main28229-74070i1JZGE..JZS130,131199110-199904

28235PLUNGER, MAGNET SWITCH

main28235-17030i2LT#,2L..LS13#..4FC199110-199904

main28235-35080i1GGP..GS130;2L..LS136..5F199110-199512

main28235-55050i1JZGE..JZS130,131199110-199904

28252GEAR, STARTER IDLE

main28254-45020i1GGP,3YPE..GS130,YS130199112-199512

main28254-54070i2L..LS136..5F199110-199409

main28254-74070i1JZGE..JZS130,131199110-199904

main28254-77090i2L..LS136..5F199110-199409

2817615090SCREW, STARTER

main28176-15090

9009900270

main90099-00270

9009904448

main90099-04448

9009904449

main90099-04449

9009904450

main90099-04450

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9011910180

main90119-10180

9017908146

main90179-08146
