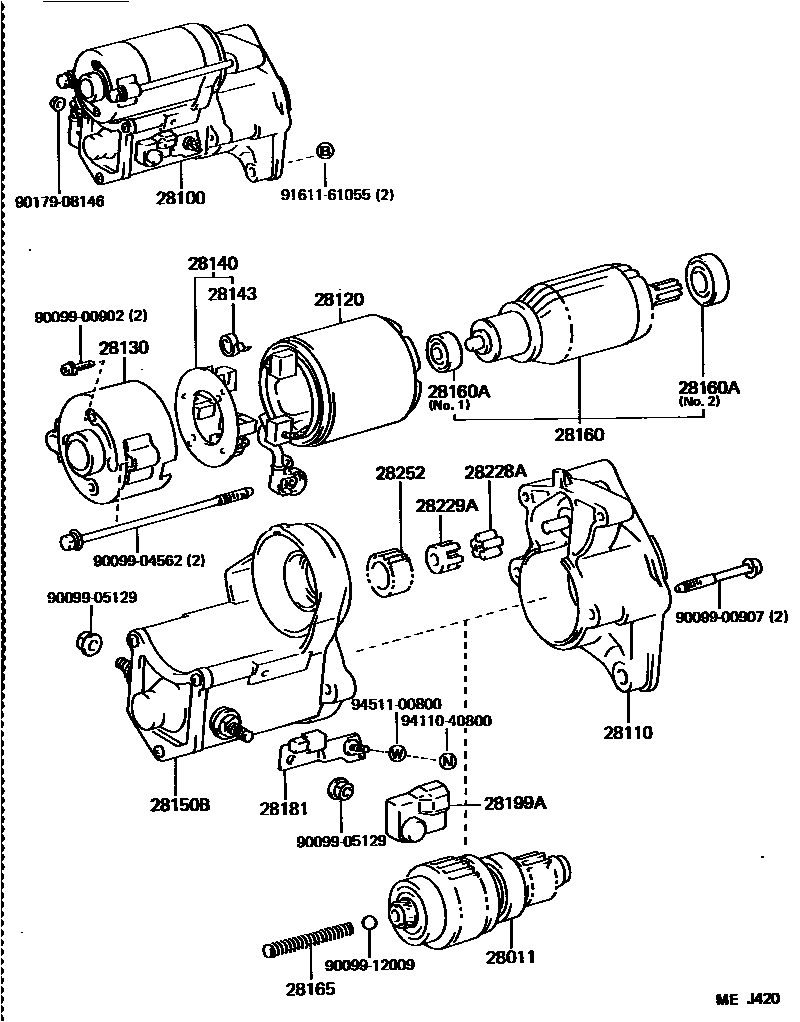

Toyota CROWN — STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 0.8KW 0004 112V 1.0KW 0005 112V 1.4KW 0006 112V 1.4KW 0007 112V 2.0KW 0008 112V 2.5KW,2.7KW 0009 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28011-35030i1UZFE..UZS131198908-199005

main28011-50030i1UZFE..UZS131199005-199110

main28011-54010i2L..LS136..MTM198809-198908

main28011-54070i2L,2LT..LS13#..MTM198709-199110

main28011-70020i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28011-76070i1JZGE,7MGE..JZS13#,MS13#199008-199110

28100STARTER ASSY

main28100-15040i1GGP..GS130198908-199110

main28100-42040i7MGE,MP..MS13#198709-199110

main28100-42050i7MGE..MS135;7MGE..MS137..WIB;7MGE..MS137..4HC..NOB198908-198910

main28100-46080i1JZGE..JZS13#199008-199110

main28100-46100i1JZGE,7MGE..JZS13#,MS13#199008-199110

main28100-50030i1UZFE..UZS131198908-199110

sub28100-50020

main28100-54052i2L,2LT#..LS130..HT,SED198809-198908

main28100-54061i2L,2LTHE..LS13#..4FC198709-198908

main28100-54070i2L,2LT..LS13#..MTM198709-199110

sub28100-54180

main28100-54140i2L,2LTHE..LS13#..4FC198908-199110

main28100-54220i2L,2LT#..LS13#198908-199110

sub28100-54210

main28100-70020i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28100-72030i3YP#..YS130198709-199110

main28100-72040i3YP#..YS130198709-199110

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GGP..GS130198908-199110

main28110-42040i7MGE,MP..MS13#198709-199110

main28110-42050i7MGE..MS13#198910-199008

main28110-45050i7MGE,MP..MS13#198709-198908

main28110-46080i1JZGE..JZS13#199008-199110

main28110-46090i1JZGE,7MGE..JZS13#,MS13#199008-199110

main28110-50030i1UZFE..UZS131198908-199005

main28110-50031i1UZFE..UZS131199005-199110

main28110-70020i1GFE,1GGZE,1GGE..GS13#198908-199110

main28110-72030i3YP#..YS130198709-199110

main28110-72040i3YP#..YS130198709-199110

main28115-54011i2L,2LTHE..LS13#..4FC198709-199110

main28115-54070i2L,2LT..LS13#..MTM198709-199110

28120YOKE ASSY, STARTER

main28120-15090i7MGE,MP,3YP..MS13#,YS130198709-198908

main28120-26071i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28120-54070i2L,2LT..LS13#..MTM198709-199110

main28120-56081i2L..LS136..MTM198809-198908

main28120-65030i1UZFE..UZS131198908-199110

main28120-70020i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28120-74070i1JZGE..JZS13#199008-199110

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i7MGE,MP..MS13#198709-199110

main28130-15040i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28130-15090i7MGE..MS13#198910-199008

main28130-15190i1JZGE..JZS13#199008-199110

main28130-46090i1JZGE,7MGE..JZS13#,MS13#199008-199110

main28130-50030i1UZFE..UZS131198908-199110

main28130-54060i2L..LS136..MTM198809-198908

sub28130-54430

sub90099-04207

main28130-70020i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28130-72030i3YP#..YS130198709-199110

main28130-72040i3YP#..YS130198709-199110

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i7MGE,MP,3YP..MS13#,YS130198709-198908

main28140-26070i1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130198709-199110

main28140-54070i2L,2LT..LS13#..MTM198709-199110

main28140-65020i1UZFE..UZS131199005-199110

main28140-70020i1GFE,1GGZE,1GGE,1JZGE..GS13#,JZS13#198908-199110

main28140-76070i1JZGE,7MGE..JZS13#,MS13#199008-199110

main28140-77090i2L,2LT..LS13#..MTM198908-199110

28143SPRING, STARTER BRUSH

main28143-70020×4i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main90099-17112×4i1GFE,1GGZE,1GGE,1JZGE..GS13#,JZS13#198908-199110

main90099-17115×4i2L,2LT..LS13#..MTM198709-199110

28150BSWITCH ASSY, MAGNETIC

main28150-15070i1GGP..GS130198908-199110

main28150-41060i7MGE,MP..MS13#198709-199110

main28150-45050i7MGE..MS135;7MGE..MS137..WIB;7MGE..MS137..4HC..NOB198908-198910

main28150-46080i1GFE,1GGZE,1GGE,1JZGE..GS13#,JZS13#199008-199110

main28150-46090i1JZGE,7MGE..JZS13#,MS13#199008-199110

sub28150-46120

main28150-50030i1UZFE..UZS131198908-199005

main28150-50031i1UZFE..UZS131199005-199110

main28150-54011i2L,2LTHE..LS13#..4FC198709-198908

sub28150-54190

main28150-54051i2L,2LT#..LS130..HT,SED198809-198908

sub28150-54221

main28150-54070i2L,2LT..LS13#..MTM198709-199110

sub28150-54110

main28150-54140i2L,2LTHE..LS13#..4FC198908-199110

sub28150-54190

main28150-54220i2L,2LT#..LS13#198908-199110

sub28150-54221

main28150-70020i1GFE,1GGZE,1GGE..GS13#198908-199008

main28150-72030i3YP#..YS130198709-199110

main28150-72040i3YP#..YS130198709-199110

28160ARMATURE ASSY, STARTER

main28160-15090i7MGE,MP,3YP..MS13#,YS130198709-198908

main28160-15091i3YPE..YS130199008-199110

main28160-26070i7MGE,MP,3YP..MS13#,YS130198709-198908

main28160-26071i1GGP,7MGE,3YPE..GS130,MS13#,YS130198908-199110

main28160-47040i2L,2LTHE..LS13#..4FC198709-198908

main28160-54070i2L,2LT..LS13#..MTM198709-198908

main28160-54071i2L,2LT..LS13#..MTM198908-199110

main28160-54140i2L,2LTHE..LS13#..4FC198908-199110

main28160-65030i1UZFE..UZS131198908-199110

sub28160-65031

main28160-70020i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198812

main28160-70021i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198812-198908

main28160-74070i1JZGE,7MGE..JZS13#,MS13#199008-199110

28160ABEARING, STARTER ARMATURE

main28253-45020i1GFE,1GGZE,1GGE..GS13#198908-199110

main28253-54070i2L,2LT..LS13#..MTM198709-199110

main90099-10107i2L,2LT..LS13#..MTM198709-198809

main90099-10113i1GGP,7MGE,MP,3YP#..GS130,MS13#,YS130198709-199110

main90099-10119i2L,2LTHE..LS13#..4FC198709-199110

main90099-10131i2L,2LT..LS13#..MTM198709-199110

main90099-10143i7MGE,MP,3YP..MS13#,YS130198709-198908

main90099-10144i7MGE..MS137..WIB;7MGE..MS137..4HC..NOB;7MGE,3YPE..MS135,YS130198908-198910

main90099-10196i1JZGE,7MGE..JZS13#,MS13#199008-199110

main90099-10197i7MGE..MS13#199008-199110

main90099-65030i1UZFE..UZS131198908-199110

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28165-76070i1JZGE,7MGE..JZS13#,MS13#199008-199110

main28165-77090i2L..LS136..MTM198809-198908

28181TERMINAL, STARTER

main28181-72030i3YP#..YS130198709-199110

28199APROTECTOR, DUST STARTER

main28119-54070i2L,2LT..LS13#..MTM198709-198806

main28199-15090i1UZFE..UZS131198908-199005

main28199-46080i1GFE,1GGZE,1GGE,1JZGE..GS13#,JZS13#199008-199110

main28199-50030i1UZFE..UZS131199005-199110

main28199-70020i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28199-70021i1GFE,1GGZE,1GGE..GS13#198908-199008

main28199-72020i3YP#..YS130198709-199110

main28199-72030i3YP#..YS130198709-199110

main28199-77090i2L,2LTHE..LS13#..4FC198709-198806

28228AROLLER, STARTER CLUTCH

main28228-26040×5i1GE,1GFE..GS131;1GE,1GFE,1GG#..GS13#..DLX,ROY,SAL,SALEX,SDX,SPE,STD198709-198908

main28228-56080×5i2L..LS136..MTM198809-198908

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i1GFE,1GGZE,1GGE..GS13#198908-199110

main28229-56080i2L..LS136..MTM198809-198908

main28229-74070i1JZGE,7MGE..JZS13#,MS13#199008-199110

28252GEAR, STARTER IDLE

main28251-15090i7MGE,3YPE..MS13#,YS130198910-199110

main28251-54070i2L,2LT..LS13#..MTM198709-199110

main28254-45020i7MGE,MP,3YP..MS13#,YS130198709-198908

main28254-54070i2L,2LT..LS13#..MTM198709-199005

main28254-74070i7MGE..MS13#199008-199110

main28254-77090i2L..LS136..MTM198809-198908

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

25 parts on this diagram · 9 diagrams in section
