Toyota CROWN — STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010iMTEU..MS120198308-198509

12V 0.8KW

main28011-26042i1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120198308-198708

12V 1.0KW,1.4KW

main28011-54010i2L,2LT#..LS12#198308-198708

12V 2.5KW

main28011-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

28100STARTER ASSY

main28100-15040i1GEU,1GG#,1GEJ..GS12#198308-198708

main28100-41050iMTEU..MS120198308-198509

main28100-41060i5MGEU,6MGEU,MPU..MS12#198308-198708

main28100-45050i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

main28100-54052i2L,2LT#..LS12#198308-198708

sub28100-54220

main28100-54061i2L,2LTE,2LTHE..LS12#..4FC198308-198708

sub28100-54220

main28100-54070i2L,2LT..LS12#..MTM198308-198708

sub28100-54180

main28100-72030i3YPU..YS120198308-198708

main28100-72040i3YPU..YS120198308-198708

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GEU,1GG#,1GEJ..GS12#198308-198708

12V 1.0KW

main28110-41050iMTEU..MS120198308-198509

12V 0.8KW

main28110-41060i5MGEU,6MGEU,MPU..MS12#198308-198708

12V 1.0KW

main28110-45050i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

12V 1.4KW COLD SPEC

main28110-72030i3YPU..YS120198308-198708

12V 1.0KW

main28110-72040i3YPU..YS120198308-198708

12V 1.4KW COLD SPEC

main28115-54011i2L,2LT#..LS12#198308-198708

12V 2.5KW

main28115-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-15010iMTEU..MS120198308-198509

12V 0.8KW

main28120-15090i5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120198308-198708

12V 1.4KW COLD SPEC

main28120-26071i5MGEU,6MGEU,MPU,3YPU..MS12#,YS120198308-198708

12V 1.0KW

main28120-47040i2L,2LT#..LS12#198308-198608

12V 2.5KW

main28120-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

main28120-56081i2L,2LT#..LS12#198608-198708

12V 2.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15010iMTEU..MS120198308-198509

12V 0.8KW

main28130-15020i5MGEU,6MGEU,MPU..MS12#198308-198708

12V 1.0KW

main28130-15040i1GEU,1GG#,1GEJ..GS12#198308-198708

12V 1.0KW

main28130-15090i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

12V 1.4KW COLD SPEC

main28130-54060i2L,2LT#..LS12#198308-198708

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

main28130-72030i3YPU..YS120198308-198708

12V 1.0KW

main28130-72040i3YPU..YS120198308-198708

12V 1.4KW COLD SPEC

28137WASHER, FELT, STARTER

main90099-02205i2L,2LT#..LS12#198308-198708

12V 2.5KW

main90099-02323i1G#,5MGEU,MPU,3YPU..GS12#,MS12#,YS120198308-198403

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010iMTEU..MS120198308-198509

12V 0.8KW

main28140-15090i5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120198308-198708

12V 1.4KW COLD SPEC

main28140-26070i1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120198308-198708

12V 1.0KW

main28140-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

main28140-77090i2L,2LT#..LS12#198308-198708

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112×4i1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120198308-198708

12V 1.0KW,1.4KW

main90099-17115×4i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15070i1GEU,1GG#,1GEJ..GS12#198308-198708

12V 1.0KW

main28150-37010iMTEU..MS120198308-198509

12V 0.8KW

sub28150-37011

main28150-41060i5MGEU,6MGEU,MPU..MS12#198308-198708

12V 1.0KW

main28150-45050i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

12V 1.4KW COLD SPEC

main28150-54011i2L,2LTE..LS12#..4FC198308-198708

12V 2.5KW

sub28150-54190

main28150-54051i2L,2LT#..LS12#198308-198708

12V 2.5KW,COLD SPEC

sub28150-54221

main28150-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

sub28150-54110

main28150-72030i3YPU..YS120198308-198708

12V 1.0KW

main28150-72040i3YPU..YS120198308-198708

12V 1.4KW COLD SPEC

28160ARMATURE ASSY, STARTER

main28160-15010iMTEU..MS120198308-198509

12V 0.8KW

main28160-15090i5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120198308-198708

12V 1.4KW COLD SPEC

sub28160-15091

main28160-26070i1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120198308-198708

12V 1.0KW

sub28160-26071

main28160-47040i2L,2LT#..LS12#198308-198708

12V 2.5KW

sub28160-54140

main28160-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

sub28160-54071

28160ABEARING, STARTER ARMATURE

main28253-45020i1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120198308-198708

12V 1.0KW,NO.1

main28253-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW,NO.1

main90099-10107i2L,2LT#..LS12#198308-198708

12V 2.5KW,NO.1

main90099-10113i1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,3YPU..GS12#,MS12#,YS120198308-198708

12V 1.0KW,NO.2

main90099-10119i2L,2LT#..LS12#198308-198708

12V 2.5KW,NO.2

main90099-10131i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW,NO.2

main90099-10143i5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120198308-198708

12V 1.4KW,NO.2,COLD SPEC

main90099-10144i5MGEU,6MGEU,MPU,MTEU,3YPU..MS12#,YS120198308-198708

12V 1.4KW,NO.1,COLD SPEC

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120198308-198708

12V 1.0KW,1.4KW,2.0KW

main28165-77090i2L,2LT#..LS12#198308-198708

12V 2.5KW

28181TERMINAL, STARTER

main28181-72030i3YPU..YS120198308-198708

12V 1.0KW,1.4KW

28199COVER, STARTER

main28199-72030i3YPU..YS120198308-198708

12V 1.0KW,1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120198308-198708

12V 1.0KW,1.4KW,2.0KW

main28228-56080×6i2L,2LT#..LS12#198308-198708

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2L..LS12#..MTM;1GEU,1GG#,1GEJ,2LT,5MGEU,MPU,MTEU,3YPU..GS12#,LS120,MS120,123,YS120198308-198708

12V 1.0KW,1.4KW,2.0KW

main28229-56080i2L,2LT#..LS12#198308-198708

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i1GEU,1GG#,1GEJ,5MGEU,6MGEU,MPU,MTEU,3YPU..GS12#,MS12#,YS120198308-198708

12V 1.0KW,1.4KW

main28254-54070i2L,2LT..LS12#..MTM198308-198708

12V 2.0KW

main28254-77090i2L,2LT#..LS12#198308-198708

12V 2.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

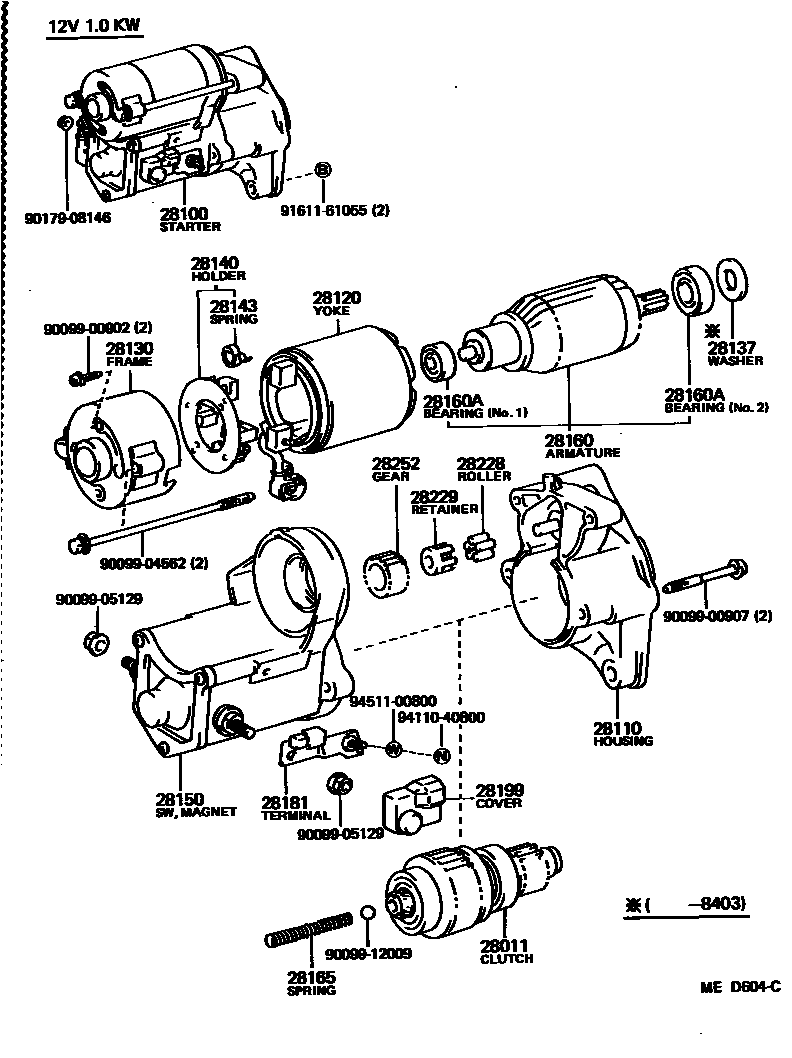

26 parts on this diagram · 7 diagrams in section
