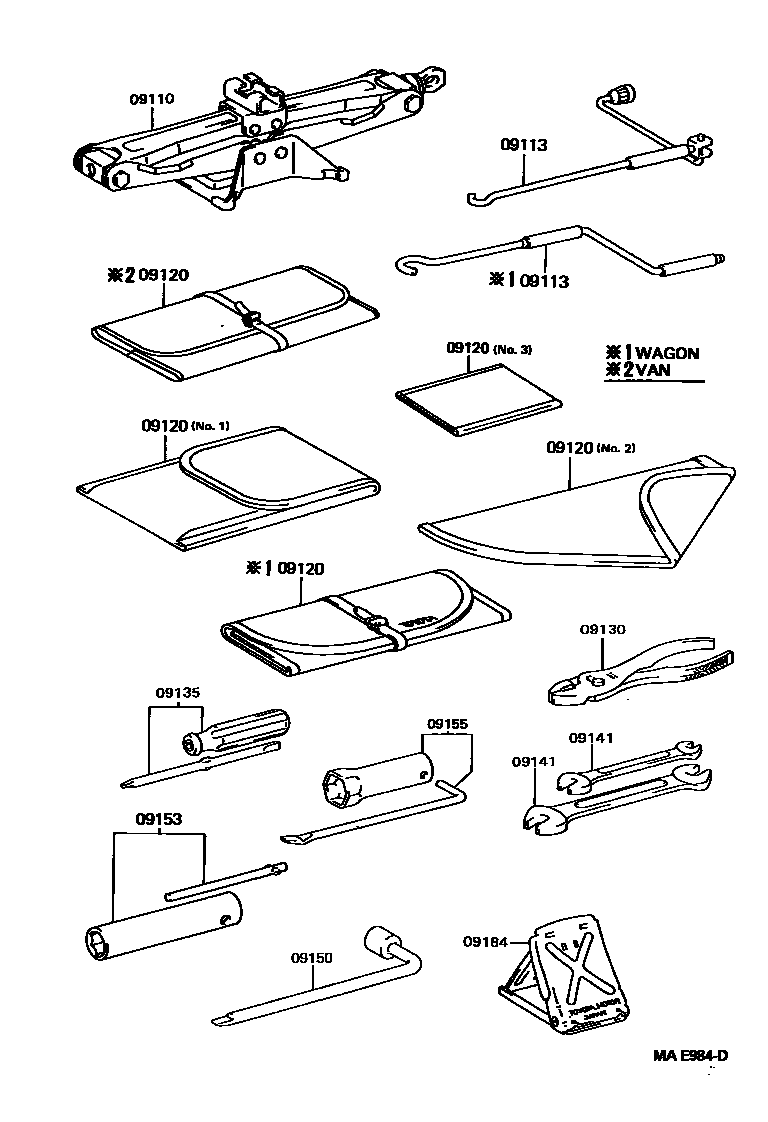

Toyota CROWN — STANDARD TOOL

09110JACK ASSY

main09111-30081i199110-199112

main09111-30090i199110

09113HANDLE, JACK

main09113-30030i199110

main09113-30040i199112

09120BAG, TOOL

main09120-12011i199110-199308

main09120-16030i199308

main09120-24010i199308-199512

main09120-28040i199308-199512

main09120-30030i199110

main09120-30050i199112-199512

09130PLIERS

main99913-11500i199112

09135DRIVER, SCREW

main99915-10700i199110-199112

09141SPANNER

main99914-10810i199110-199112

main99914-11214i199110-199112

09150WRENCH, HUB NUT BOX

main09150-40010i199110-199112

09153WRENCH, REAR COMBINATION LAMP

main09153-30010i199207-199512

09155WRENCH, SPARK PLUG

main09155-00100i199112-199512

main09155-41010i199112-199512

09184STOPPER, WHEEL

main09184-00010i199110-199112

10 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota CROWN

This section contains 10 genuine Toyota parts for the STANDARD TOOL system of the Toyota CROWN. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
