Toyota CROWN — STANDARD TOOL

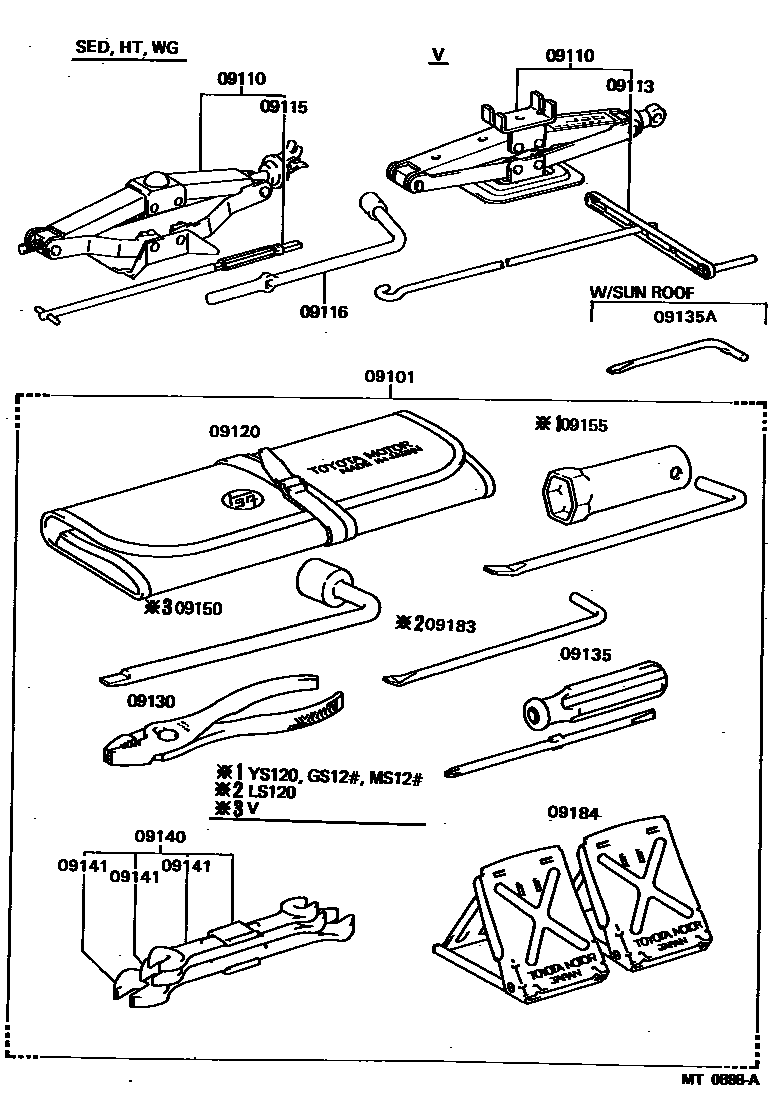

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-30080198308-198509

main09101-30090198308-198509

main09102-30010198308-198509

main09102-30011198308-198509

main09102-30013198308-198509

main09102-30015198308-198509

09110JACK ASSY

main09110-27040198308-198509

main09111-27040198509-198708

main09111-30060198509-198708

main09111-31060198509-198708

main09118-30010198308-198509

main09118-31010198308-198509

09113HANDLE, JACK

main09113-13021198308-198509

09115ROD SUB-ASSY, JACK HANDLE

main09115-24010198308-198708

main09115-27040198509-198708

09116LEVER, JACK HANDLE

main09116-16010198308-198708

main09116-35040198509-198708

09120BAG, TOOL

main09120-20030198509-198708

main09120-30020198308-198708

09130PLIERS

main99913-11500198308-198708

09135DRIVER, SCREW

main99915-10700198308-198708

09135ABIT, SCREW DRIVER

main09135-00012198308-198708

09140SPANNER SET

main09140-12011198308-198509

09141SPANNER

main99914-10810198308-198708

main99914-11012198308-198509

main99914-11214198509-198708

main99914-11417198308-198509

09150WRENCH, HUB NUT BOX

main09150-40010198308-198708

09155WRENCH, SPARK PLUG

main09155-00120198308-198708

main09155-41010198308-198708

main09155-41020198308-198708

main09155-43021198308-198708

main09155-70010198509-198708

09183WRENCH, WHEEL CAP

main09183-00010198308-198708

09184STOPPER, WHEEL

main09184-00010198308-198708

15 parts on this diagram · 2 diagrams in section

STANDARD TOOL for Toyota CROWN

This section contains 16 genuine Toyota parts for the STANDARD TOOL system of the Toyota CROWN. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, HANDLE, JACK, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE.
