Toyota CROWN — STANDARD TOOL

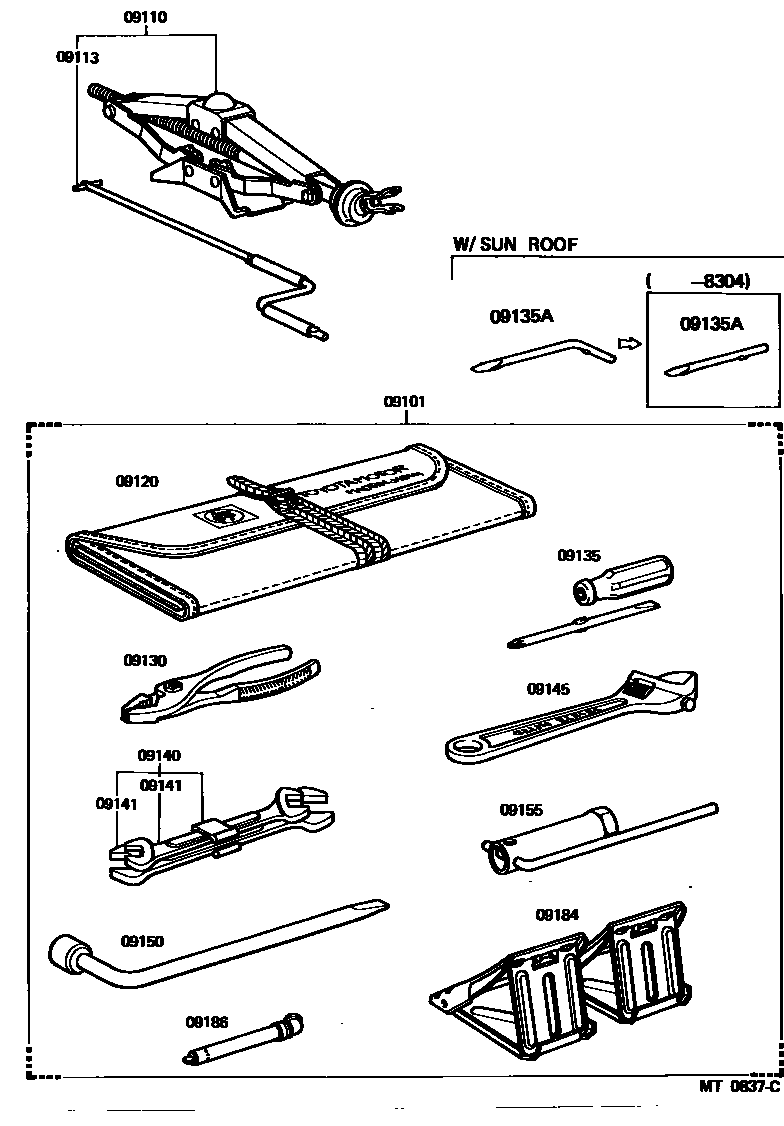

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-22070198205-198307

main09101-22071198205-198307

main09101-22073198205-198307

main09101-24010198108-198205

main09101-30040197909-198205

main09101-30041198005-198205

main09101-30050197909-198205

main09101-30051198005-198205

main09101-31020198205-198307

main09101-31021198205-198307

09110JACK ASSY

main09110-27040198212-198307

main09110-30050197909-198307

main09110-31040197909-198212

main09110-31050197909-198307

09113HANDLE, JACK

main09113-13021197909-198307

main09113-30010197909-198307

09120BAG, TOOL

main09120-20030198203-198307

main09120-22010197909-198203

09130PLIERS

main99913-11500198205-198307

main99913-21500197909-198205

09135DRIVER, SCREW

main99915-10700197909-198307

09135ABIT, SCREW DRIVER

main09135-00011198002-198304

main09135-00012198304-198307

09140SPANNER SET

main09140-00070197909-198205

main09140-27010198205-198307

09141SPANNER

main09141-00120197909-198205

main09141-00130197909-198205

main99914-11012198205-198307

main99914-11417198205-198307

09145WRENCH, MONKEY

main99911-10200197909-198307

09150WRENCH, HUB NUT BOX

main09150-40010197909-198307

09155WRENCH, SPARK PLUG

main09155-41010197909-198307

main09155-43012198205-198307

main09155-43020198108-198205

09184STOPPER, WHEEL

main09184-00010197909-198307

09186GAGE, TIRE

main09186-00010197909-198307

main09186-00060198005-198307

14 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota CROWN

This section contains 14 genuine Toyota parts for the STANDARD TOOL system of the Toyota CROWN. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS.
