Toyota CROWN — SPEAKER

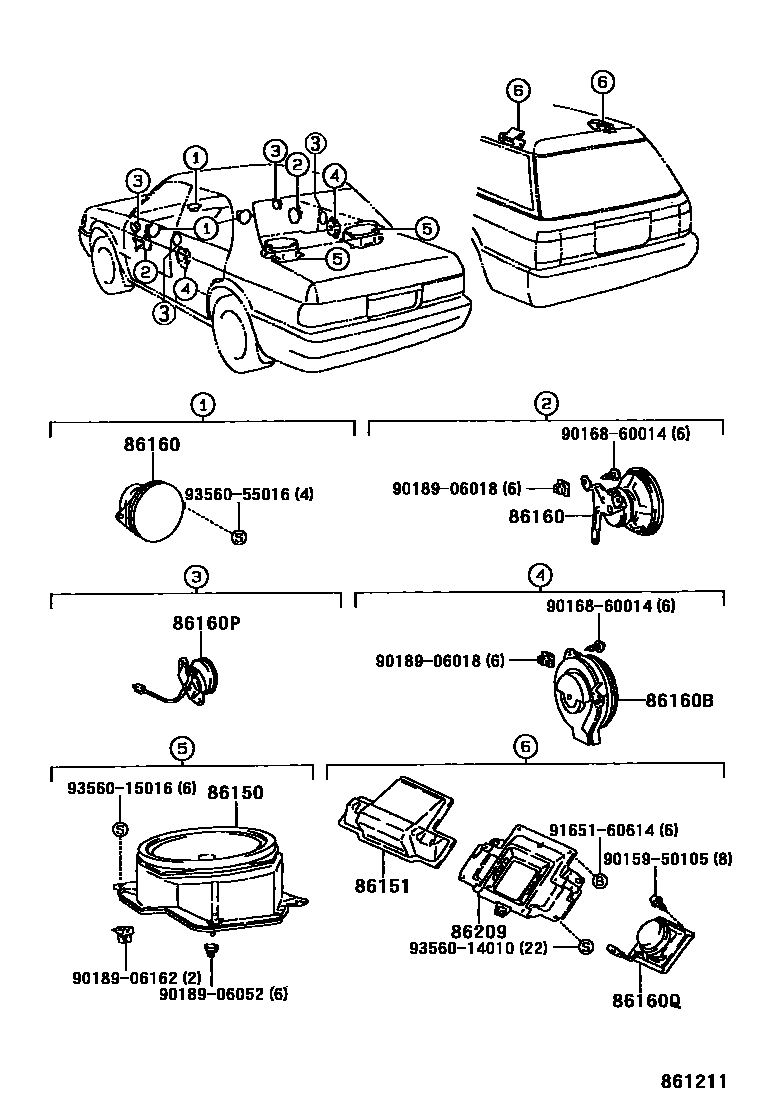

Parts diagram

86150SPEAKER ASSY, W/BOX, NO.1

main86160-30800i199110-199512

main86160-30810i199110-199512

86151BOX, SPEAKER

main86151-91701×2i199512-199704

86160SPEAKER ASSY, FRONT NO.1

main86160-30240i199308-199904

main86160-30450i199308-199512

main86160-30820i199110-199904

main86160-30830i199110-199904

main86160-30840i199110-199904

main86160-30850i199110-199904

86160BSPEAKER ASSY, REAR

main86160-30750i199110

main86160-30760i199110

main86160-30770i199110

main86160-30780i199110

86160PSPEAKER ASSY, FRONT NO.2

main86160-30860i199512-199704

main86160-30870i199512-199704

86160QSPEAKER ASSY, ROOF

main86160-31010×2i199512-199704

86209BRACKET SUB-ASSY, SPEAKER

main86209-91701×2i199512-199704

9015950105

main90159-50105

9016860014

main90168-60014

9018906018

main90189-06018

9018906052

main90189-06052

9018906162

main90189-06162

9165160614

main91651-60614

9356014010

main93560-14010

9356015016

main93560-15016

9356055016

main93560-55016

16 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CROWN

This section contains 16 genuine Toyota parts for the SPEAKER system of the Toyota CROWN. Key components include: SPEAKER ASSY, W/BOX, NO.1, BOX, SPEAKER, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
