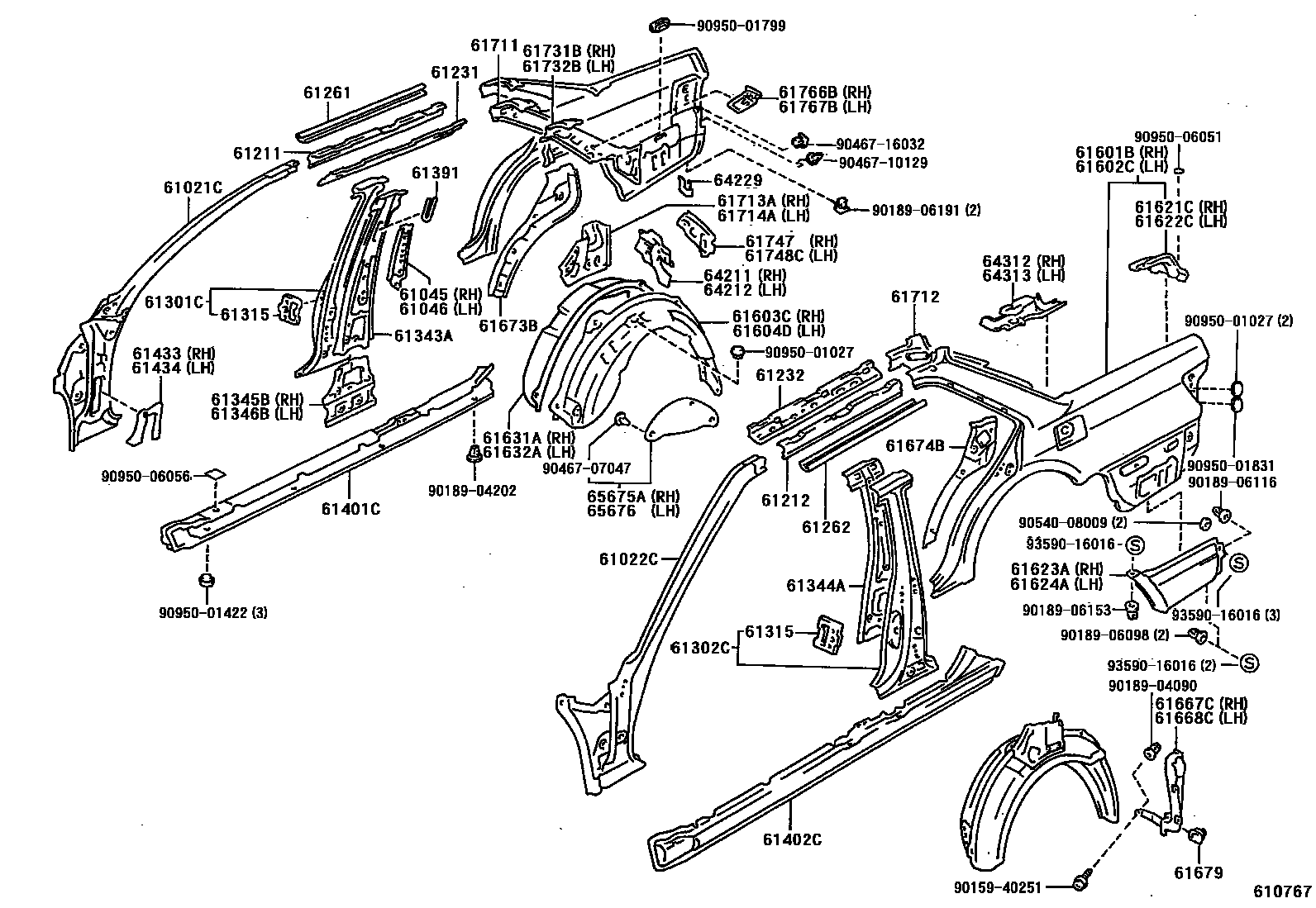

Toyota CROWN — SIDE MEMBER
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH
61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61391SPACER, CENTER BODY PILLAR, INNER
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61402CPANEL SUB-ASSY, ROCKER, OUTER LH
61433PANEL, ROCKER, INNER RH
61434PANEL, ROCKER, INNER LH
61601BPANEL SUB-ASSY, QUARTER, RH
main61601-30820iGS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)199110-199512
61602CPANEL SUB-ASSY, QUARTER, LH
main61602-3A360iGS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)199110-199512
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61667CSEAL, QAURTER PANEL, NO.1
main61667-30050iGS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)199110-199512
61668CSEAL, QUARTER PANEL, NO.2
main61668-30070iGS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)199110-199512
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61679RETAINER, REAR WHEEL OPENING EXTENSION
main61679-30020×4iGS131;GS130,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)199110-199512
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61713AEXTENSION, ROOF SIDE, OUTER RH
61714AEXTENSION, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
64229STAY, REAR SEAT CUSHION SUPPORT
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
65675ASEAL, WHEEL HOUSE, FRONT RH
65676SEAL, WHEEL HOUSE, FRONT LH
9015940251
main90159-40251
9018904090
main90189-04090
9018904202
main90189-04202
9018906098
main90189-06098
9018906116
main90189-06116
9018906153
main90189-06153
9018906191
main90189-06191
9046707047
main90467-07047
9046710129
main90467-10129
9046716032
main90467-16032
9054008009
main90540-08009
9095001027
main90950-01027
9095001422
main90950-01422
9095001799
main90950-01799
9095001831
main90950-01831
9095006051
main90950-06051
9095006056
main90950-06056
9359016016
main93590-16016
72 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota CROWN
This section contains 97 genuine Toyota parts for the SIDE MEMBER system of the Toyota CROWN. Key components include: CAP, TEE NUT(FOR 6MM), BRACKET SUB-ASSY, SPARE WHEEL CARRIER, PLATE, JACK HANDLE CLAMP, PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH.
