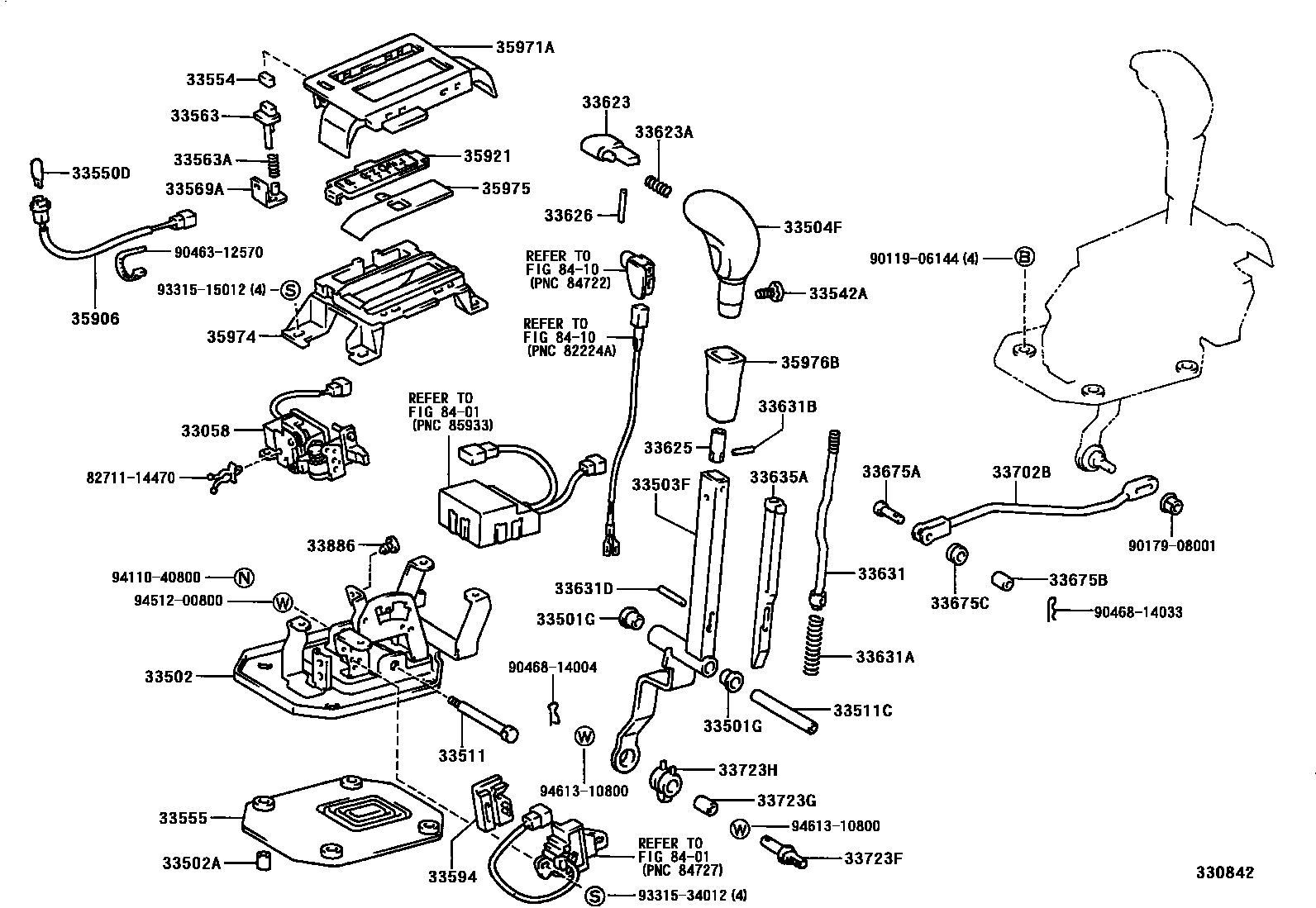

Toyota CROWN — SHIFT LEVER & RETAINER

Parts diagram

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-30070i199110

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003×2i199110

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-30350i199110

main33502-30360i199110-199205

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065×4i199110

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-30070i199110

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22111-J0i199110-199308

DARK BLUE,TRIM8#

main33504-24010-E2i199110-199512

QUARTZ,TRIM4#

main33504-24010-W3i199110-199308

main33542-30230-B0i199110-199512

main33542-30230-E1i199110-199512

main33542-30230-J1i199110-199512

main33542-30240-B0i199512

SHAD0W GRAY,TRIM1#

main33542-30240-E0i199308-199512

QUARTZ,TRIM4#

main33542-30240-J0i199512

DARK BLUE,TRIM8#

main33542-30240-J2i199512

DK.BLUE,TRIM8#

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-30390i199110

33511CCOLLAR (FOR CONTROL SHAFT)

main90387-08142i199110

33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)

main90159-50312×2i199110

33550DBULB, POSITION INDICATOR LAMP

main99132-12034i199110

33554CAP, SHIFT LEVER

main33554-30030i199110-199210

33555BOOT, SHIFT LEVER

main33555-30161i199110

33563BUTTON, SHIFT LOCK RELEASE

main33563-30010i199110

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06058i199110

33569AGUIDE, SHIFT LOCK RELEASE BUTTON

main33569-30040i199110

33594PLATE, SHIFT LOCK (FOR FLOOR SHIFT)

main33594-30070i199110

33623BUTTON, SHIFT LEVER KNOB

main33623-30110-B0i199110-199512

SHADOW GRAY,TRIM1#

main33623-30110-E1i199512

DARK ROSE,TRIM4#

main33623-30110-J0i199110-199512

DARK BLUE,TRIM8#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009i199110

33625SLEEVE, SHIFT LEVER KNOB

main33625-30030i199110

33626STOPPER, SHIFT LEVER BUTTON

main90256-02004i199110

33631ROD, DETENT

main33631-30130i199110

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-08147i199110

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90256-02003i199110

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04003i199110

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-30100i199110

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010i199110-199308

main90240-08120i199308

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005i199110

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17023i199110

main90480-17177i199110

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30310i199110

main33702-30320i199110

main33702-30330i199110

main33702-30340i199110-199409

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010i199110-199308

main33723-30070i199308

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005i199110

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-30040i199308

main90480-17177i199110-199308

33886STOPPER, SHIFT LEVER

main33886-30010i199110

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-30050i199110

35921PLATE, CONTROL POSITION INDICATOR

main35921-30350i199110

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-30220i199110-199205

main35971-30240i199110

35974HOUSING, POSITION INDICATOR, LOWER

main35974-30070i199110

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30180i199110

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-30060-B0i199110-199512

SHADOW GRAY,TRIM1#

main35976-30060-E0i199110-199512

QUARTZ,TRIM4#

main35976-30060-J0i199110-199512

DK.BLUE,TRIM8#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

8271114470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14470

9011906144

main90119-06144

9017908001

main90179-08001

9046312570

main90463-12570

9046814004

main90468-14004

9046814033

main90468-14033

9331515012

main93315-15012

9331534012

main93315-34012

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

52 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota CROWN

This section contains 60 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota CROWN. Key components include: BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, BUSH (FOR FLOOR SHIFT CONTROL SHAFT), PLATE SUB-ASSY, SHIFT LEVER, COLLAR (FOR FLOOR SHIFT SETTING), LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT).
