Toyota CROWN — PARTIAL ENGINE ASSEMBLY

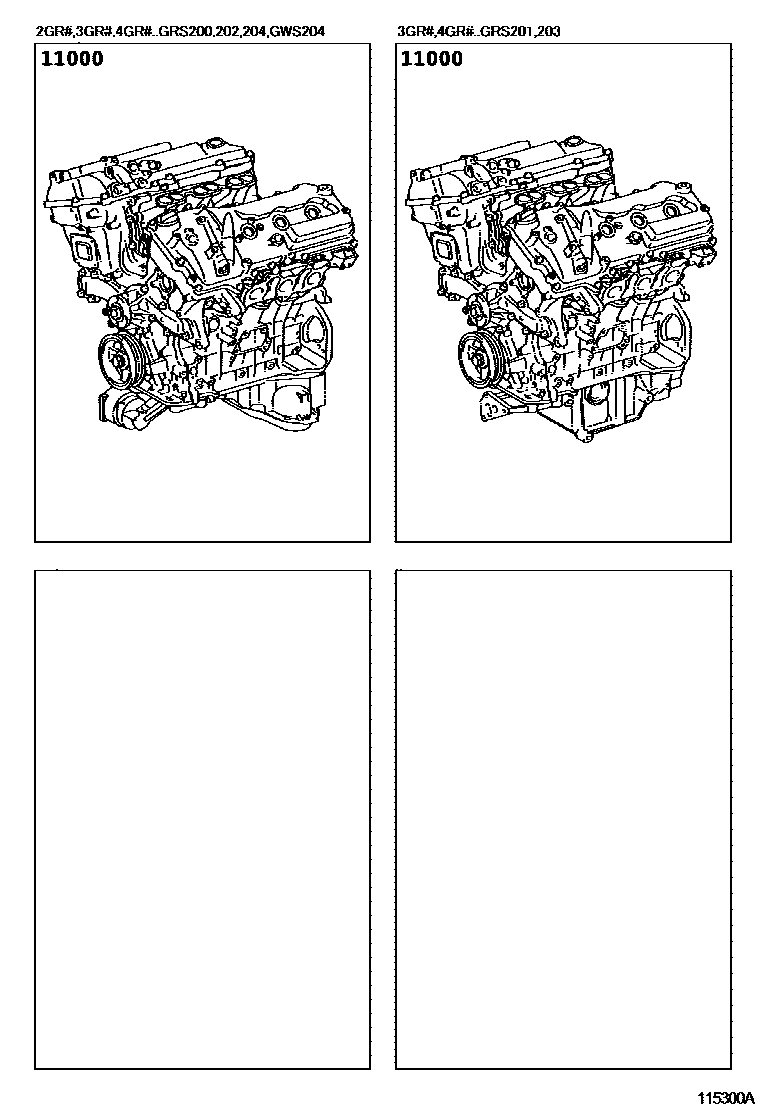

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31A92i201107-201212

main19000-31B11i200802-201002

main19000-31B12i201110-201212

main19000-31B21i201107-201212

main19000-31D82i200805-201002

main19000-31D83i201110-201212

main19000-31F90i200802-201002

main19000-31G00i201002-201106

main19000-31G10i200802-201002

main19000-31G20i200802-201002

1 parts on this diagram · 1 diagram in section
