Toyota CROWN — PARTIAL ENGINE ASSEMBLY

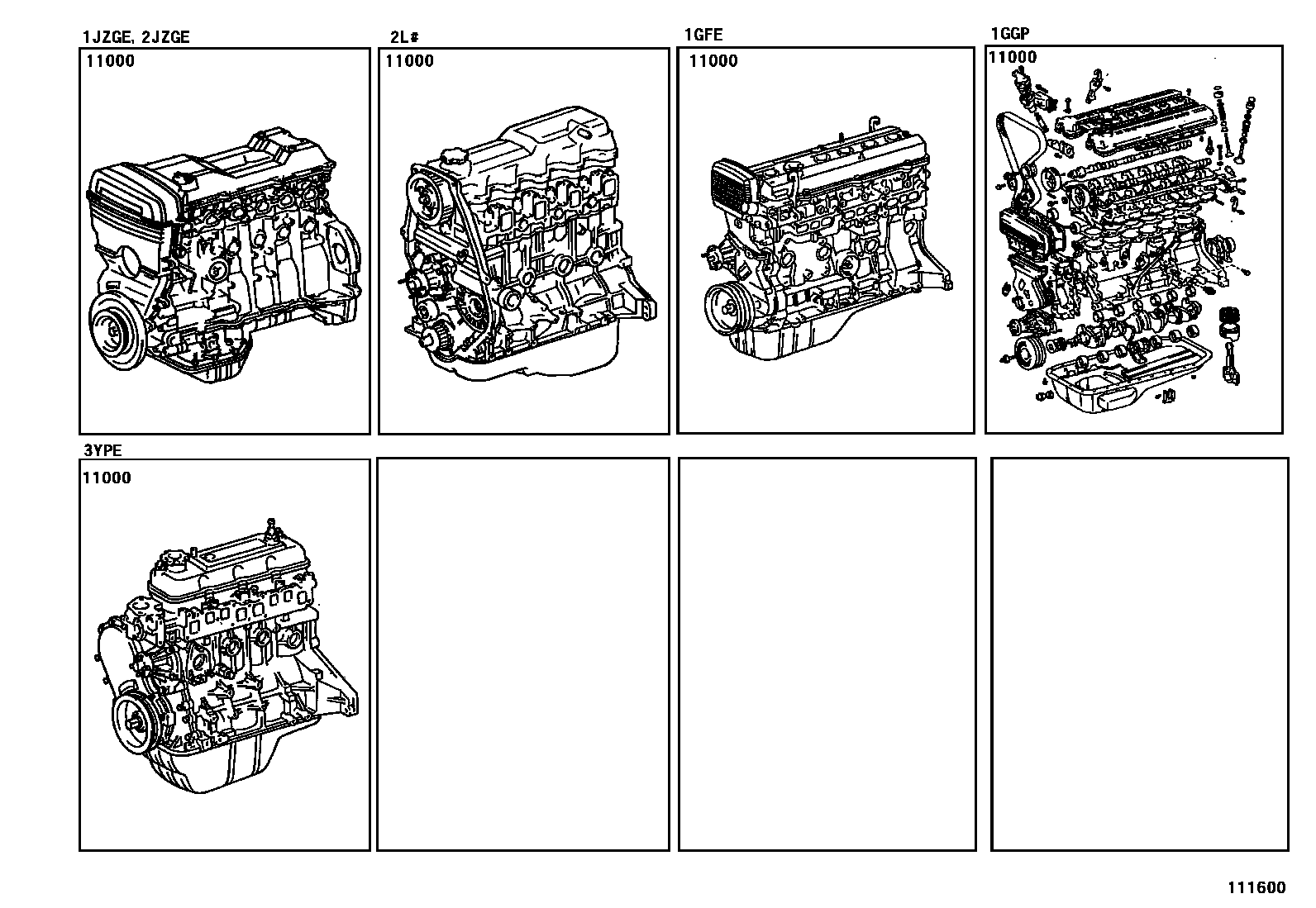

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-46031i199110-199210
sub87245-3A850
main19000-46032i199210-199604
main19000-46034i199604-199605
main19000-46035i199605-199609
sub19000-46036
sub90402-16015
sub90430-16012
main19000-46050i199110-199210
sub87245-3A860
main19000-46051i199210-199512
sub19000-46053
sub90402-16015
sub90430-16012
main19000-46260i199609-199707
main19000-46261i199707-199809
main19000-46262i199809-199904
main19000-54890i199110-199409
main19000-5B020i199110-199308
main19000-5B280i199308-199904
main19000-70222i199110-199805
main19000-70223i199805-199904
main19000-70260i199112-199412
main19000-70261i199412-199512
sub19000-70262
main19000-73690i199112-199308
sub19000-73691
main19000-73810i199308-199512
sub19000-73811

1 parts on this diagram · 1 diagram in section
