Toyota CROWN — PARTIAL ENGINE ASSEMBLY

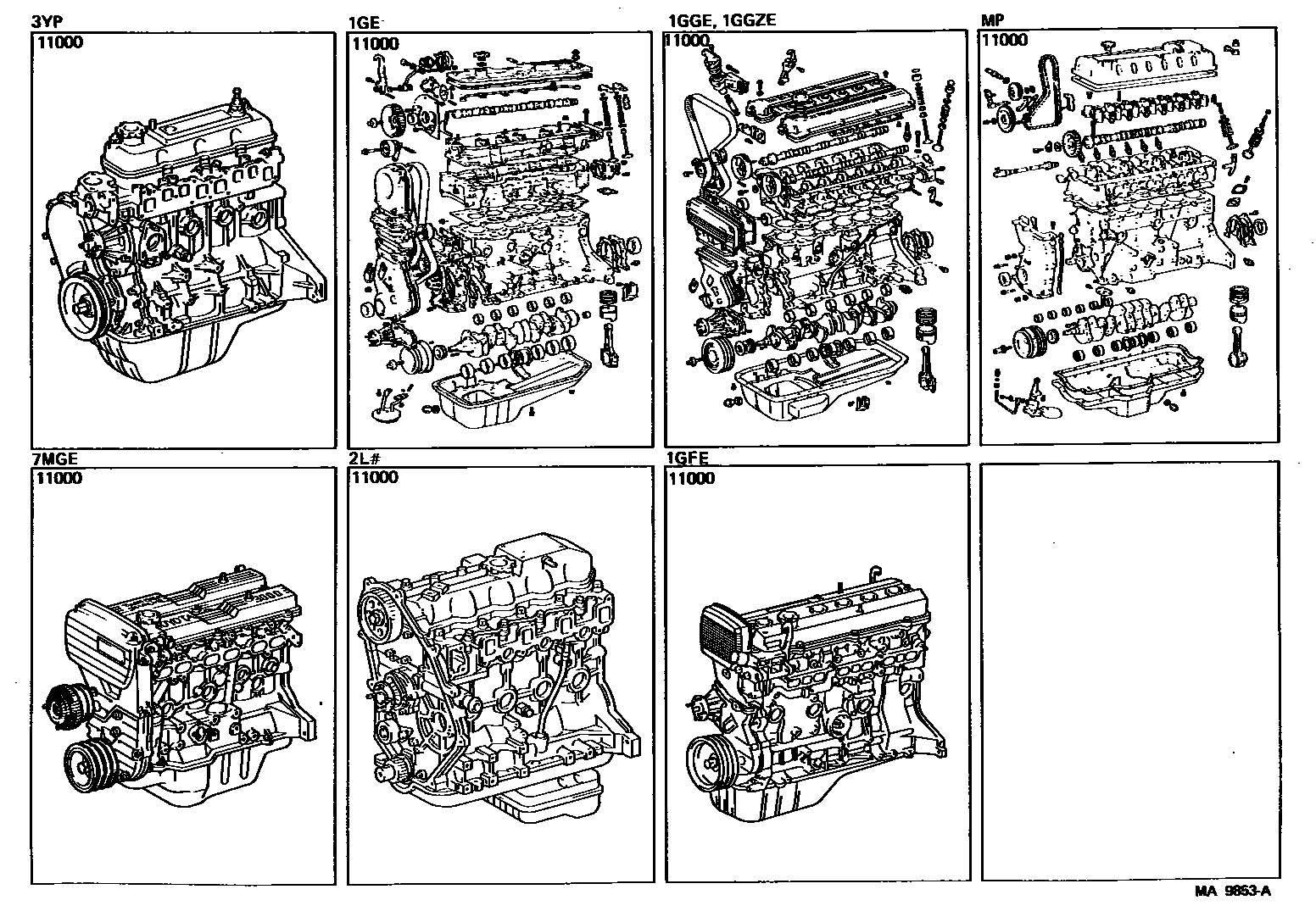

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-41300i198709-198908
main19000-42150i198709-198903
main19000-42151i198903-198908
sub19000-42320
main19000-42160i198709-198903
main19000-42161i198903-198908
main19000-42300i198908-199110
main19000-42310i198908-199110
main19000-46030i199008-199109
sub11494-46010
sub11496-46010
sub90159-60386
main19000-46031i199109-199110
sub19000-46032
sub87245-3A850
main19000-50030i198908-199110
sub19000-50031
main19000-54640i198709-198805
sub13405-54060
sub90105-12109
main19000-54641i198805-198807
main19000-54642i198807-198908
main19000-54650i198709-198805
sub13405-54060
sub32101-30052
sub32116-35010
sub32117-35010
sub90105-12014
sub90105-12109
main19000-54661i198805-198807
main19000-54662i198807-198908
main19000-54670i198709-198805
sub13405-54060
sub90105-12109
main19000-54671i198805-198807
main19000-54672i198807-198908
main19000-54680i198709-198805
sub32101-30052
sub32116-35010
sub32117-35010
sub90105-12014
main19000-54681i198805-198807
main19000-54682i198807-198908
main19000-54890i198908-199110
main19000-5B010i198908-199110
main19000-5B020i198908-199110
main19000-70100i198709-198801
main19000-70101i198801-198807
main19000-70102i198807-198908
sub19000-70103
main19000-70150i198709-198805
main19000-70151i198805-198807
main19000-70152i198807-198809
main19000-70220i198809-199005
sub17303-70051
main19000-70221i199005-199105
main19000-70222i199105-199110
sub19000-70223
main19000-70230i198809-199110
sub19000-70231
main19000-70250i198908-199110
sub19000-70260
main19000-73540i198709-198908
sub19000-73541
main19000-73690i198908-199110
sub19000-73691
main19000-88324i198709-198805
main19000-88325i198805-198809
main19000-88326i198809-199110

1 parts on this diagram · 2 diagrams in section
