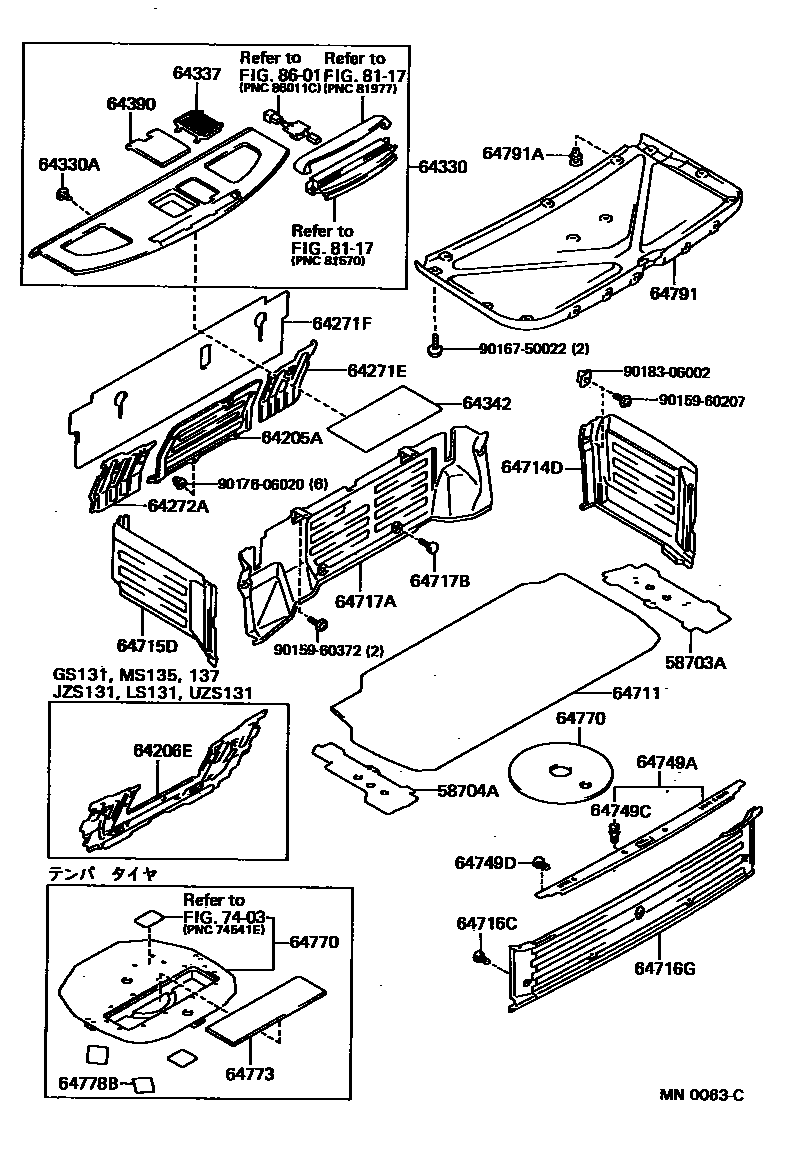

Toyota CROWN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64205ACOVER SUB-ASSY, ROOM PARTITION
64206EPANEL SUB-ASSY, ROOM PARTITION
64271EPANEL, ROOM PARTITION
64271FTRIM, ROOM PARTITION
64272APANEL, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
SABLE,TRIM4#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
main64330-30870-02iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG); GS131..HT..4HC..HTWC198908-199110
main64330-30870-04iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG); GS131..HT..4HC..HTWC198908-199110
main64330-30870-06iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG); GS131..HT..4HC..HTWC198908-199110
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08015-12×3iGS130,MS130..SDX..(LPG,TWLPG); GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX198709-199110
MAROON,TRIM3#
SABLE,TRIM4#
main90467-08015-54×3iGS130,MS130..SDX..(LPG,TWLPG); GS131,JZS131,LS130,131,MS135..HT..(4FC,5F)..SALEX198709-199110
BLUE,TRIM8#
64337GARNISH, PACKAGE TRAY TRIM, RH
main64337-30130-02iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX)198909-199110
MAROON,TRIM3#
main64337-30130-04iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX)198909-199110
BLUE,TRIM8#
main64337-30130-06iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX)198909-199110
SABLE,TRIM4#
64342COVER, PACKAGE TRAY TRIM, UNDER
main64342-30020iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131..HT..TWC;GS131..4HC..SALEX;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX)..(HTWC,TDE,TWC)198908-199110
64390BASE ASSY, PACKAGE TRAY TRIM POCKET
main64390-30020-02iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX)198909-199110
main64390-30020-04iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX)198909-199110
main64390-30020-06iGS131,JZS131,LS131,MS135..HT..(4FC,5F)..SALEX; GS131..4HC..(ROY,SALEX);GS131..HT..(4FC,5F)..ROY;JZS131,MS13#,UZS131..ROY,ROYG;GS131,LS131..SED..(4FC,5F)..(ROY,SALEX)198909-199110
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-30260-03iGS130,131,LS130..(HT,SED)..(SAL,SALEX,SPE,SSL); GS130,LS130,YS130..STD;GS130..(4HC,5F)..DLX..HTWC; GS130..SED..(4HC,5F)..SDX..HTWC;GS130..SED..(4FC,4H)..(DLX,SDX)..HTWC;GS130,LS130,MS130,YS130..SED..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE)198709-198908
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
main64711-30261-03iGS130,LS130,YS130..SED..(DLX,SDX); GS130,LS130,YS130..STD; GS131,JZS131,LS131,MS135..SAL,SALEX,SPE,SSL198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64714-30100-03iGS130,LS130,YS130..SED..(DLX,SDX); GS131,LS131;JZS131..SSL;JZS131,MS13#,UZS131..NOB198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-30110-03iGS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL)..NOB; GS130..(4HC,5F)..DLX..HTWC; GS130..SED..(4HC,5F)..SDX..HTWC;GS130..SED..(4FC,4H)..(DLX,SDX)..HTWC;GS130,LS130..SED..(DLX,SDX)..(DSL,EFI,TD,TDE)198709-198908
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05004-33×5iGS130,LS130,YS130..SED..(DLX,SDX); GS130,LS130,YS130..STD; GS131,JZS131,LS131,MS13#,UZS131198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-30100-03iGS130,LS130,YS130..SED..(DLX,SDX); GS130,LS130,YS130..STD; GS131..SAL198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,4#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-30120-03iGS130,LS130..SED..(DLX,SDX)..(DSL,HTWC,TD,TDE); GS130,LS130..STD; GS131..SAL198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,4#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-07080-03×4iGS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL); GS130,LS130..STD;GS130..(4HC,5F)..DLX..HTWC; GS130..SED..(4HC,5F)..SDX..HTWC;GS130..SED..(4FC,4H)..(DLX,SDX)..HTWC;GS130,LS130..SED..(DLX,SDX)..(DSL,EFI,TD,TDE)198709-198908
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-30050-03iGS130,LS130,YS130..SED..(DLX,SDX); GS130,LS130,YS130..STD; GS131,JZS131,LS131,MS13#,UZS131..SED198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
GRAY,TRIM3#,4#,8#
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
main90467-06059×4iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED; GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110
64749DCLIP(FOR LUGGAGE COMPARTMENT DOOR STRIKER COVER)
GRAY,TRIM3#,4#,8#
64770COVER ASSY, SPARE WHEEL
main64770-30050iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)199008-199110
main64770-30070iGS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)198709-199108
main64770-30071iGS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,HTWC,SPC,TD,TDE,TWC)199108-199110
64773COVER, SPARE WHEEL, NO.2
main64773-30020iGS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)198709-199110
64778BPROTECTOR, SPARE WHEEL
main64778-14020×3iGS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC)198709-199110
64791COVER, BACK DOOR TRIM
main64791-30010-03iGS130,LS130,YS130..SED..(DLX,SDX); GS130,LS130,YS130..STD; GS131,JZS131,LS131,MS13#..SED; UZS131..NOB198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
GRAY,TRIM3#,4#,8#
64791ACLIP(FOR BACK DOOR TRIM)
main90467-07059-03×14iGS130,LS130,YS130..SED..(DLX,SDX); GS130,LS130,YS130..STD; GS131,JZS131,LS131,MS13#..HT; GS131,JZS131,LS131,MS13#..SED; UZS131..NOB; UZS131..WIB198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8117CENTER STOP LAMP
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
9015960207
main90159-60207
9015960372
main90159-60372
9016750022
main90167-50022
9017606020
main90176-06020
9018306002
main90183-06002
35 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CROWN
This section contains 35 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CROWN. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, COVER SUB-ASSY, ROOM PARTITION, PANEL SUB-ASSY, ROOM PARTITION, PANEL, ROOM PARTITION.
